Low Noise Generator 800kw up to 1500kw of FMW power is the biggest and
gigantic silent diesel generator power
with 8, 12 or even 16 cylinders diesel

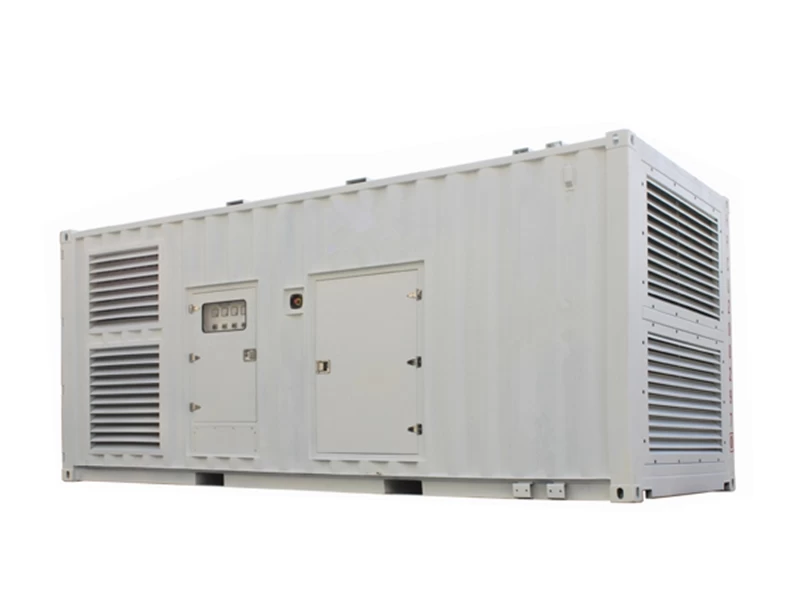

generator engine. The soundproof canopy of this kind of silent generator is frequently
modified from a used or brand-new container, so that it’s also called as container type generator. They are made
for a big scale factory or an enormous building such as shopping malls, towns,
big villages and so on.

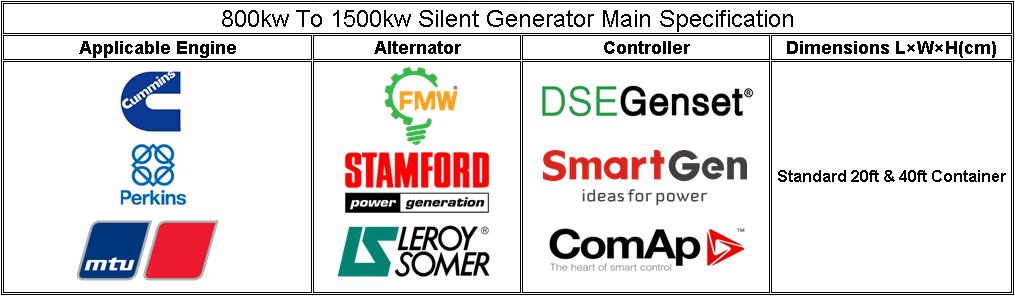

1. Silent Diesel Generator (800kw-1500kw)

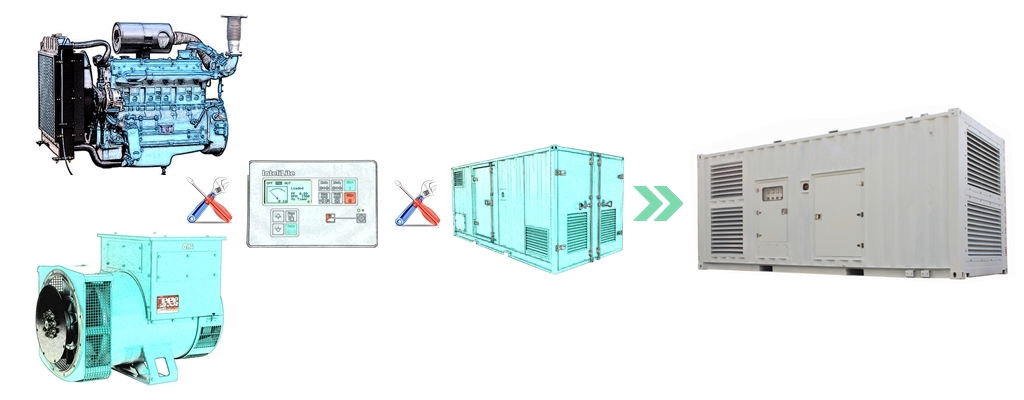

2. Generator Supply Scope
|
Standard
Parts
|
Optional
Parts
|
|
Brand-new
Ricardo,Lijia,and Styer series diesel engine
|
Original Stamford,Leroy Somer and Mecc Alte
alternator
|
|
Brand-new Brushless MCA
alternator(Class H,IP23,AVR)
|
Automatic Transfer Switch (A.T.S) generator
control system
|
|
Heavy duty steel base
frame with 8 hours fuel tank
|
Paralleling generator control system
|
|
2MM-4MM steel
soundproof canopy for silent generator
|
Customized fuel tank bigger than 8 hours running
|
|
Safety guard radiator
with protection net
|
Heavy duty 50℃brass Radiator
|
|
Heavy duty rubber
anti-vibration damper
|
Deepsea7320,Smartgen6110 or ComAp AMF25 generator
controller
|
|
Heavy duty industrial
type silencer with flexible mouth
|
Water heater/lub-oil heater for extremely cold weather
|
|
State-standard high
performance non-maintenance battery
|
Electronics such as ABB,Schneider and Siemens
|
|
Deepsea6020,Smartgen420
or ComAp MRS11 generator controller
|
Cumtomized super silent canopy with high-density
sponge
|
|
Low oil
pressure,overheating,overload,and overspeed protections
|
Special parts such as
stainless-steel key,oil drain pump,dust filter etc.
|
|
State-standard electronics
such as cable, circuirt breaker, relay, lamp, fuse, stop device.
|
Extra engine and
alternator spares as filter,gasket,nozzle,AVR,rectifier.
|
|
Tool kit with operation
manuals of generator, engine, and alternator
|
Deluxe tool kit box
with varieties of tools for maintenance.
|
3. Criterion And Certificate
4. Advantage Of Our Diesel Generator
① High-Standard materials and spares.
● From screws,bearings,noise sponges,wires,vibration-absorber,relay,AVR,diode,gauges,pines, to copper-wire, steel plates,meters,controllers,battery,AMF,ATS and so on.
② High-Educated and Experienced Research And Development team
● With a highly-professional research and development team,not only can FMW power manufactuer standard reliable quality gensets but also FMW power can design different kinds of gensets such as super silent generator,container power station,intelligent generator according to client's unique demands.
③ Reliable Performance And Criterion
Voltage Regulation:
● Free-load voltage setting range≥(95-105)%Un
● Steady-state voltage regulation rate≤±1.0﹪
● Transient-state voltage regulation rate≤+20﹪/-15%
● Voltage recovery time≤1.0S
● Voltage fluctuation ratio≤±0.5﹪
● Cold/hot-state voltage ratio≤2﹪
Frequency/Speed Undulation:
● Change load from 0-100%, Frequency/Speed Droop Ratio within 5%.
● Load from 25-100%, any steady load Frequency/Speed undulation within 0.25%
Telecom Effect Factor:
● TIF( MA MG1-22) better than 50
● THF( BS EN60034) better than 2%
Criterion:
● ISO8528, GB/T2820
● EN12601:2001, EN60034-22:1997, EN60204-1:2006
● ISO9001:2008 Quality Control System
● Insulating Resistance Tested in accordance with GB5226.1-2002-19.3
● Withstand-Voltage Tested in accordance with GB755-2000-8.1(with 1500V by 60S)
● All electric spares tested in accordance with GB5226.1-2002-19.6
● Mechanical Security tested in accordance with GB/T820.8-2002-6.3
● Fire-Proof tested in accordance with GB/T2820.8-2002-6.4/6.5
● All generator sets are inspected strictly by 25%,50%,75%,100% and 110% Load.
