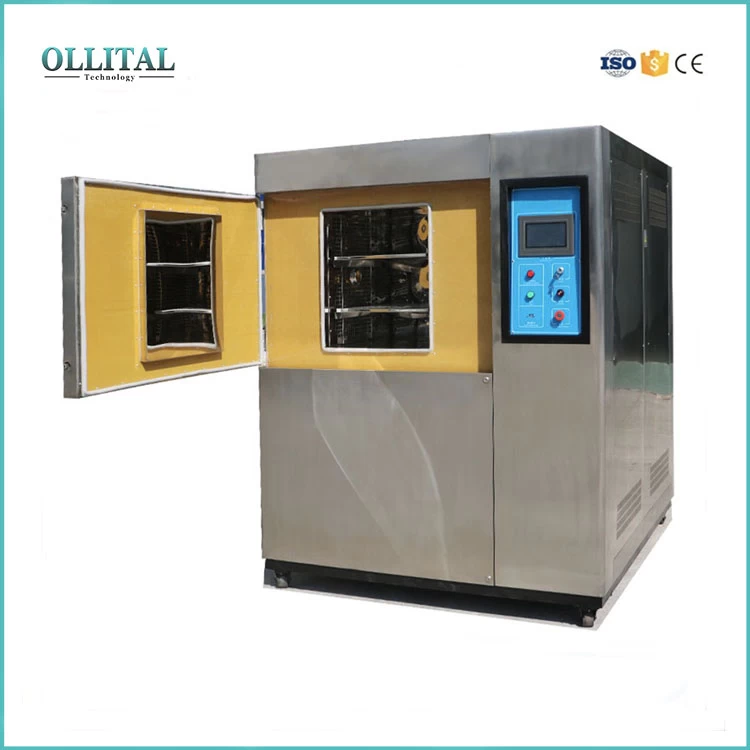

800L Fast Rate Change Temperature And Humidity Chamber
|
Model
|
OLT-408L
|
OLT-800L
|
OLT-1000L
|
|
Internal Dimension WxHxD (mm)
|
600x850x800
|
1000x1000x800
|
1000x1000x1000
|
|
External Dimension WxHxD (mm)
|
1200x1950x1350
|
1600x2000x1450
|
1600x2100x1450
|
|
Temperature Range
|
Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃)
High Temperature 150℃
|
|
Humidity Range
|
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional , need Dehumidifier)
|
|
Indication relolution/ Distribution uniformity of temperature and humidity
|
0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H.
|
|
Control Accuracy of Temperature and Humidity
|
±0.5℃; ±2.5% R.H.
|
|
Temperature Rising/Falling Velocity
|
Temperature rising approx. 0.1~3.0℃/min ;
temperature falling approx. 0.1~1.0℃/min;
( Falling Min.1.5℃/min is optional)
|
|
Inner and Outer Material
|
Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated.
|
|
Insulation Material
|
Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
|
800L Fast rate Change temperature and humidity chamber is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time. Temperature Humidity Test Chamber is also called environment testing machine, used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
1. Graceful appearance, circularly shaped body, surface treated with mist strips . Easy to operate, safe and reliable.

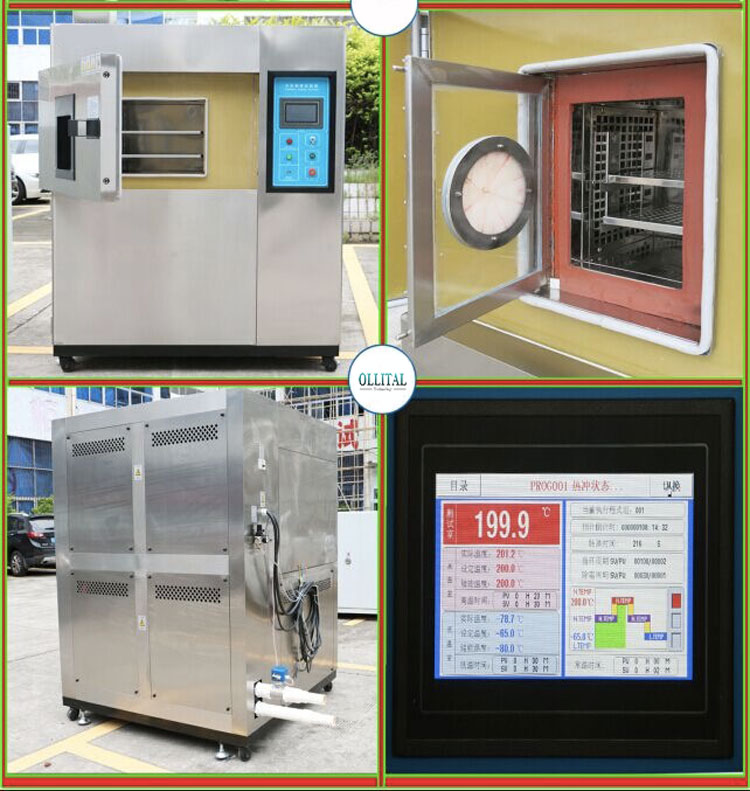

2. Rectangular double-paned viewing window for viewing sample under test, with interior light
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5.French Tecumseh is used as compressor, with environment friendly refrigeration R23 or R404A
6. LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, with quick or ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.
