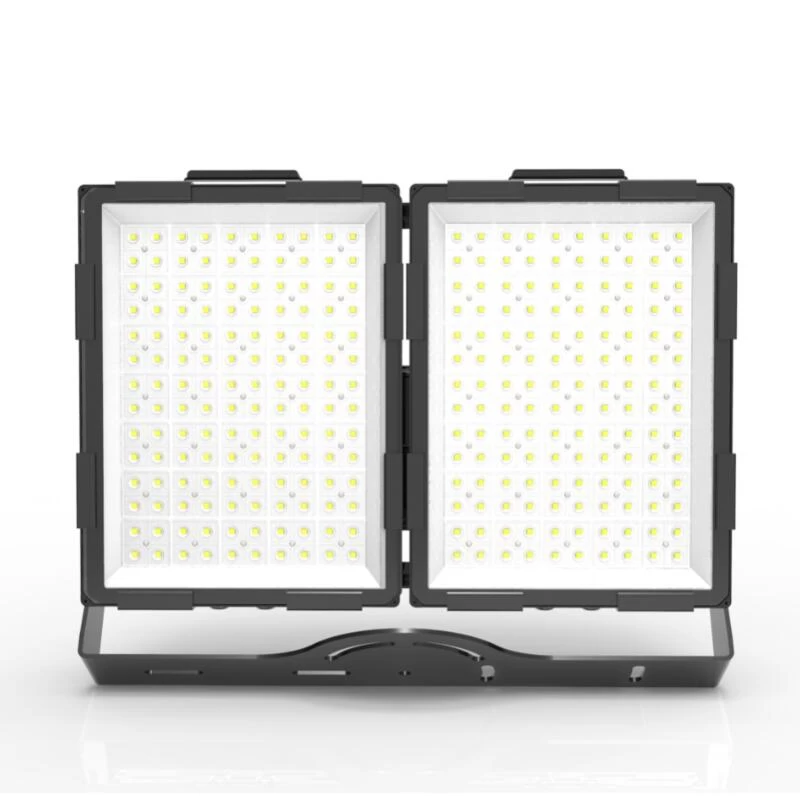

Product Item: 800W LED High Mast Flood Light IP66 Waterproof For Sports Field Lighting

Overview:

This range of LED high mast lighting fixture is ideal for sports center, golf courts, square and area lighting. With CREE LED(Philips, Osram available) as light source, Mean Well driver(Inventronics available) as driving unit, the lamp working stability can be ensured, and lumen output can be as high as 135LM/W.

Compared with other similar same power LED high mast floodlight, this model is super compact and smaller in size, which can save freight cost and easier for workers' installation. Thanks to the highly ventilated heat sink structure, fast air flow cooling helps prolong lifespan.

Features:

•World top class LED chip CREE XTE series or CREE XHP series as light source with less luminous decay, light beam can go farther distance under extremely rainy, foggy, or snowy weather.

• Lamp fixture system luminous efficacy 120-135lm/W (CREE, Lumileds, Osram, and other LED light source available)

• Inventronics driver, 5 years warranty(Mean Well and other brands driver available)

• Multiple Beam Angles Available: 10°/15°/20°/36°/60°/90°/70x140°/80x135°.

• Black/dark grey powder-coated finish ADC12# die-casting aluminium lamp body.

• Excellent ventilation, air flow cooling system, faster heat dissipation.

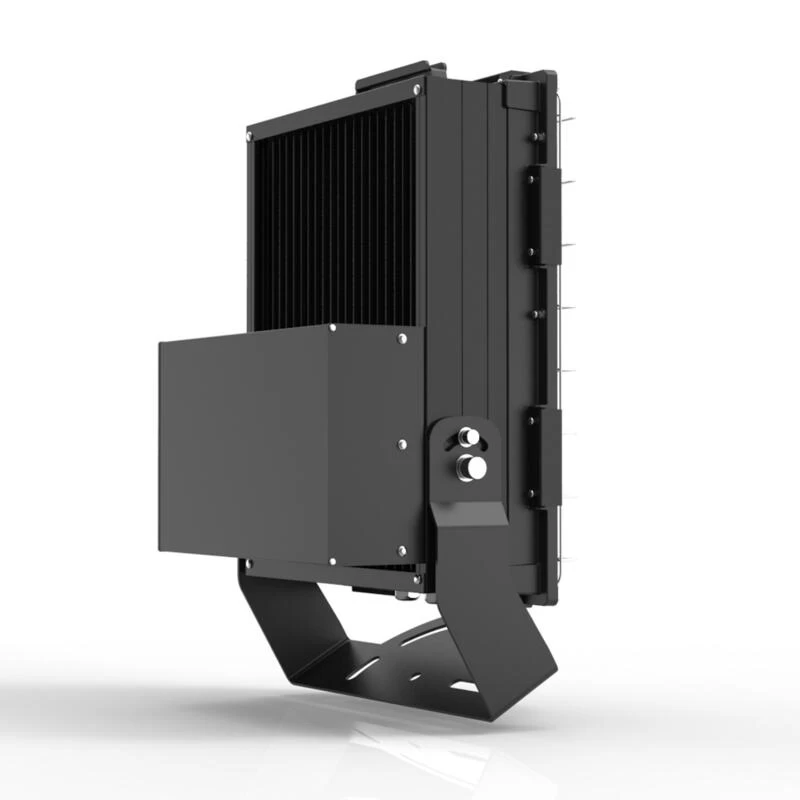

• Separate exterior driver box attached at the back.

• Surge protection: 10KV SPD available.

• IK08 and IP66 rated, with better protection.

• 1-10V dimming, DALI dimming, ZigBee available.

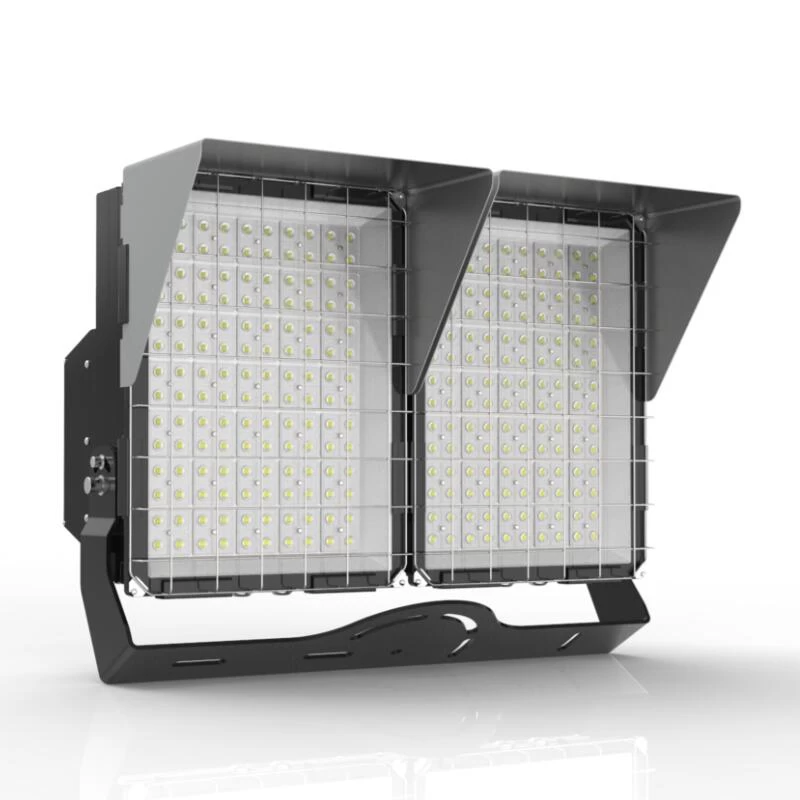

• Light spill shield and anti-collision wire guard available.

• Wattage: 400W, 500W, 600W, 800W, 1000W, 1200W.

• Aiming tool kit available: allows the highest level of control over the aiming part of a sports floodlighting project.

• Applications: stadiums lighting, harbors lighting, tennis courts lighting, golf courts lighting, cricket court lighting, basketball courts lighting, ski resorts lighting, sports arenas lighting, etc.

Different LED Light Source & Lens/Reflector Configuration:

Professional Lighting Optical Design & Thermal Management Design:

High lumen output CREE/Lumileds LED chip, efficiency reflector, lens, super high transmittance tempered glass to ensure high luminous efficacy;

Aluminum lamp body structure designed with large heat dissipatition efficiency, excellent ventilation, and impressive appearance.

Multiple Beam Angles for Various Lighting Applications:

CREE XTE as light source:  beam angles 15 degree, 30 degree, 60 degree, 90 degree(adopt PC lens)

CREE XHP as light source: beam angles10 degree, 20 degree, 36 degree, 60 degree(adopt reflector)

Lumileds SMD5050 as light source:beam angles 30 degree, 60 degree, 90 degree, 80*135 degree (adopt PC lens)

Both asymmetric and symmetric lighting distribution.

Humanized Design:

• To make it easy for workers' on-site lamp installation, lamp holder is designed.
• To avoid unexpected scratching injury, anti-scratching bar is attached to the heat sink heat dissipation fins, while good air flow is also realized.
• To make installtion wiring fast and secure, waterproof wiring terminal is designed.
• 180° Adjustable Bracket: Flexible in adjusting lighting area and easier for installation.

Better Performance under Rainy or Foggy Weather:

CREE XTE/XHP LED Adopted: Compared with ordinary SMD LED on market,the high power CREE XTE/XHP LED can ensure the light go farther distance even. This is super essential advantage for sports match live broadcasting and can ensure better performance both in lighting and broadcasting. Moreover, as it's known all LED has luminous efficacy as time pass by. Under same temperature, CREE LED will have less lumnouse decay, this is important for high power mast lighting which involves high cost in future maintenance.

Application:

Sports arenas LED lighting, multi-sports courts LED lighting, futsal pitches LED lighting, sea harbors LED lighting, skyscrapers LED lighting, etc.
