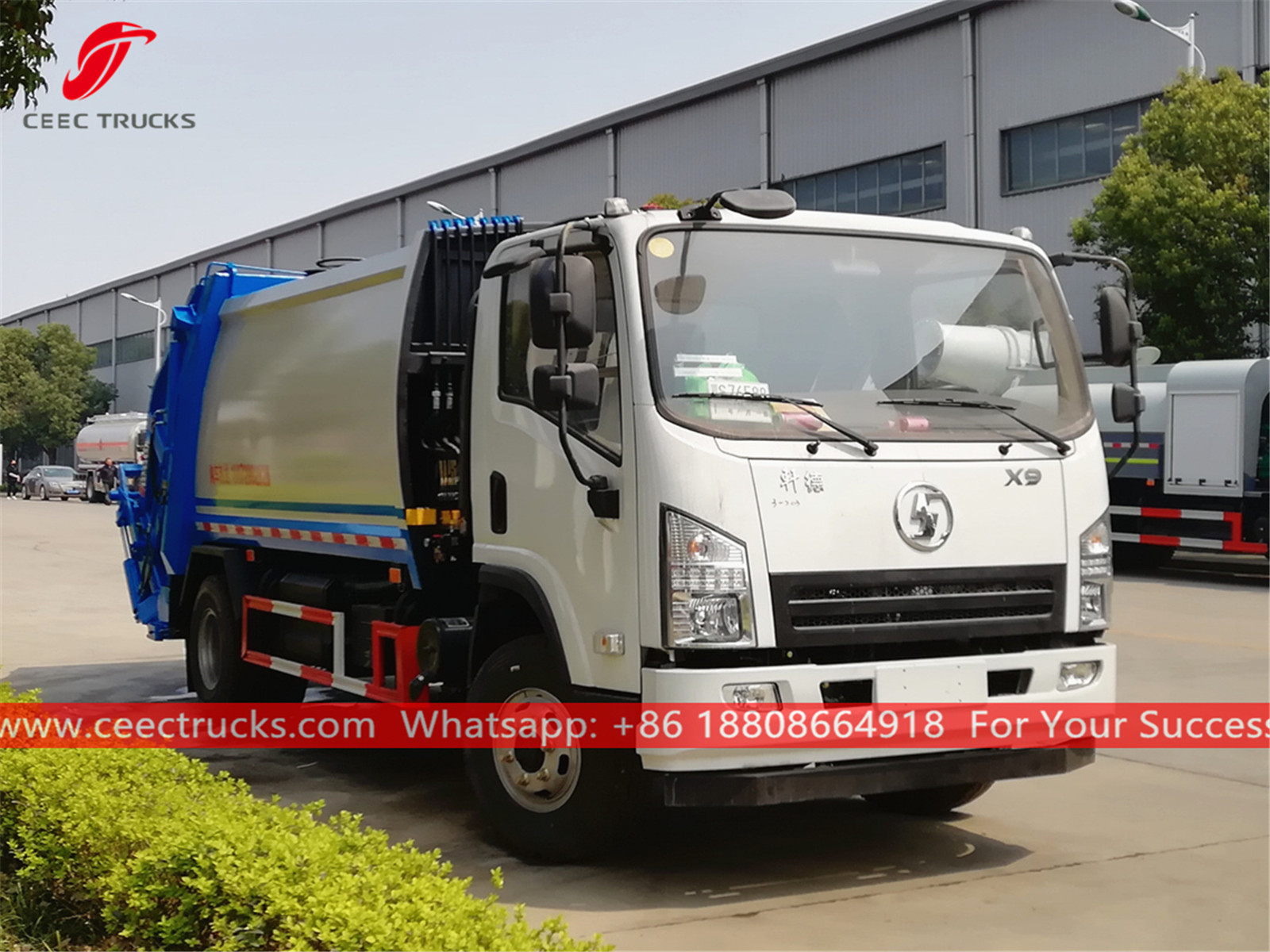

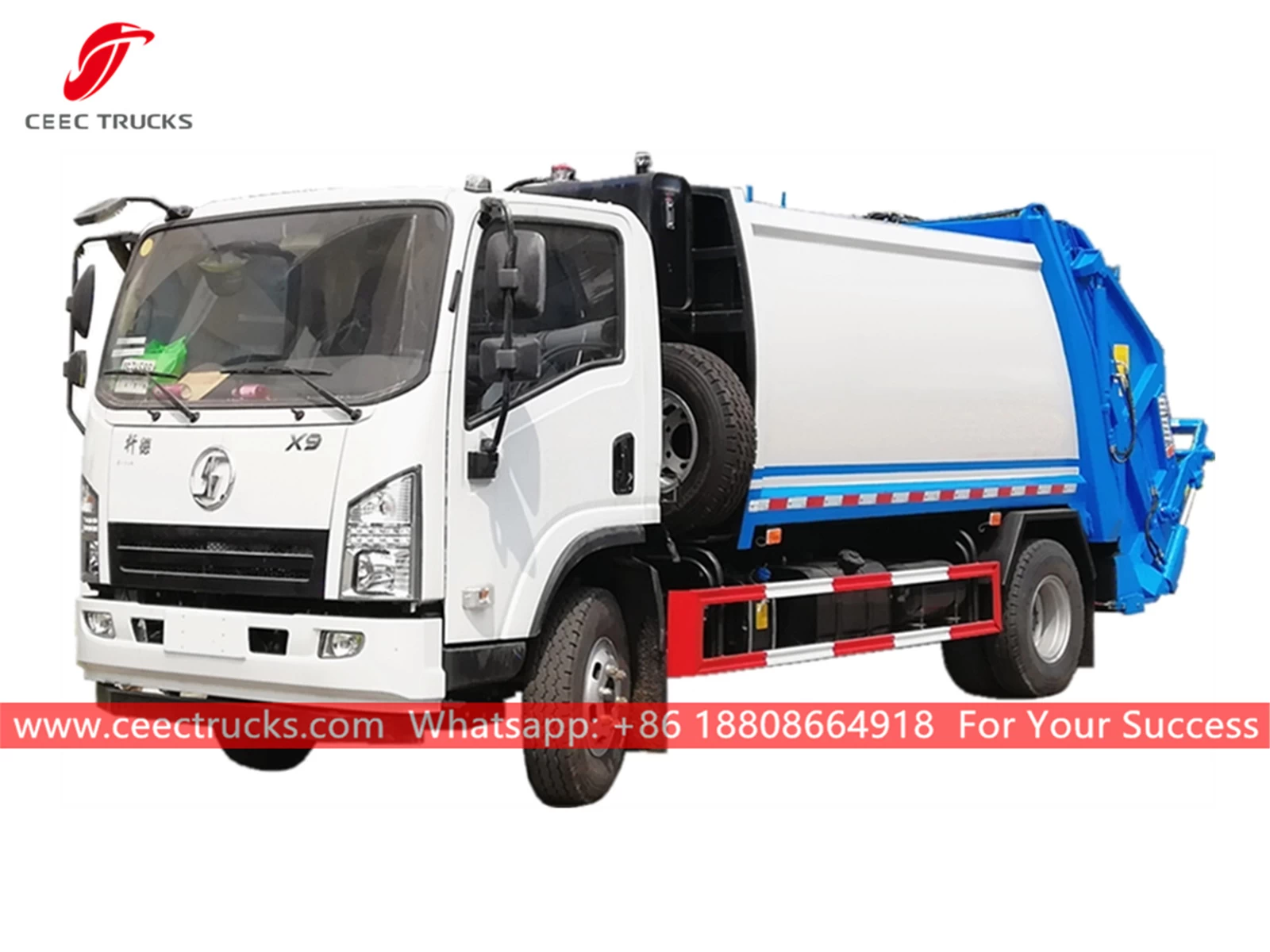

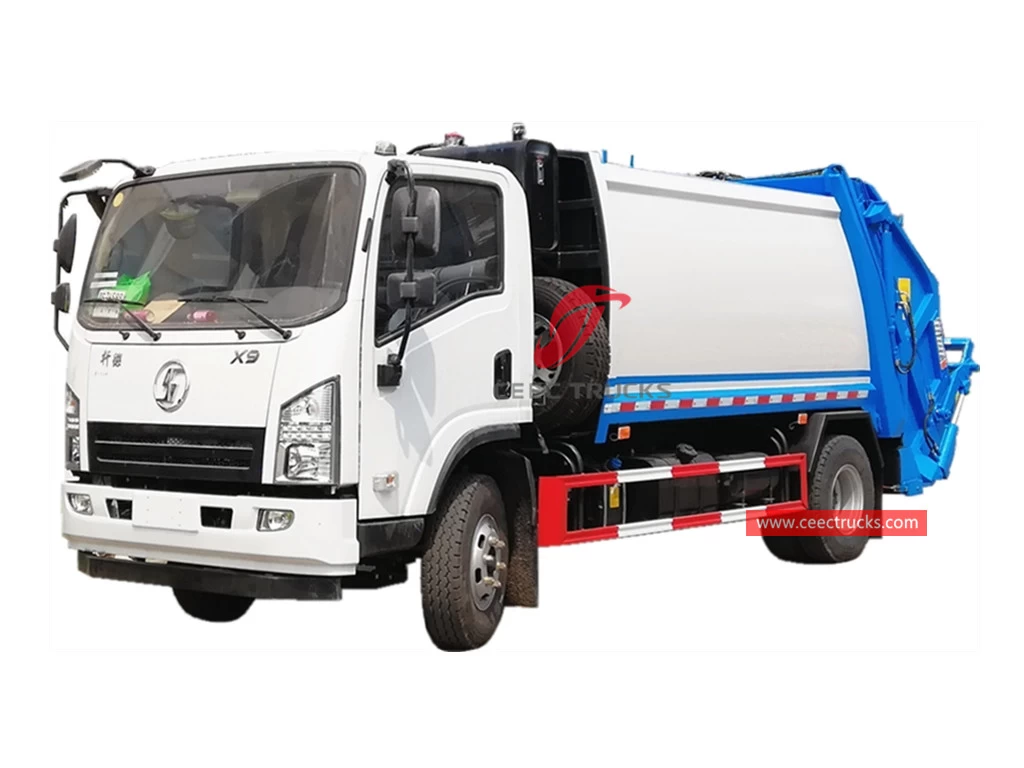

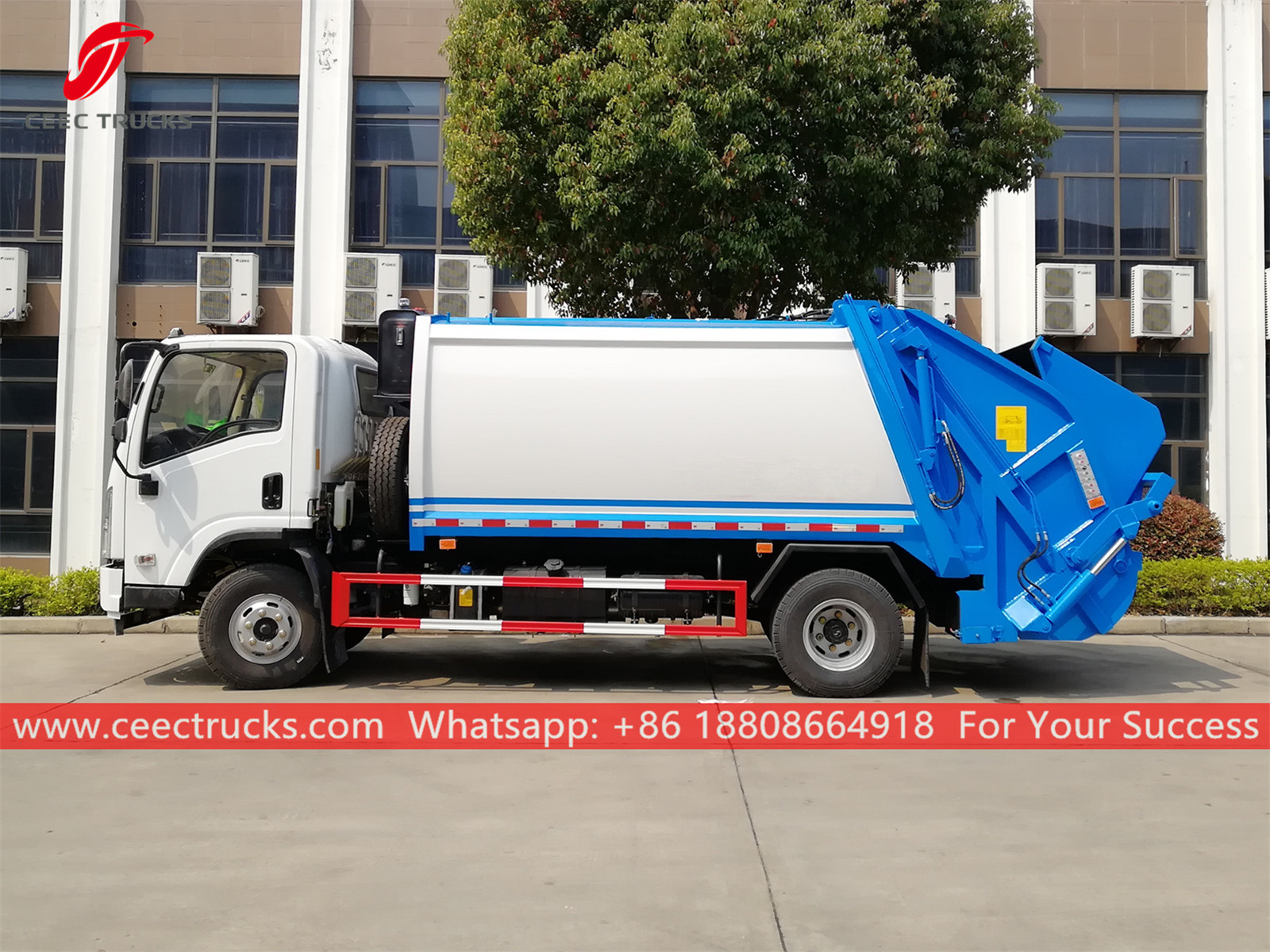

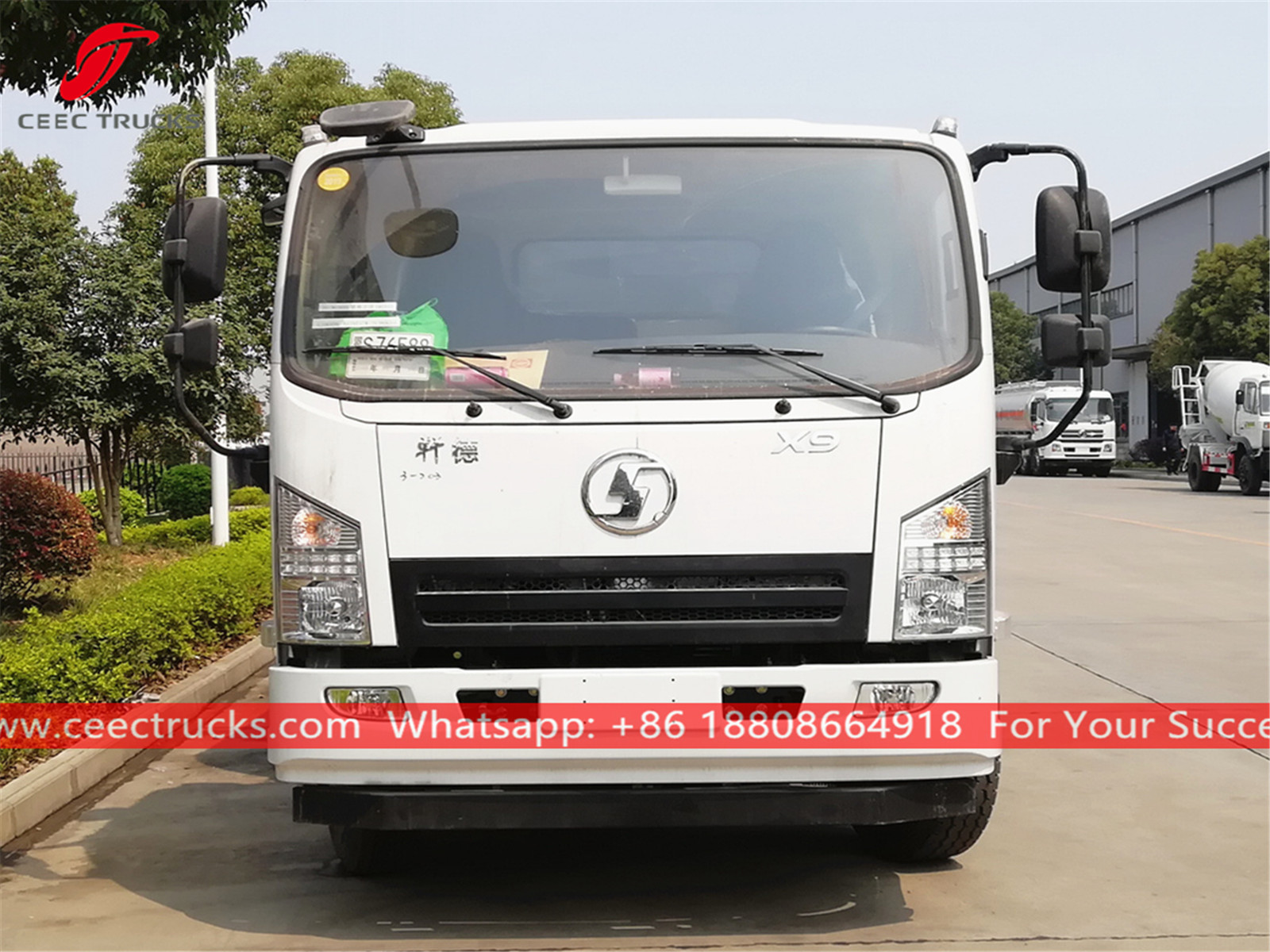

8CBM Garbage Compactor Truck SHACMAN

SHACMAN brand 8cbm garbage compressor truck, the truck chassis use WEICHAI 130HP diesel engine, Manual 6-shift transmission gear. PLC control box for easy operation, All painting and logos based on clients requirement.




 Applications:



Rubbish Compactor Truck Shacman (also called rear load garbage truck, Multi Function Refuse Compactor, Hydraulic Garbage Compactor Truck, refuse compactor truck, new rear loader garbage truck, garbage compactor recycling truck) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.



CEEC TRUCKS compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.



The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.



 Key Features:



---- SHACMAN chassis, perfect performance

---- WEICHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.



 Specifications:



Rubbish Compactor truck SHACMAN (8 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

SHACMAN

Overall Dimension

7420 * 2240 * 2800 mm

GVW / Kerb Weight

8,280kg / 6,500kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI

Power

130 HP (96 KW)

Displacement

3660 ml

Emission Standard

Euro 5

Chassis

Drive Type

4X2, (left hand drive)

Transmission

Manual 6 speed levers with 1 reverse

Wheelbase/No. of axle

3800 mm / 2

Tire Specification

8.25-16

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body capacity

8 cbm

Fill Hopper capacity

1.3 cbm

Sewage tank

 200 liters

Filling work cycly time

 20~25 s

Discharge model

Horizontal Ejection

Control system

Electrically Hydraulic control

Manual hydraulic control

Control panel

English or Your language

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,

handrail, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.
