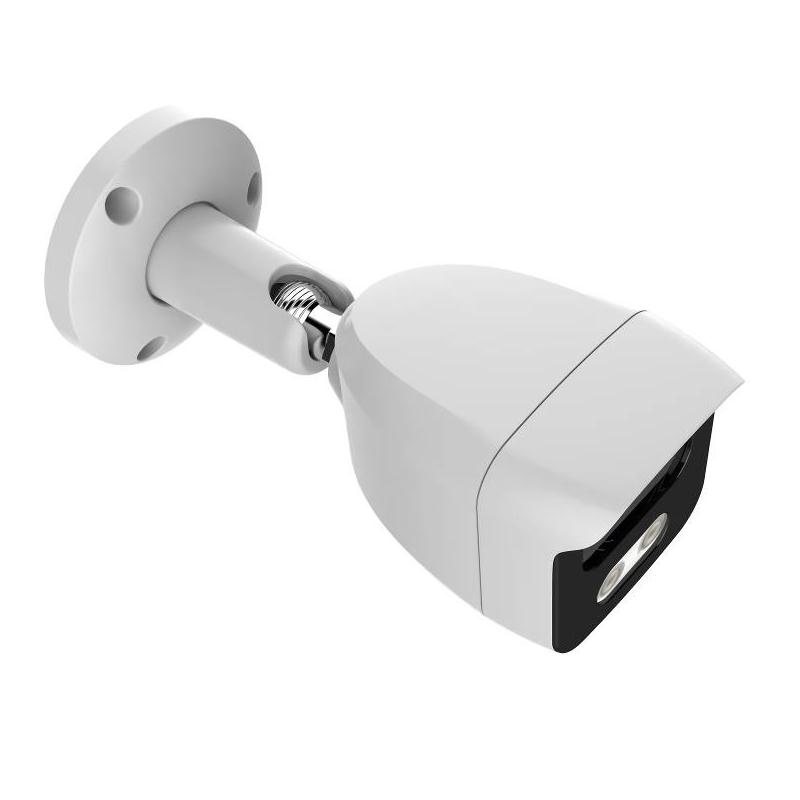

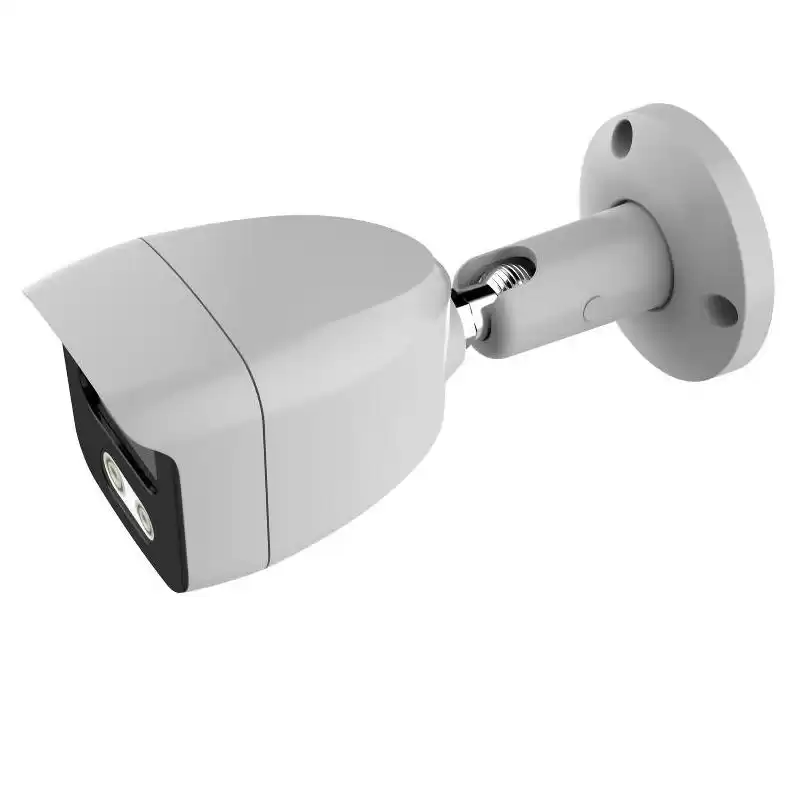

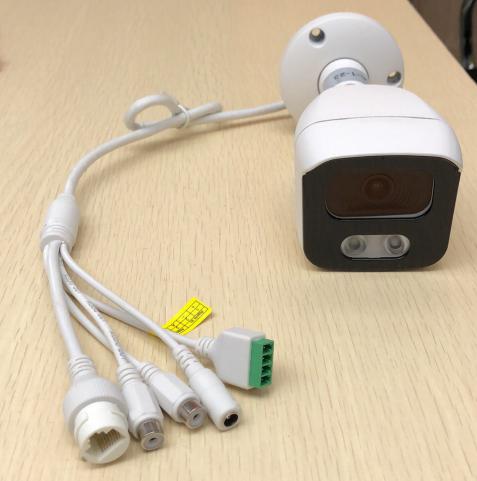

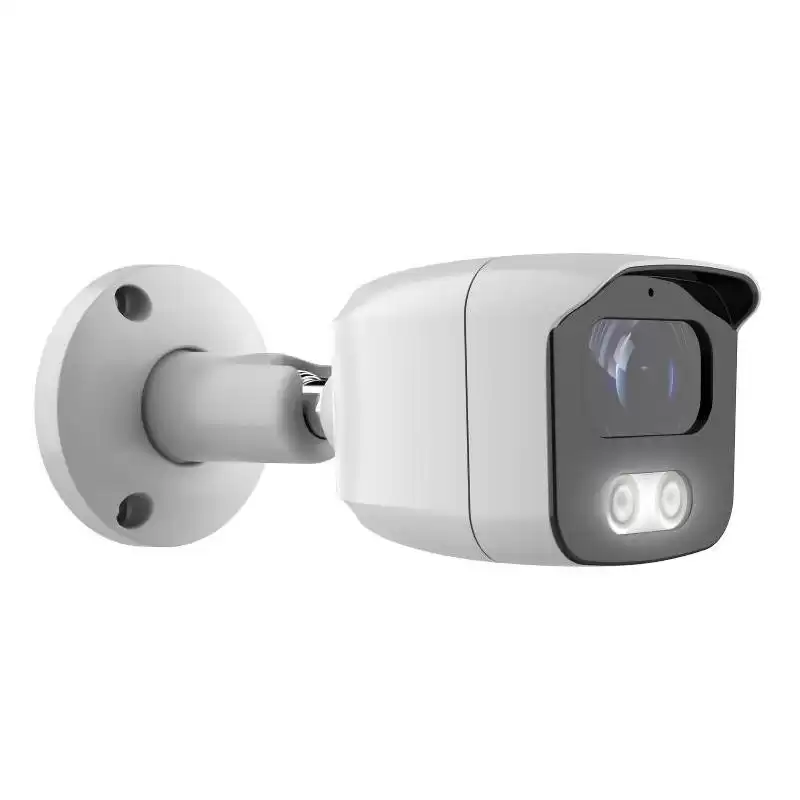

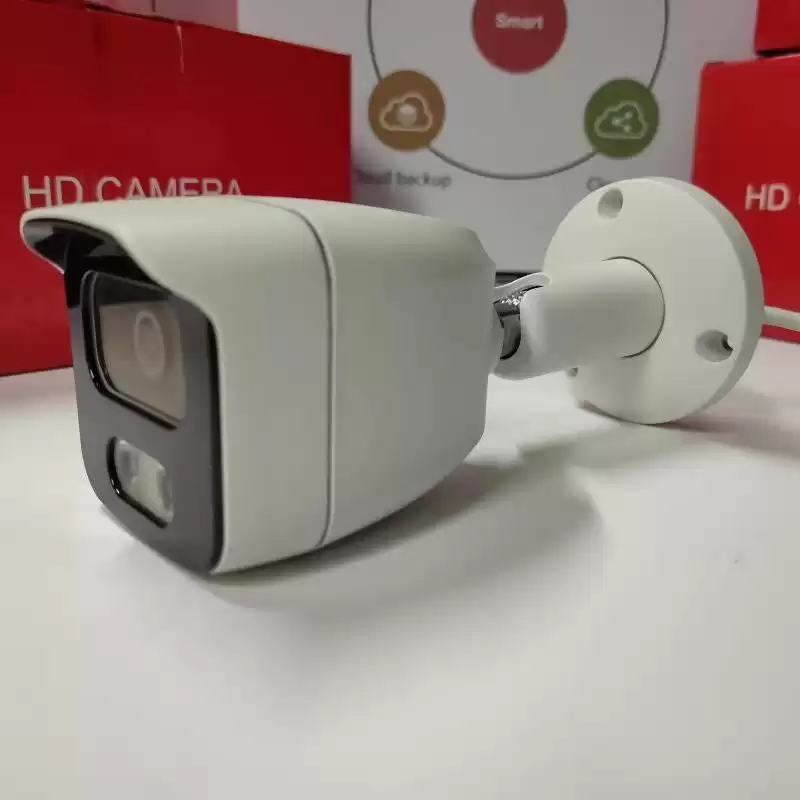

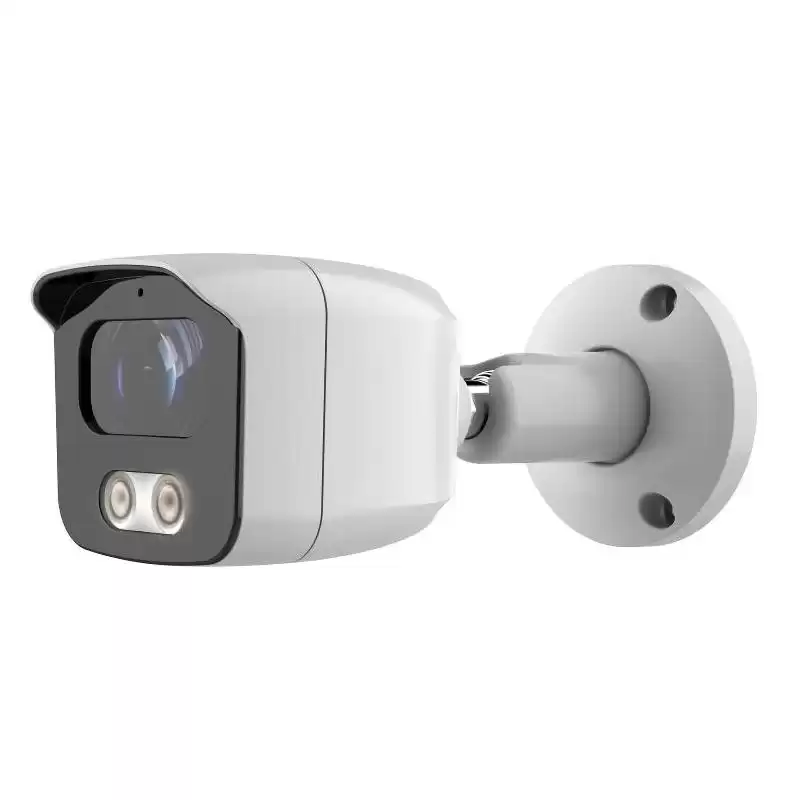

Product Name:8MP HD 2160P H.265+ ONVIF IP67 Waterproof WIFI IP Camera Full Color Night Vision Two Way Audio
Feature
●1/2.8" SONY Starvis back-illuminated CMOS sensor.
●HD2160P, 3840*2160, high definition image quality, resolution up to 8MP.
●H.265+ compression,ensured us more clear image quality but less bit rate,saved much transmit and storage cost.
●Two way talk, build in microphone and high quality audio speaker with loud volume, it can do two way talk online between camera and mobile phone.
●Day/night vision, color/ B&W (IR-CUT ), infrared LED 42µ x 2pcs, can effectively improve the night vision sharpness, max up to 20m IR range.
●Board lens focus length 3.6mm.
●Motion detection, support alarm snapshot, APP push, alarm record.
●Image config 3D NR , white balance, FLK(flicker control), video tampering, HLC, distortion.
●Metal IP67 waterproof, suitable for indoor and outdoor use,all weather environment applications.
●Hisilicon SoC, ONVIF2.4, DWDR: 50dB, smart IR.
●Main stream: 8MP@20fps, 6MP@30fps, 1080P@30fps.
●With internal POE and SD card slot (max.512GB).
Specification
|
Model
|
ANSDEN BAC-QL800
|
|
Camera Parameter
|
|
Camera
|
|
Image Sensor
|
1/2.8" SONY Starvis Back-illuminated CMOS sensor
|
|
Resolution
|
8MP
|
|
Effective Pixels
|
3864(H)*2192(V)
|
|
Compression
|
H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
|
|
TV System
|
PAL/NTSC
|
|
Electronic Shutter Time
|
Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec
|
|
Minimun Illumination
|
0.01Lux
|
|
S/N Ratio
|
≥52dB
|
|
Scanning System
|
Progressive
|
|
Video Output
|
Network
|
|
Reset Button
|
Optional
|
|
Lens
|
|
Focus Length
|
3.6mm
|
|
Focus Control
|
Fixed
|
|
Lens Type
|
Fixed
|
|
Pixels
|
8MP
|
|
Night Vision
|
|
Infrared LED
|
42µ x 2PCS
|
|
Infrared Distance
|
20M
|
|
IR Status
|
Auto Control
|
|
IR Power On
|
Smart, Manual & Timed mode
|
|
Network
|
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
Wireless
|
/
|
|
Protocol
|
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, UPnP, SMTP, UDP
|
|
ONVIF
|
Support ONVIF 2.4(Profile S/T)
|
|
P2P
|
YES, Support QR Code
|
|
POE
|
Internal, Support IEEE 802.3af
|
|
Video Delay
|
0.3S (Within the Lan)
|
|
Main Stream 1
|
3840*2160@20fps
|
|
Main Stream 2
|
2592*1944@30fps
2560*1440@30fps
|
|
Main Stream 3
|
1920*1080@30fps
1280*720@30fps
|
|
Sub Stream 1
|
720*480@30fps
|
|
Sub Stream 2
|
352*288@30fps
|
|
Sub Stream 3
|
/
|
|
Tri Stream
|
1280*720@30fps
720*480@30fps
352*288@30fps
|
|
IE Brower
|
IE8-11, Google Chrome, Firefox , Mac Safari
|
|
Smart Phone
|
iPhone, iPad, Android, Android Pad
|
|
Camera Features
|
|
Day/Night
|
Color/ B&W (IR-CUT )
|
|
Image Config
|
Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering, HLC, Distortion
|
|
Full Starlight
|
/
|
|
Corridor Pattern
|
Support
|
|
Defog Mode
|
Support
|
|
ROI
|
Support
|
|
BLC
|
Support
|
|
WDR
|
DWDR: 50dB
|
|
Motion Detection
|
Support
|
|
Privacy Masking
|
3 Rectangular Zone
|
|
Recording Mode
|
NVR/CMS/Web
|
|
Language
|
Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew,
Italian,Nederlands,Czech, Vietnamese
|
|
Interface
|
|
Audio
|
Two-Way Audio
|
|
Alarm
|
1 Channel Input/Ouput
|
|
SD Card Slot
|
Optional, Support Max 512GB
|
|
RS485
|
/
|
|
General
|
|
Housing
|
Metal ,IP67
|
|
Anti-cut Bracket
|
YES
|
|
IR Cut Filter
|
YES
|
|
Operation Temperature
|
-20℃ ~ +60℃ RH95% Max
|
|
Storage Temperature
|
-20℃ ~ +60℃ RH95% Max
|
|
Power Source
|
DC12V±10%, 700mA
|
|

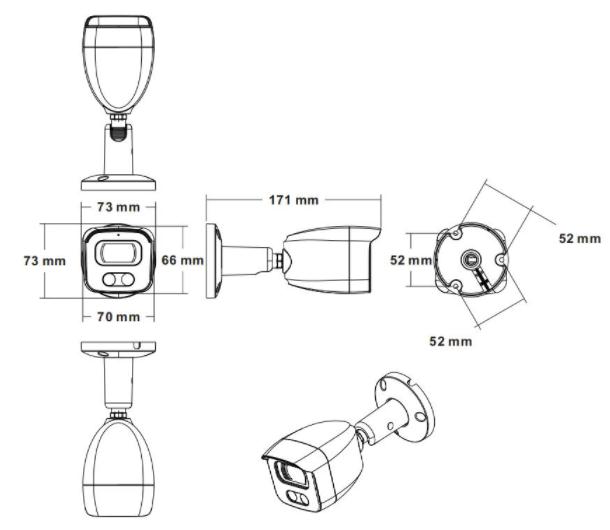

Dimension
|
171(W) * 73(H) * 70(D)mm
|
|
Weight
|
750g
|
Dimension
1/2.8" SONY starvis back-illuminated CMOS sensor, HD2160P, 3840*2160, 8MP, H.265+, 3D NR.
Application
Two way talk, Day/night vision, color/ B&W (IR-CUT ), infrared LED 42µ x 2pcs, can effectively improve the night vision sharpness, max up to 20m IR range.
