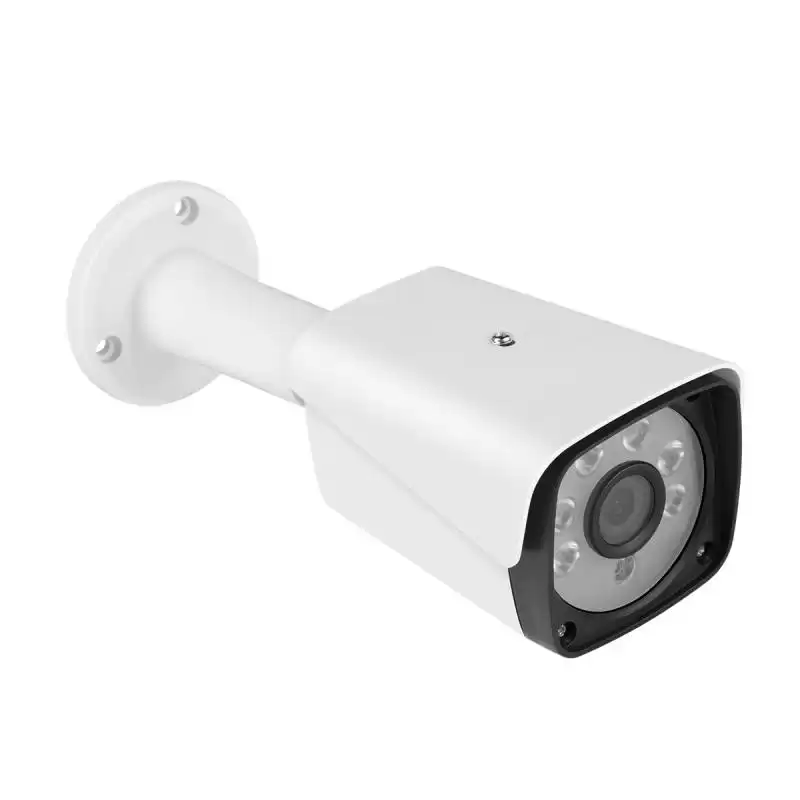

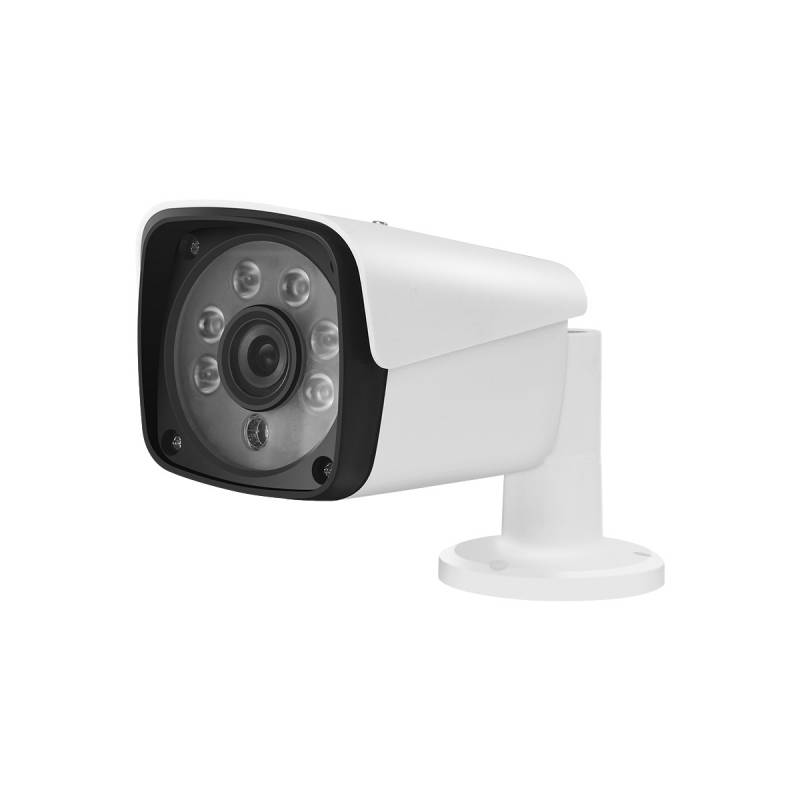

Product Name:HD 5MP H.265 Alarm Bullet IP Camera Onvif 3D DNR IP66 Motion Detection
Feature

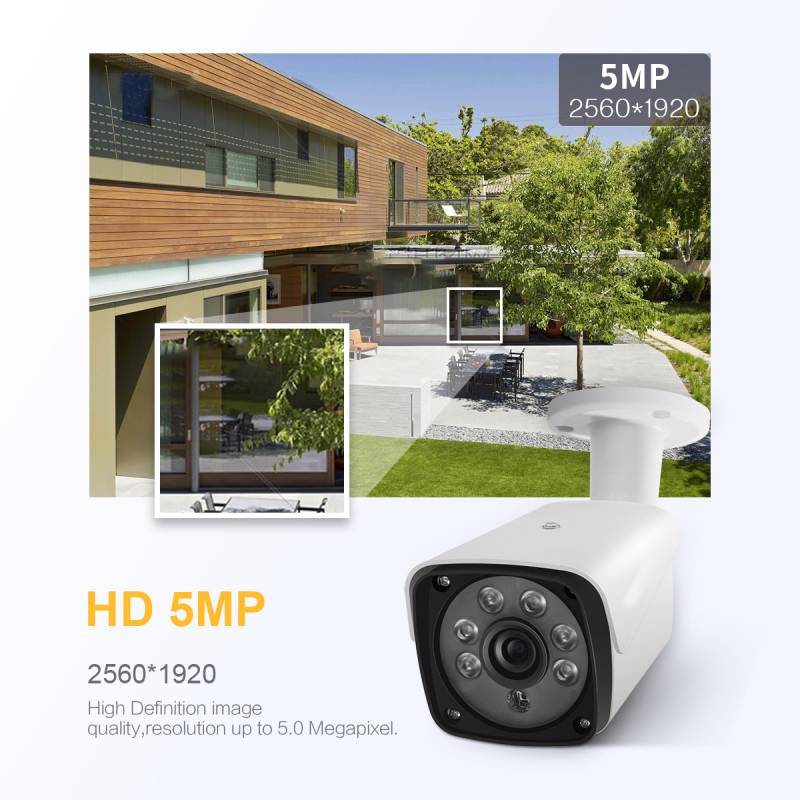

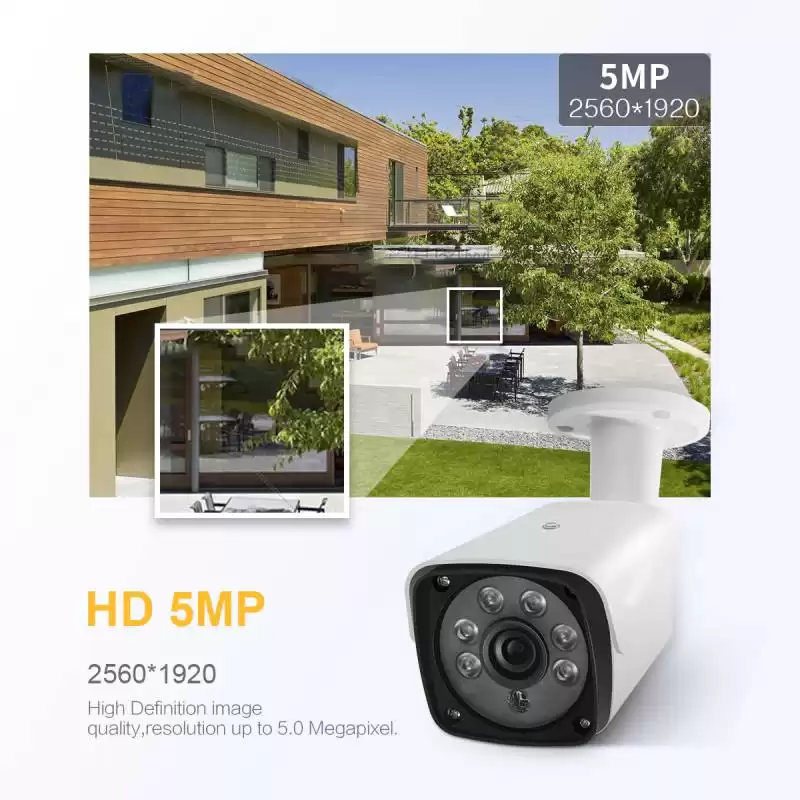

●HD 5MP 2560*1920 high definition image quality, resolution up to 5.0 megapixel.
●H.265 compression, ensured us more clear image quality but
less bit rate, saved much transmit and storage cost.

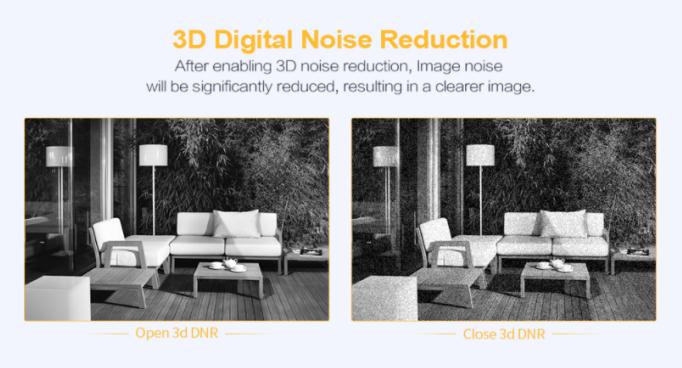

●3D digital noise reduction, after enabling 3D noise reduction, image noise will be significantly reduced, resulting in a clearer image.
●Motion detection, when motion objects detected app push notification.
●Smart analysis function work with NVR
*Target count, calculating body or object flow.
*Line crossing, it will issue an alarm after crossing the warning line.
*Area detection,detecting target in the area.
*Object left/lost. It will issue an alarm when items are left or lost.
●IR cut dual filter, 15m IR range. 6pcs IR LEDs built in, support Day/Night image. It can capture ultra clear night time image.
●IP66 waterproof, suitable for indoor and outdoor use, all weather environment applications.
●Support max to 4 privacy mark areas.
●Compliance with standard ONVIF protocol,compatible with various brands NVR.
●Multi-platform, support Android/iOS mobile、tablets、and computers.
Specification
|
Model
|
ANSDEN YAC-QH005
|
|
Camera Parameter
|
|
Camera
|
|
Sensor
|
1/2.7" CMOS
|
|
Effective Pixels
|
5MP
|
|
Electronic Shutter Speed
|
Auto/Manual, 1/25~1/10000s
|
|
Minimum Illumination
|
Color：0.01Lux@F1.2；B&W：0Lux@F1.2(IR on)
|
|
Lens
|
3.6mm fixed lens
|
|
Angle of View
|
75.7°
|
|
Functions
|
|
Day/Night Switch
|
15M（6 x IR Lamps）
|
|
White Balance
|
Auto white balance
|
|
Backlight Compensation
|
Support BLC
|
|
S/N Ratio
|
≥50db (AGC closed)
|
|
Digital Noise Reduction
|
Support 3D noise reduction
|
|
WDR
|
Support D-WDR
|
|
Motion Detection
|
Support motion detection
|
|
Privacy Shelter
|
Support 4 zones
|
|
OSD
|
Support OSD setting
|
|
Smart Analysis
|
Target Count, Object Left/Lost, Area Detection, Line Crossing
|
|
Video
|
|
Compression
|
H.264/H.265
|
|
Resolution
|
Mainstream: 5MP(2560*1920)
|
|
Substream: D1(704*576), VGA(640*480)
|
|
Video Frame Rate
|
1-20FPS
|
|
Bitrate
|
16Kbps-4Mbps continuously adjustable, support CBR / VBR
|
|
Video Adjustment
|
brightness, saturability, chromacity adjustment
|
|
Audio
|
|
Audio
|
Not support
|
|
Network
|
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
IP Type
|
Dynamic IP and Static IP
|
|
Network Agreement
|
TCP/IP, DHCP, HTTP, HTTPS, NTP, DNS, RTP ,RTSP
|
|
Access Protocol
|
Support ONVIF
|
|
Max user qty
|
4
|
|
Client
|
iPhone, iPad, Android,Windows PC
|
|
General
|
|
Power Supply
|
DC12V 1A
|
|
Power Consumption
|
<6W
|
|
Working Environment
|
-20°C~+60°C, 10%~90%
|
|
Waterproof
|
IP66
|
|

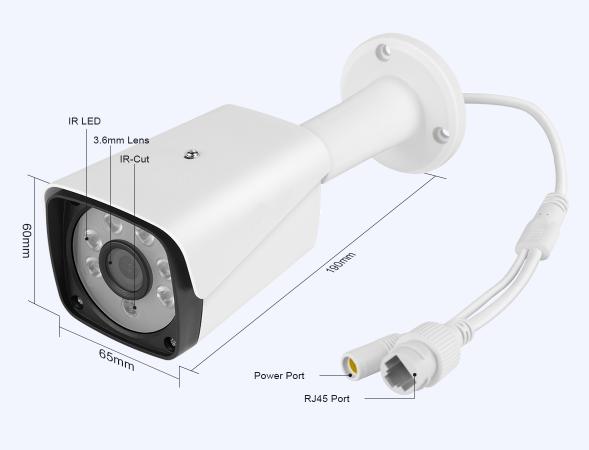

Dimension
|
190mm * 65mm * 60mm
|
|
Weight
|
0.25kg
|
|
Package Dimension
|
220mm * 105mm * 100mm
|
|
Package Weight
|
0.46kg
|
|
Accessories
|
IP Camera*1, Power adapter*1, Screws*1, Waterproof hat*1, Manual*1
|
Dimension
HD 5MP 2560*1920 high definition image quality, resolution up to 5.0 megapixel.
Application
3D digital noise reduction, after enabling 3D noise reduction, image noise will be significantly reduced, resulting in a clearer image.
