8Tons NPR ELF
ISUZU Hook lift garbage truck
Description:

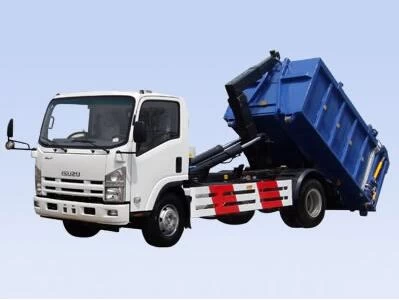

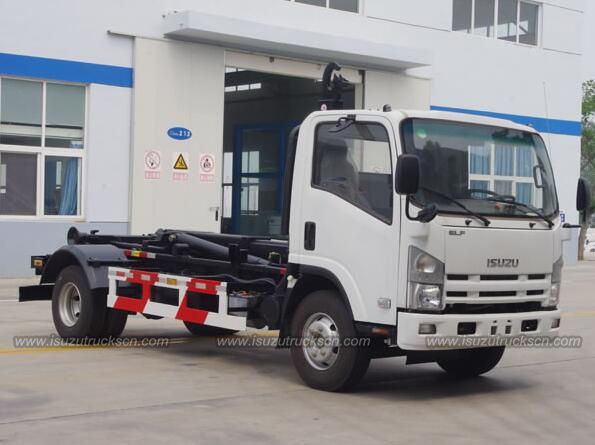

ISUZU Hook lift
container garbage truck also called as Isuzu ro on ro off garbage truck, ISUZU garbage container lift truck, is a vehicle
combined function of loading, unloading, and transport. Use the pull arm to
load the garbage containers (bulk load container, combined compress container,
separated compress container), and unload automatically.
Key Features:
◆We are MANUFACTURER more than 10years experience,
Professional, well design!
◆Due to the combination control of hydraulic,
electrical and pneumatic elements, our hook loader features highautomation and
simple and safe operation.
◆Rearview monitor system of optional is offered, it is
very convenient to perform visible load and un-load-operation in the cab.
◆The machine was installed with emergency stop which
can stop working whatever state and position stuffing mechanism reached, ensure
that the staff and equipment are safety.
◆Various types of container are applicable
◆Powerful twin lift cylinders are employed.
◆Control buttons and levers are designed with humanity
are easy to operation.
Click here to get more Waste Container Vehicles which are working flexibly, simply and fast.
How to works:
Technical Parameters:
|
Item
|
Parameter
|
|
Product
model
|
PT5100ZXX
|
|
Chassis
model
|
ELF NPR
|
|
Emission
standard
|
Europe 4
|
|
Dimension
Parameter
|
Overall
dimension (L×W×H mm)
|
6055×2300×2860
|
|
Front/rear
wheel tread (mm)
|
1680/1650
|
|
Front/rear
suspension (mm)
|
1110/1130
|
|
Wheelbase
(mm)
|
3815
|
|
Approach/departure
angle (°)
|
21/19
|
|
Number
of axles
|
2
|
|
Drive
mode
|
Rear axle
driving
|
|
Tyre
model/quantity
|
8.25-20
|
|
Weight
Parameter
|
Curb
weight (kg)
|
4880
|
|
Unladen
weight distributed to the front axle (kg)
|
2430
|
|
Unladen
weight distributed to the rear axle (kg)
|
2450
|
|
Maximum
gross vehicle weight (kg)
|
10000
|
|
Laden
weight distributed to the front axle (kg)
|
3350
|
|
Laden
weight distributed to the rear axle (kg)
|
6650
|
|
Rated
load weight (kg)
|
4925
|
|
Performance
Parameter
|
Rated
passenger capacity
|
3
|
|
Maximum
running speed (km/h)
|
98
|
|
Lifting
capacity (t)
|
8
|
|
Maximum
dump angle(°)
|
45
|
|
Rated
pressure of the hydraulic system (MPa)
|
16
|
|
Garbage
bin volume (m3)
|
10
|
|
Minimum
ground clearance (mm)
|
≥220
|
|
Minimum
turning diameter (m)
|
≤14.8
|
|
Engine
|
Model
|
4HK1-TCG40
|
|
Rated
power (kW)/(r/min)
|
139/2600
|
