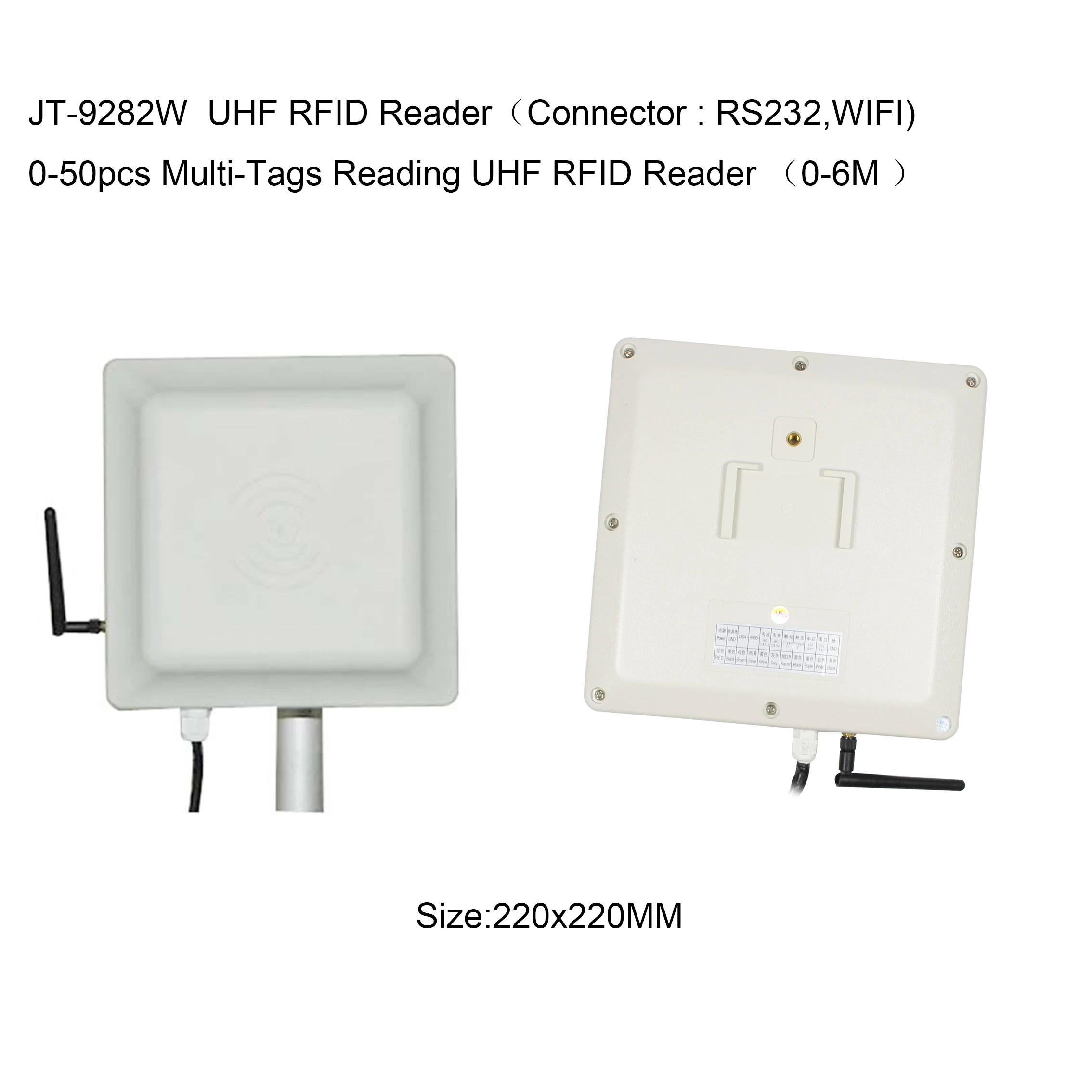

902-928Mhz R2000 Impinj WIFI Middle Range UHF RFID Reader 0-6M

JT-9282 UHF RFID Reader  has multi-protocol compatibility, fast reading speed and waterproof design to meet the demanding working environment.




Description

JT-9282 adopts the clip of Impinj R2000, which could achieve high speed and rapid date processing operation. Full support ISO-18000-6C(EPC C1 GEN2) protocol.

JT-9282 is easier to install for small size and light weight.

There will be flashing and buzzer when read tag.

JT-9282 could be used in variation area, such as vehicle management, customer management, logistic management and production automatic management, etc.


Feature

◆ Built in the RFID module of R2000

◆ The stable reading distance could reach 8M

◆ Multiple tags reading ability

◆ High sensitivity to tag

◆ Support RSSI indication

◆ Waterproof and sunscreen

◆ Support SDK dynamic link libraries(DLL) and secondary development


Specification

Item No.

JT-9282A

RS232,RS485, Wiegand

JT-9282B

RS232,TCP/IP

JT-9282W

RS232,WIFI

JT-9282G
RS232,GPRS

Performance Parameters

Working Frequency

902~928 MHz or 865~868MHz

Protocol

ISO18000-6C(EPC C1 GEN2)

Chip

Impinj  R2000

RF power

0~30dBm(Adjustable)

Software & SDK

DEMO and C#, VC , Java

Industrial lightning protection

6000V

Low temperature protection

Northeast, Northwest extremely cold region, low temperature protection

Reading range

stable reading range 8M(Depends on tag & environment)

Tag handling volume

0-200 tags

Storage space

1M or 8M Flash save without power supply(customized)

Real-time clock

without power supply, real-time clock save and working(customized)

Frequency modulation

hopping or fixed frequency

Input/output port

Two-way relay output(customized), two-way I/O input(customized)

RSSI

RSSI numerical test

Antenna gain

8dBi circular polarization

Working way

Buzzer & LED

Power

12V/3A Adaptor

Ethernet power supply

POE(customized)

Physical Parameters

Item size

220x220x50mm

Package size

410x270x110mm

Net weight

3KG

Shell material

ABS

Working temperature

-20℃~+65℃

Storage temperature

-45℃~+95℃
