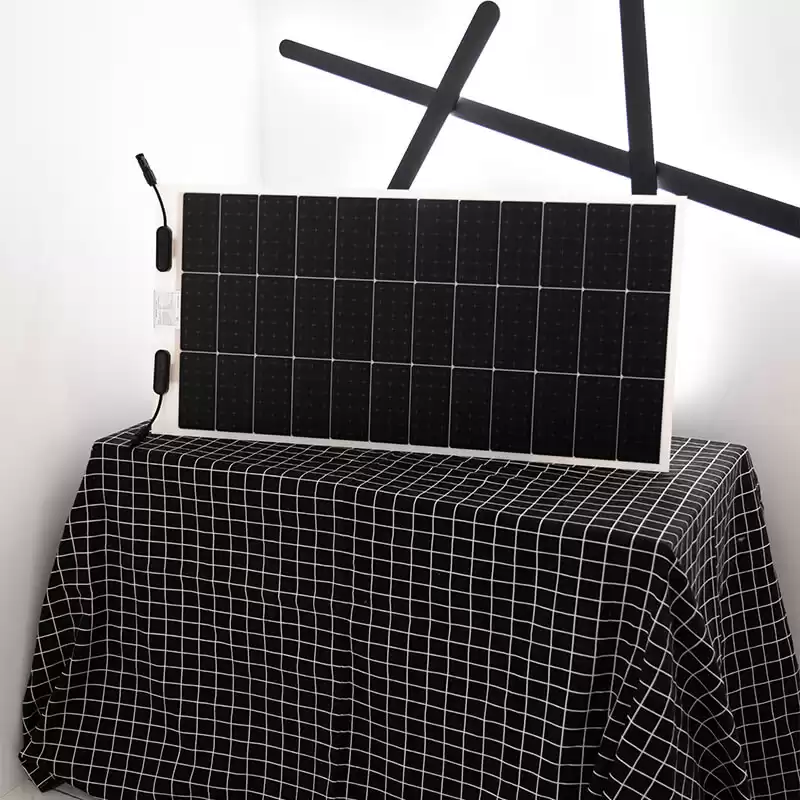

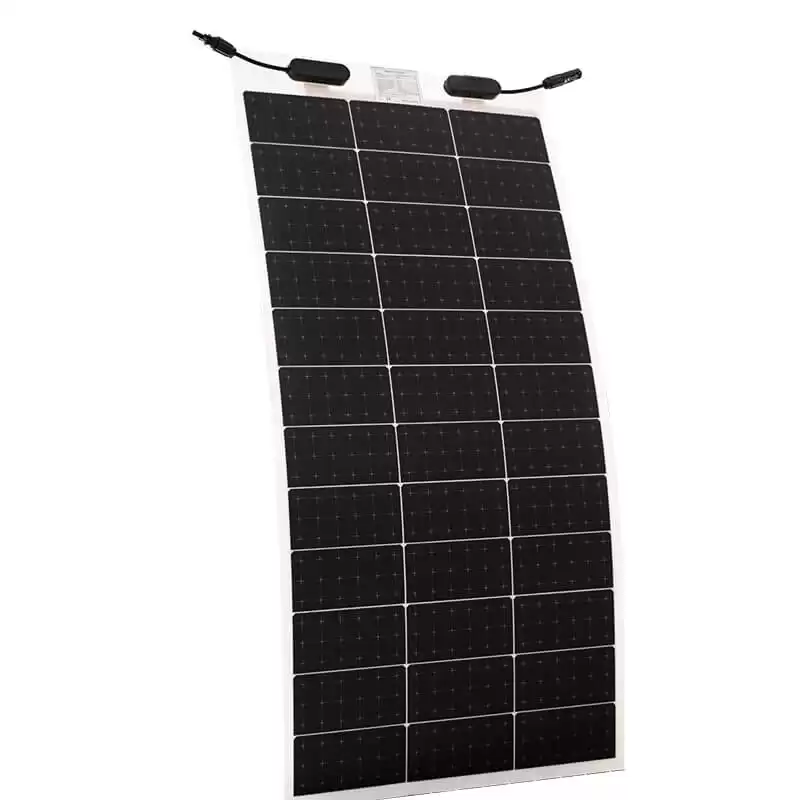

95-100W Flexible Monocrystalline high efficiency solar panel-Power Your Green Initiatives
Super light and Super thin design:The weight is only 1.4Kg, the thickness is only 1.4 mm. Easy to install.
Integrated design:Leading the BIPV trend, to get the installation blend into the building.
High reliability:Conductive panel two dimension sealing tech, zero welding, strict environmental test, excellent anti-aging performance.

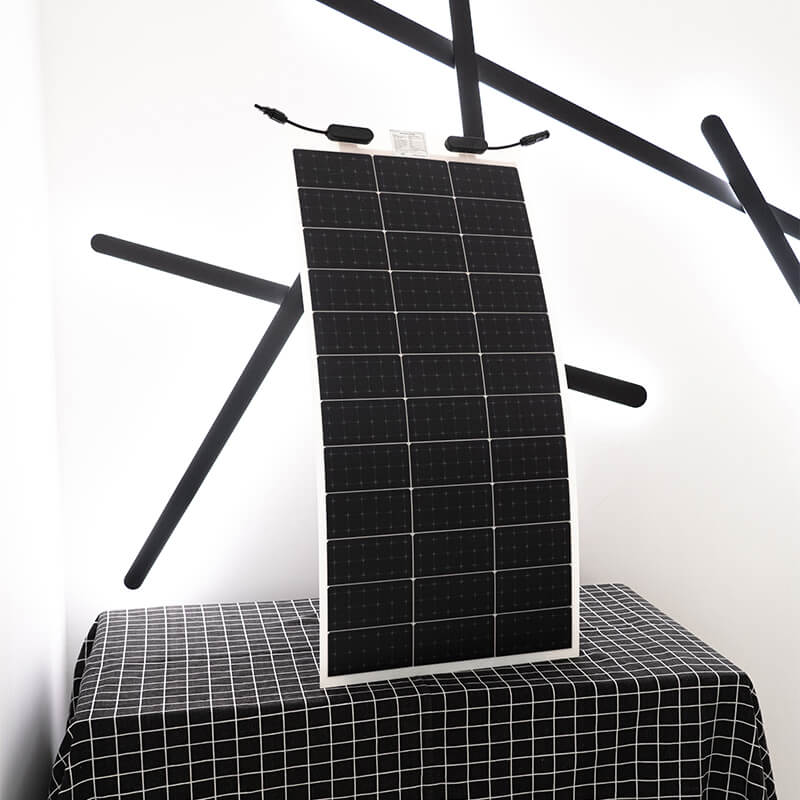

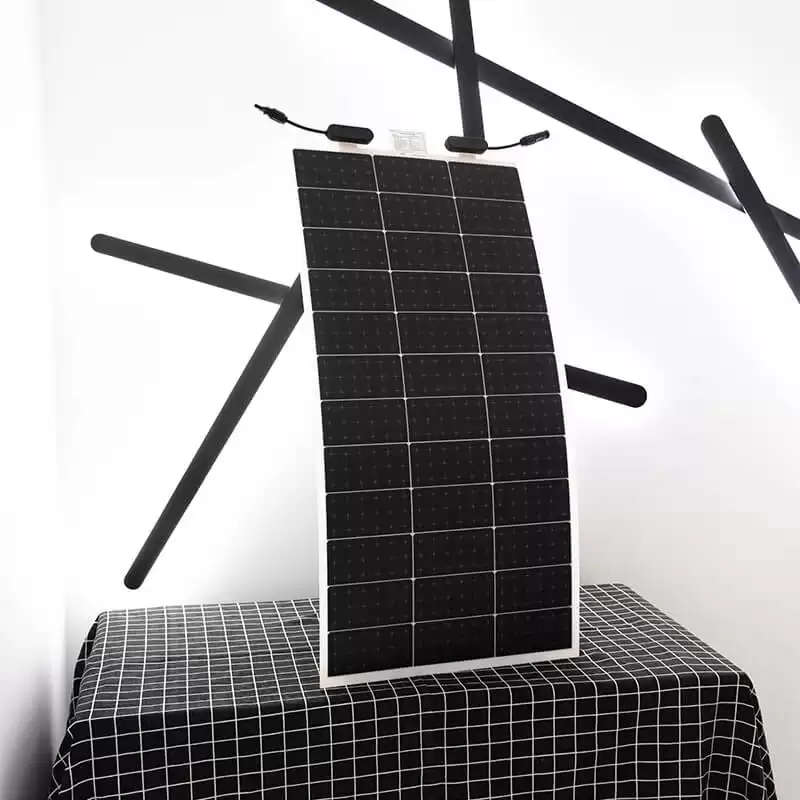

Ultra-high flexibility:Using super-thin silicon solar cell and advanced organic polymer sealing material, bending radius can reach 0.25m as min.
High efficiency:MWT tech. Solar cell, without busbar, much high module efficiency.
No lead environmental friendly:Adhere to the concept of green solar design, all material without lead,
| Electrical Performance Parameters (STC) |
|
Specifications / Model
|
Unit |
AJ95N36HS |
AJ100N36HS |
| Maximum power (Pm) |
W |
95 |
100 |
|
Power, tolerance
|
W |
0~ +5 |
| Best operating current (Im) |
Vm |
19.80 |
20.23 |
| Best operating current (Im) |
A |
4.82 |
4.96 |
| Open-circuit voltage (Voc) |
V |
23.87 |
24.31 |
| Short-circuit current (Isc) |
A |
5.07 |
5.22 |
| Assembly effective efficiency % |
m |
17.15 |
18.06 |
|
STC: AM=1.5, irradiance 1000W / m², component temperature 25℃ maximum
power test Tolerance ± 3%
|
|
| Electrical performance parameters (NMOT) |
| Specifications / Model |
Unit |
AJ95N36HS |
AJ100N36HS |
| Maximum power (Pm) |
W |
71 |
75 |
| Optimum operating voltage |
Vm |
18.2 |
18.62 |
| Best operating current (Im) |
A |
3.91 |
4.04 |
| Open-circuit voltage (Voc) |
V |
22.16 |
22.56 |
| Short-circuit current (Isc) |
A |
4.17 |
4.29 |
| NMOT: irradiance 800W / m², ambient temperature 20℃, wind speed 1m / s |
|
|
Flexible Design: The panel's flexible design enables easy installation on various surfaces, including curved or irregular structures, providing versatility in solar system deployment.
Monocrystalline Technology: The use of monocrystalline technology enhances the panel's efficiency, ensuring optimal conversion of sunlight into usable electrical energy and maximizing solar power generation.
Power Your Green Initiatives: By utilizing the 95-100W Flexible Monocrystalline High-Efficiency Solar Panel, you can power your green initiatives, reducing reliance on fossil fuels and embracing sustainable energy solutions.
High Power Output: The 95-100W Flexible Monocrystalline High-Efficiency Solar Panel provides a significant power output, allowing you to generate ample electricity for your green initiatives.
Durable and Weather-Resistant: The panel is built with durable materials and features a weather-resistant design, ensuring reliable performance and longevity even in challenging environmental conditions.
Versatile Application: The flexible design and moderate power output make this solar panel suitable for a range of applications, including powering small devices, charging batteries, or supporting low-power electronics in green initiatives.
High Efficiency: The high-efficiency photovoltaic cells used in the panel contribute to its overall energy conversion efficiency, allowing you to make the most of available sunlight.
Support Green Energy Transition: The high-efficiency solar panel empowers you to contribute to the transition to green energy, promoting a cleaner and more sustainable future by harnessing renewable solar power.
AJPOWER is a trusted provider of flexible solar panels and foldable solar packs, offering innovative solutions for clean and portable energy. With our high-quality products and personalized service, we empower you to embrace a greener future.
Our flexible solar panels adapt to diverse applications, delivering efficient and reliable energy generation. Compact and lightweight, our foldable solar packs provide on-the-go power for outdoor adventures.
At AJPOWER, we understand your unique energy needs. Our team offers customized solutions to guide you towards a sustainable lifestyle. Join us in harnessing the power of flexible solar panels and foldable solar packs, making a positive impact on the environment while enjoying the benefits of renewable energy. Together, let's create a greener and brighter future.
