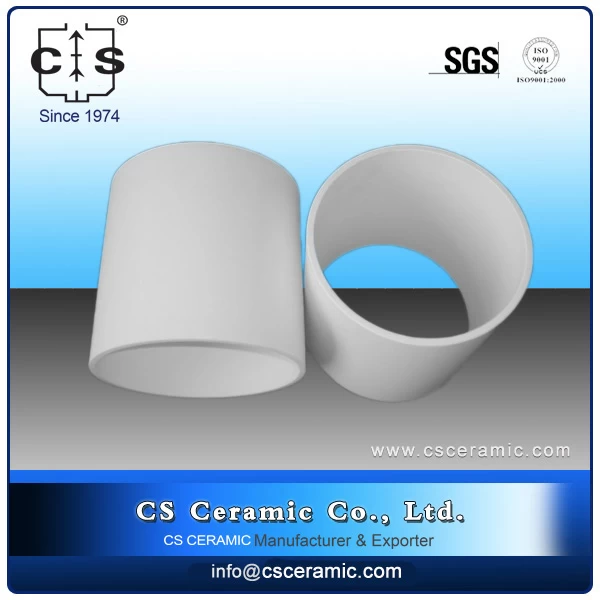

Product Item: 99% Alumina Ceramic Liners High Precision
Advantage:
1.High wear resistance
2.Corrosion resistant
3.Reduced wall thicknesses increase the piping bore size resulting in improved processing capacity and reducing pumping energy costs
Extended asset life results in less down time, reduced frequency of change out and lower maintenance costs across the lifetime of the asset
4.Customised solutions using monolithic pieces to eliminate potential wear weak points often found in inferior systems
|
Properties
|
Unit
|
CHEMSHUN 92
|
CHEMSHUN 95
|
|
Al2O3
|
％
|
92
|
95
|
|
Density
|
g/cm3
|
3.6
|
3.65
|
|
Moh’s Hardness
|
Grade
|
9
|
9
|
|
Products
|
Size in mm (L*W*T) or (S*T)
|
|
Ceramic square tile
|
10*10*2~10, 17.5*17.5*2~15, 20*20*2~20, 33*33*5~25 etc
|
|
Alumina Tile
|
6*3~6, 11*3~25, 12*3~25,19.05*3~25
|
|
Ceramic block
|
32*32*32, 40*40*40
|
|
Hex/square tile mats
|
150*150, 300*300, 500*500
|
|
Material of mats
|
Paper, nylon mesh, acetate cloth etc.
|
Special offer: Most of our crucibles are produced to order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
