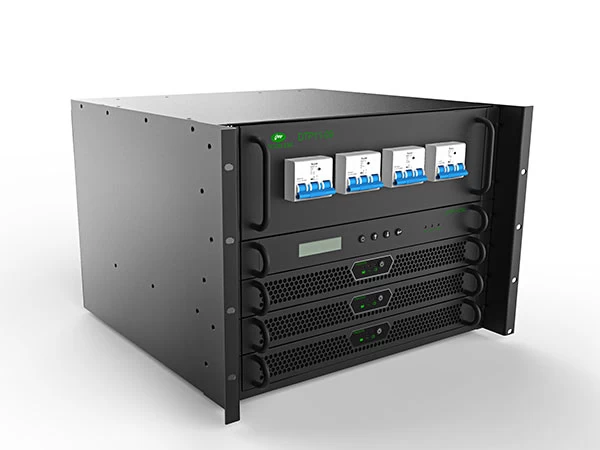

9KVA 48V Modular Inverter

Modular architecture
System power: 9KVA
Module power: 3KVA
Dimension (H×W×D) mm: 320*442*420



Overview

Sicon DTP-09 Modular Inverter is pure sine wave, single phase, DC-AC inverter for critical telecom and electric power equipments. The DC input could be 48Vdc,110Vdc or 220Vdc.It is modular architecture,consisting of system rack and inverter modules, which could configure various power capacities by adding modules. With N+1 redundant design, if one inverter fails,it will withdraw from the system and the inverter system keeps supply to load.

· Versatile modular inverter system provides flexible power for telecom applications
· Expandable capacity up to 9kVA | inverter module 3kVA
· “All master” dynamic mechanism eliminates single point failure to optimize reliability
· Hot-swappable operation allows module addition or removal without powering down
· High power density and high efficiency


Feature

   1.Monitor module and inverter module are all hot swap, with self-detection and alarm function
   2.User friendly LCD+LED, accurate display of system operation statues
   3.Performance index indication and display, event record for failure tracing
   4.Protection functions: input/output under or over voltage,overload protection to protect load equipment
   5.System transfer: fast transfer under synchronize or non-synchronize
   6.Communication interface: output dry contact, RS232/485
   7.DC priority or AC priority(bypass) are available. And user could choose one as priority in monitor module.
Application

   Telecommunication station, electrical substation and environments with poor utility grid conditions.
