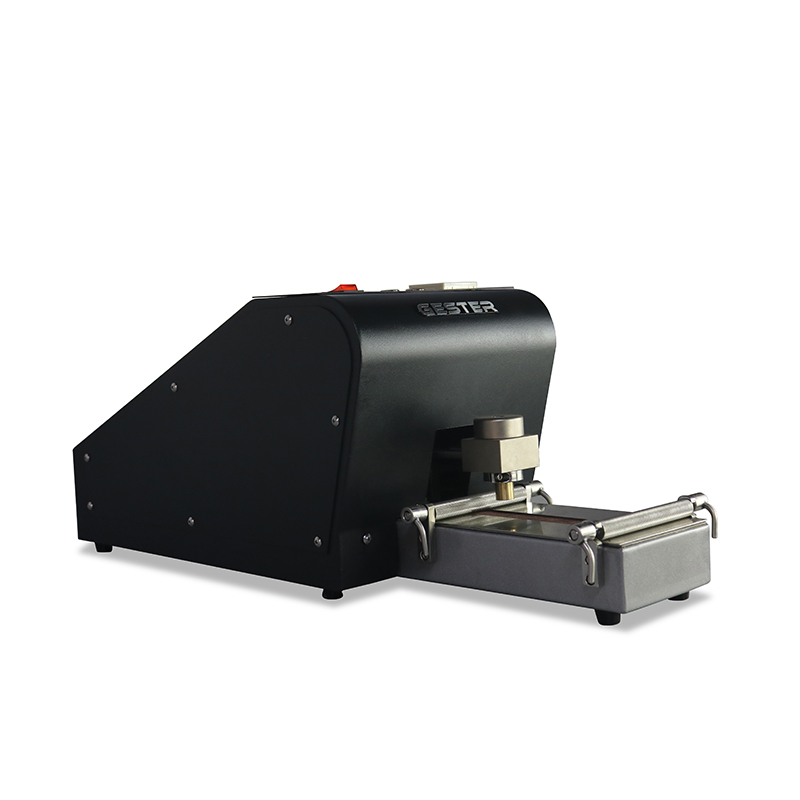

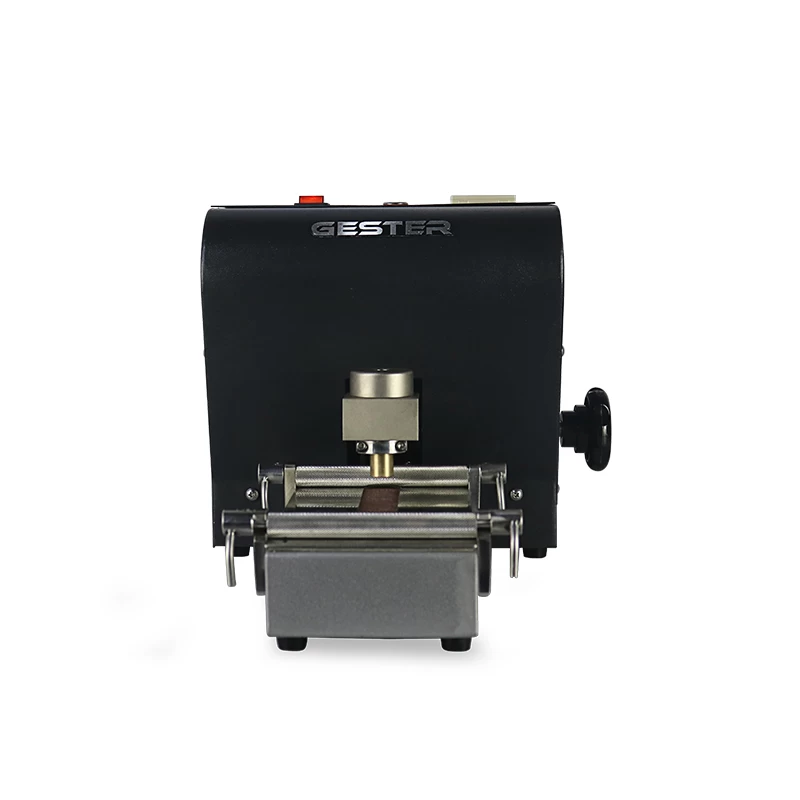

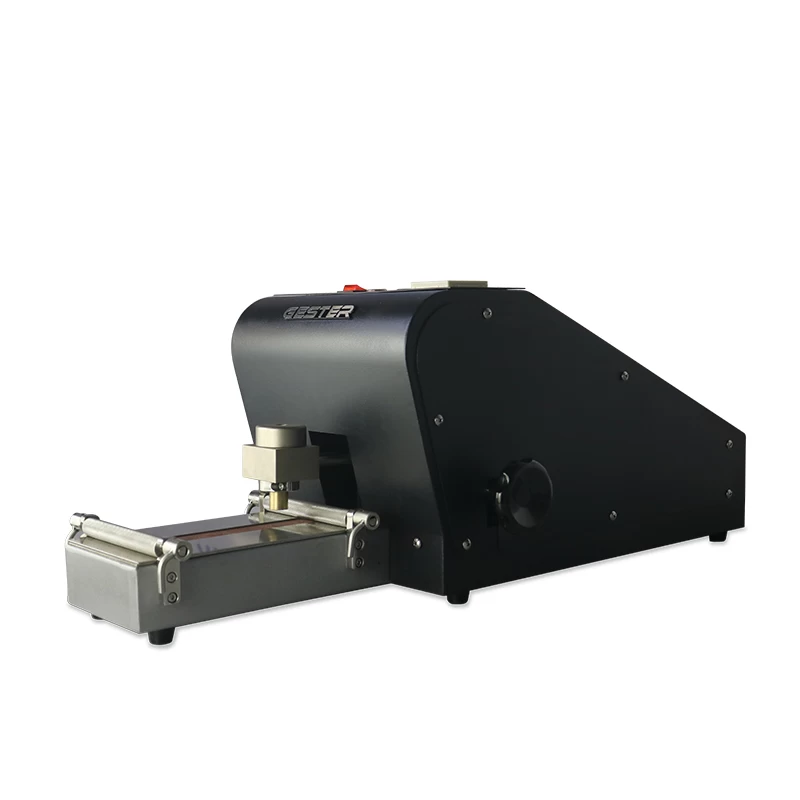

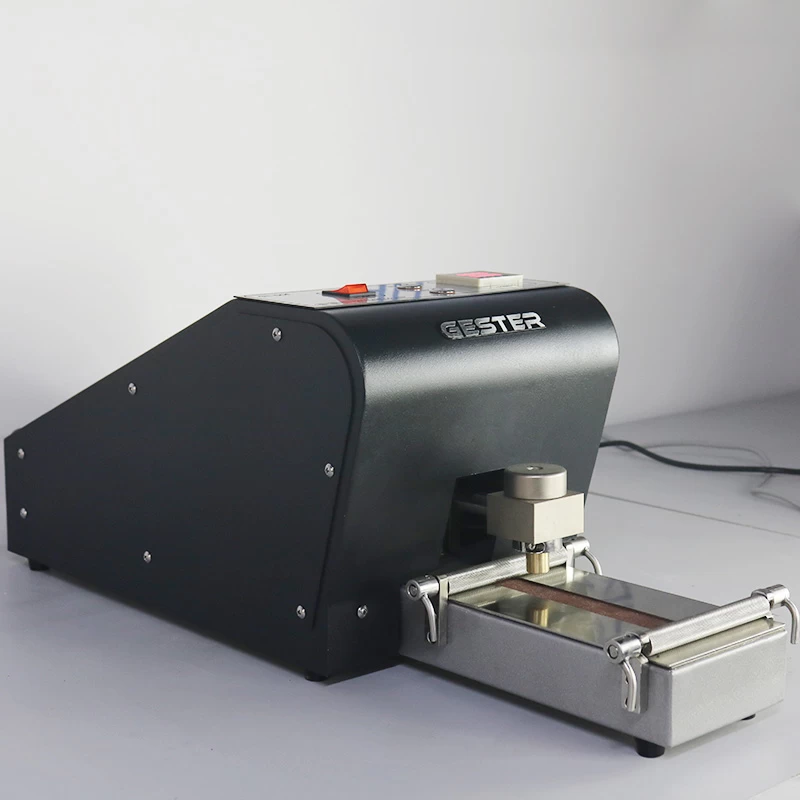

Electronic Crockmeter GT-D04
Product Introduction of Crockmeter
| Application of Electronic Crockmeter:

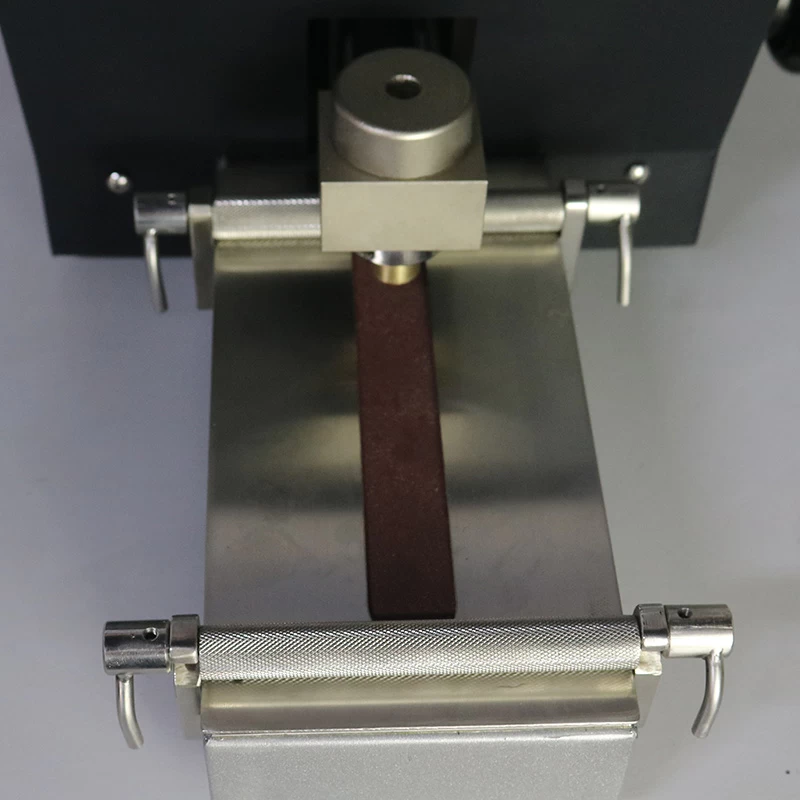

Electronic Crockmeter is used to determine the colour fastness of textiles to dry or wet rubbing. A pinned acrylic sample holder ensures rapid sample mounting and repeatability of results.
Standards of Electronic Crockmeter:
BS 1006- D02, ISO 105- X12/D02, AATCC 8/165, ASTM D6279, JIS L 0849 Type1,JIS L 0862 Type1
|

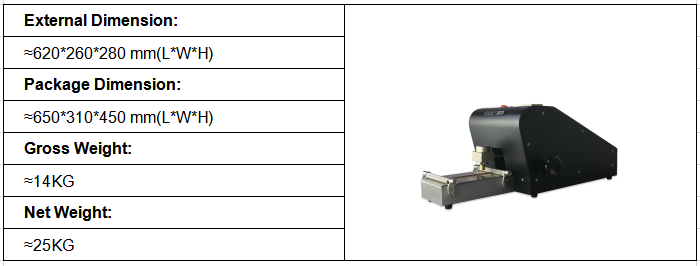

Dimensions of Crockmeter

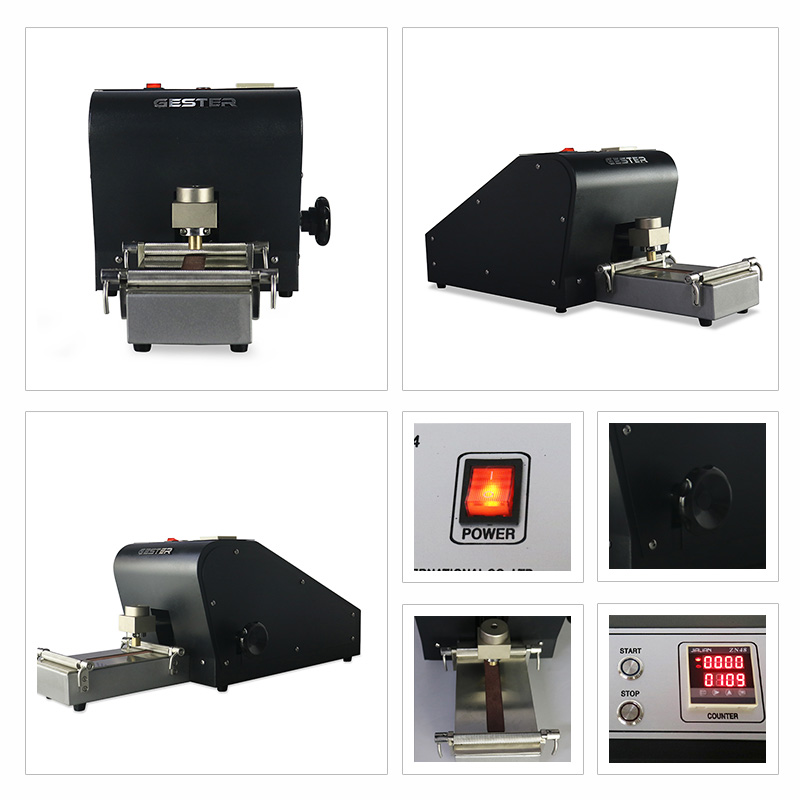

Feature of Crockmeter
- Metal box, High-temperature baking coating, easy maintenance.
- Electric motor, fitted with a pre-determined electronic counter for strokes up to 9999, experiment complete successfully, automatic stop.
Key Specifications of Crockmeter
Rubbing head diameter
|
16mm
|
Vertical pressure
|
9N±0.2N
|
Rubbing head track
|
104±3mm
|
Test speed
|
60±2 rpm
|
Power supply
|
AC 220V 50/60HZ
|
Dimension ( L x W x H )
|
62 x 26 x 28cm
|
Weight
|
14kg
|
Control mode
|
Electronic control
|
Accessories of Crockmeter
Standard accessories
|
1box
|
Rubbing cloth
|
|
2pc
|
Sand paper
|
|
2pc
|
Rings
|
|
1pc
|
Power line
|
Optional accessories
|
Optional
|
Gray Scale for staining
|
Application Industry of Crockmeter
All kinds of textile materials can be tested on the AATCC Electronic Crockmeter.
Video of CROCKMETER
