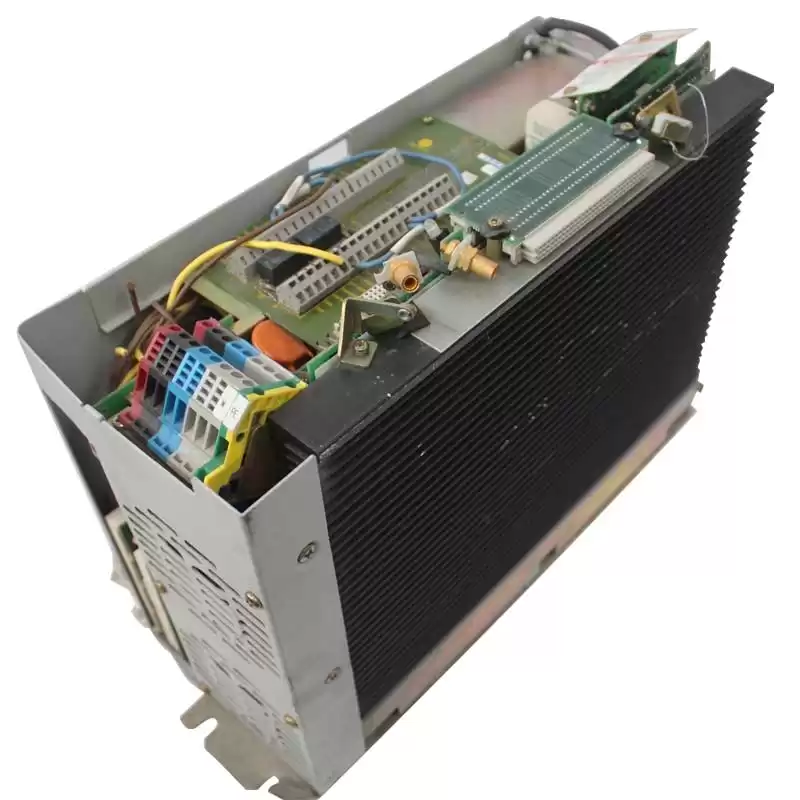

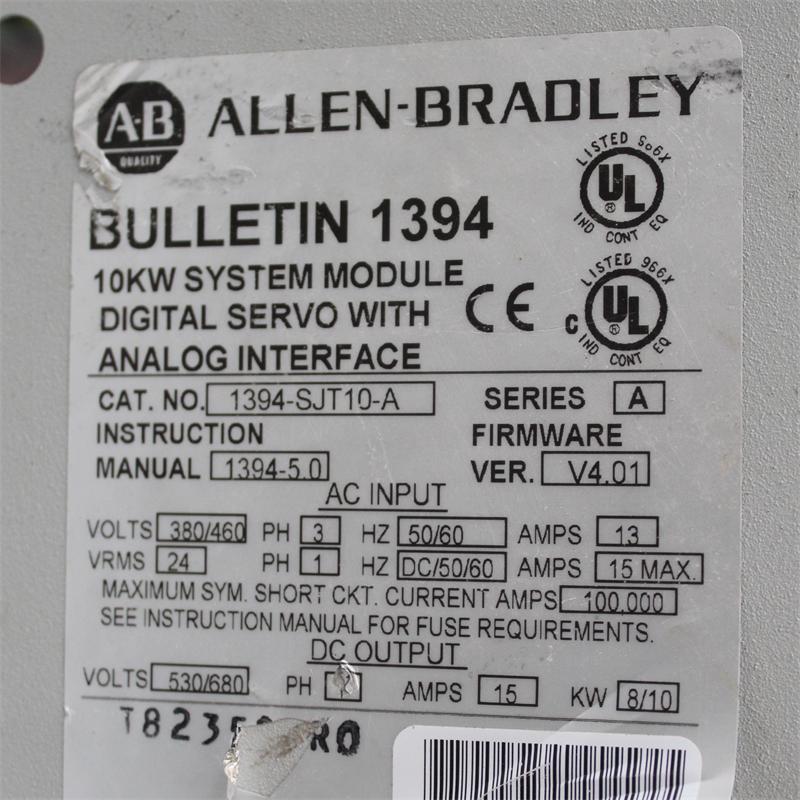

1394-SJT10-A Product Overview:

There are several things that you need to take into account when

preparing to mount the 1394:

• The ambient temperature of the location in which you will install

the 1394 must not exceed 50° C (122° F).

• You must install the panel on a flat, rigid, vertical surface that won’t be subjected to shock, vibration, moisture, oil mist, dust, or corrosive vapors.

• You have to mount the system vertically.

• You need to maintain minimum clearances (see Figure 2.1) for proper airflow, easy module access, and proper cable bend radius.

Refer to Appendix A for mounting dimensions, power dissipation, and environmental specifications for the 1394.
