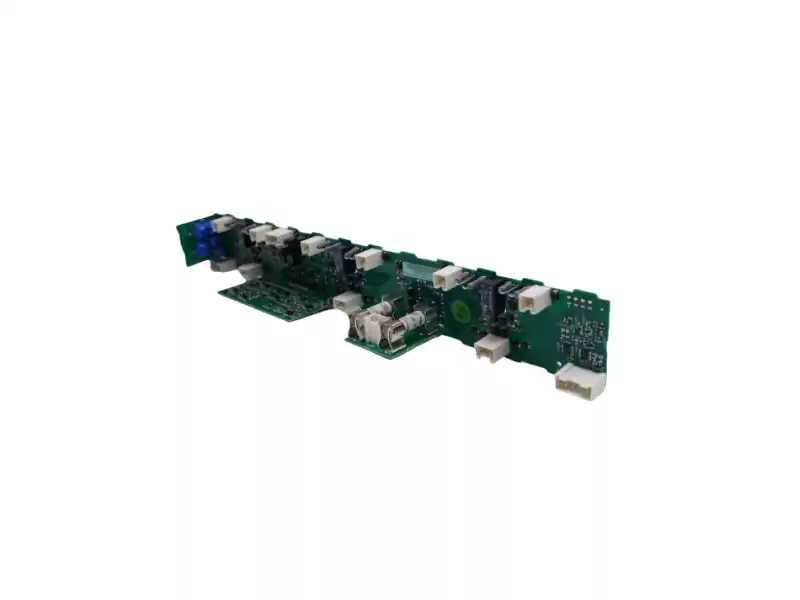

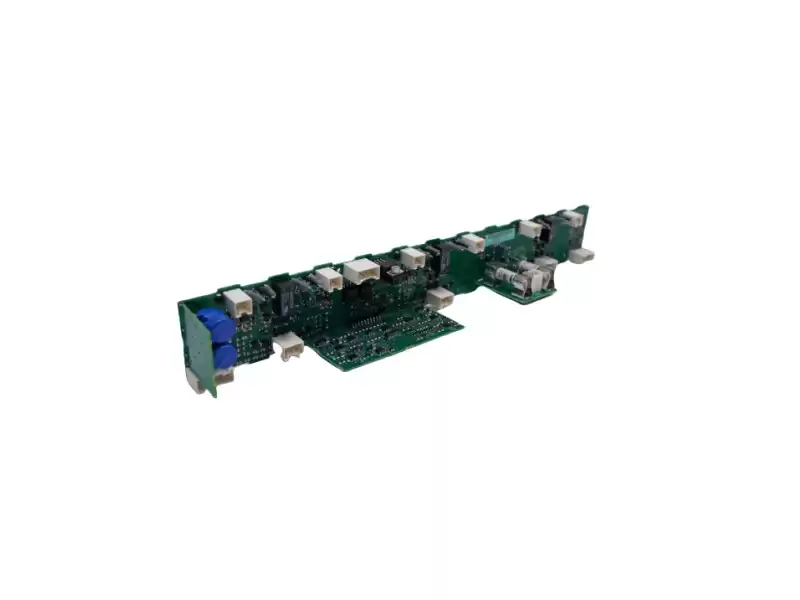

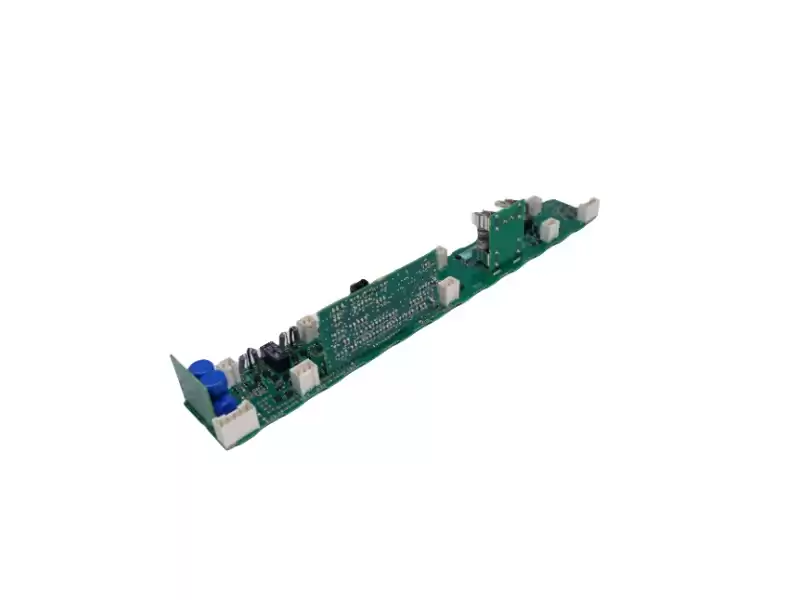

ABB | DSMB-02C | Control Board
What is the DSMB-02C Control Board?
The DSMB-02C is the high-current "co-pilot" within the ACS880-104 chassis (≥ 250 kW):
it samples the DC bus voltage, output current (via the LEM), and IGBT temperature, then transmits this
data to the control CPU via a duplex optical fiber—no additional wiring or EMI concerns.
DSMB-02C Technical Specifications
u ABB Type Designation： DSMB-02C
u Description DSMB-02C： CONTROL BOARD
u 1 piece Minimum Order Quantity
u 1 piece Order Multiple
u Container Information
u 0.01 m³ Gross Volume
u 0.3 kg Product Net Weight
DSMB-02C Features
Real-time monitoring of motor and drive operating status (voltage, current, temperature, load, etc.).
Triggers protection logic for overvoltage, undervoltage, overcurrent, overtemperature, ground fault, and more.
Automatically loads the program upon drive power-up to ensure the drive operates according to the programmed logic.
The DSMB-02C serves as the core control board and can be connected to various expansion boards (DSAI, DSAB, RECA, etc.)
to expand I/O, communication, and functional safety (STO) capabilities.
