What is the FS300R12KE3 AGDR-72C S 68569541?

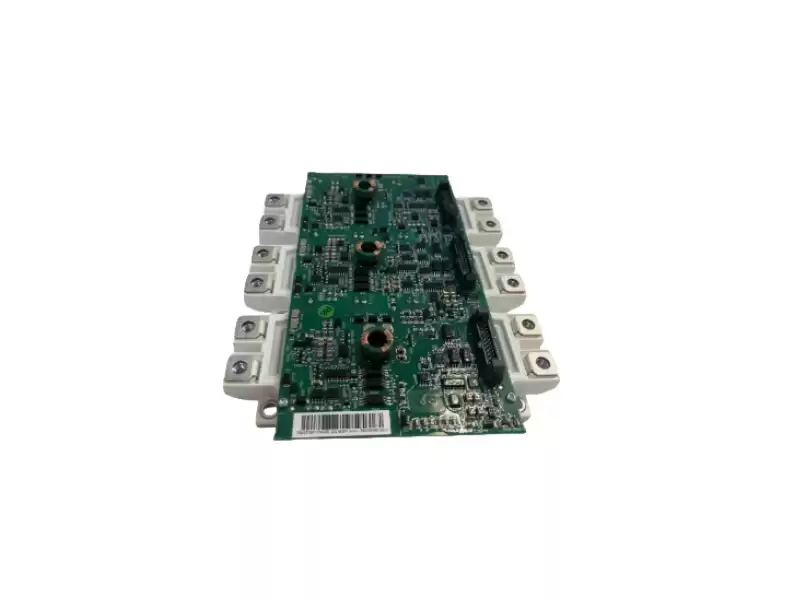

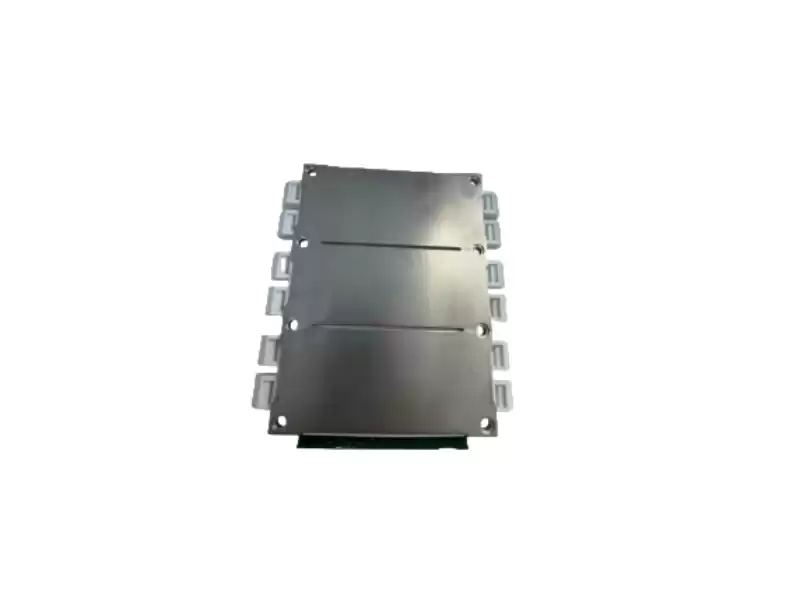

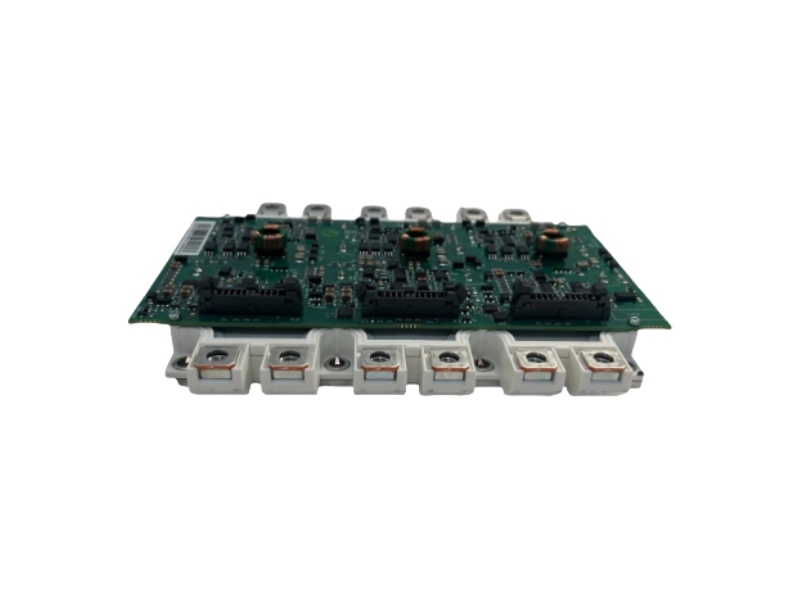

The FS300R12KE3 AGDR-72C S (product number: 68569541) is a high-performance IGBT module
kit from ABB designed specifically for its ACS800-104 series inverters. It is widely used in industrial drives,
wind power generation, and other high-power inverter systems.
|
Main technical parameters
|
|
IGBT Module Model:
|
FS300R12KE3
|
|
Gate Driver Board Model:
|
AGDR-72C
|
|
Rated Voltage:
|
1200 V
|
|
Rated Current:
|
300 A (Continuous), 600 A (Peak)
|
|
Repetitive Peak Collector Current:
|
600 A (1 ms Pulse)
|
|
Gate-Emitter Voltage:
|
±20 V
|
|
Gate Threshold Voltage:
|
5.0 V to 6.5 V
|
|
Gate Charge:
|
Approximately 2.70 µC
|
Applications
This IGBT module kit is suitable for the following applications:
u Medium-voltage drive systems
u Inverters
u Power converters
u Frequency converters
u Uninterruptible power supply (UPS) systems
u Solar inverters
u Welding machines
u Induction heating equipment
