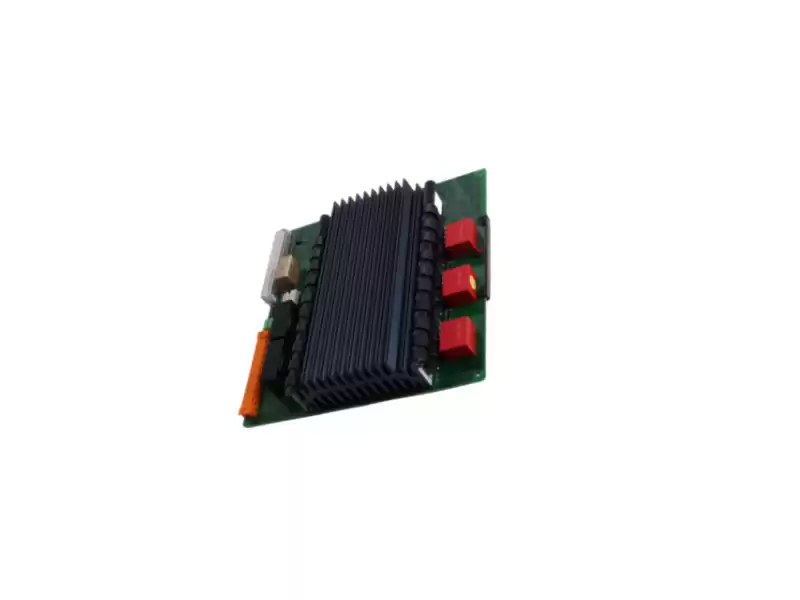

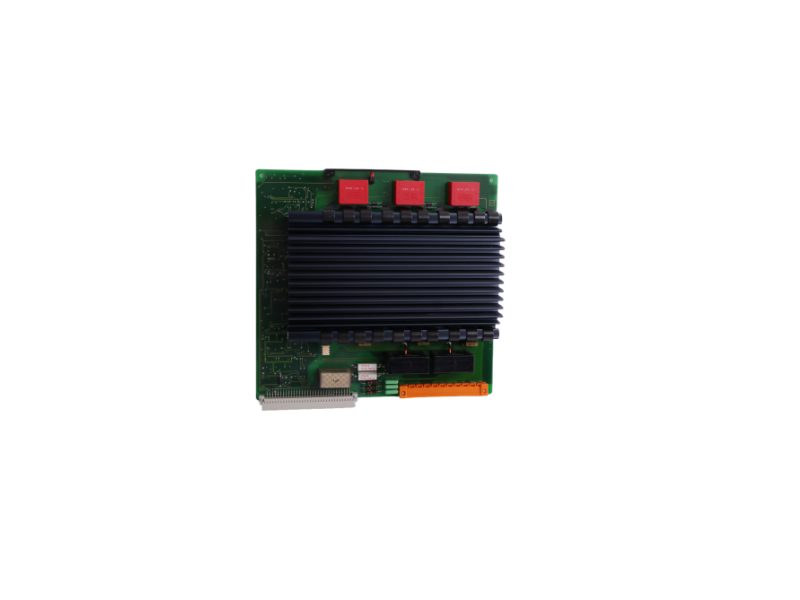

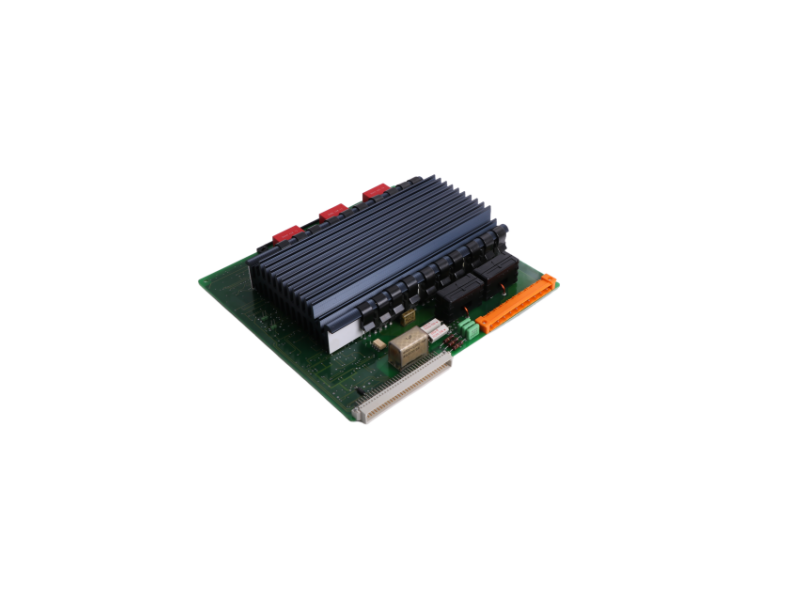

Data Sheet: ABB DSQC236T Axis Drive Board (YB560103-CE)
Purpose
DSQC236T is a 5-axis servo-drive board for ABB S3/S4 controllers, providing closed-loop current and velocity control for each axis.
Key Specifications
• Axes Supported: 5 servo axes (±10 V command)
• Max Current: 20 A peak per axis
• Current Loop: 10 kHz bandwidth
• Encoder Interface: 5 × differential RS-422, 1 MHz
• Supply: 24 V DC logic / ±15 V DC analog
• Protection: Over-current, short-circuit, thermal shutdown
• Dimensions: 100 × 160 × 20 mm
• Operating Range: –20 °C … +70 °C
• Certifications: CE, UL, CSA Class I Div 2
Real-World Scenarios
• Retrofit CNC lathes with robotic loading arms
• High-speed glue-dispensing gantry robots
• Low-headroom material-handling shuttles
• Test-bench servo rigs for university labs
Ready-to-Ship Related Items
| Function | Part Number |
| Axis Drive Board | DSQC236T (YB560103-CE) |
| Battery Pack | 3HAC044075-001 |
| Motor Cable | 3HAC028357-027 |
| Power Supply | 3HAC029157-002 |
| Teaching Pendant | 3HAC028357-027 |
All items factory-sealed, same-day dispatch.
