Data Sheet: ABB DSQC256A 3HAB2211-1 Axis & I/O Control Module
Purpose & Position

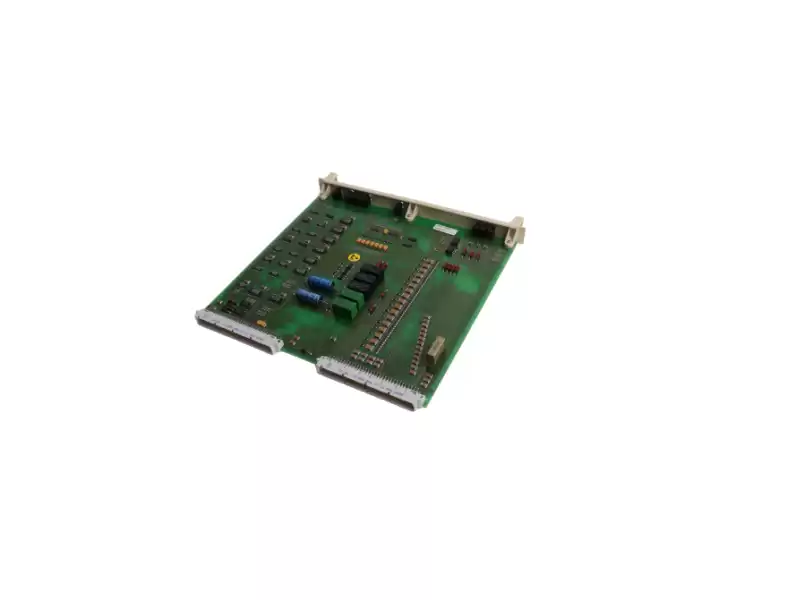

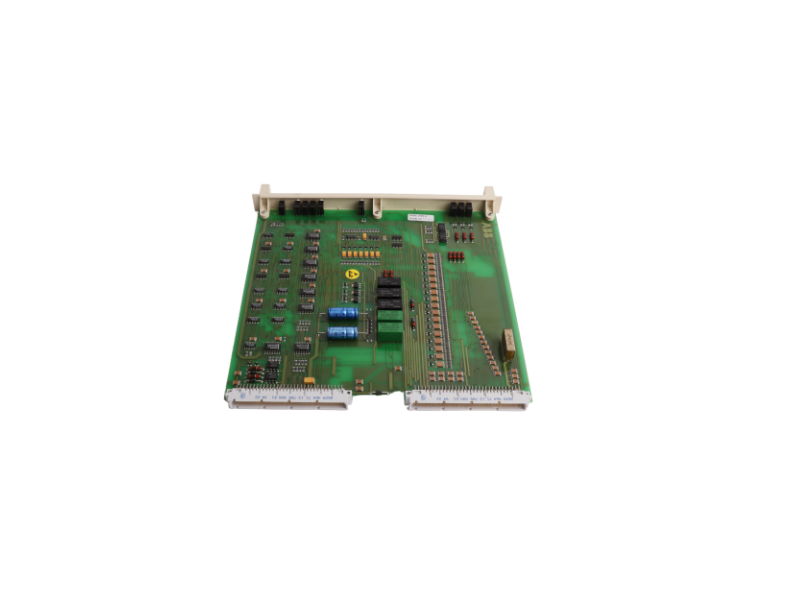

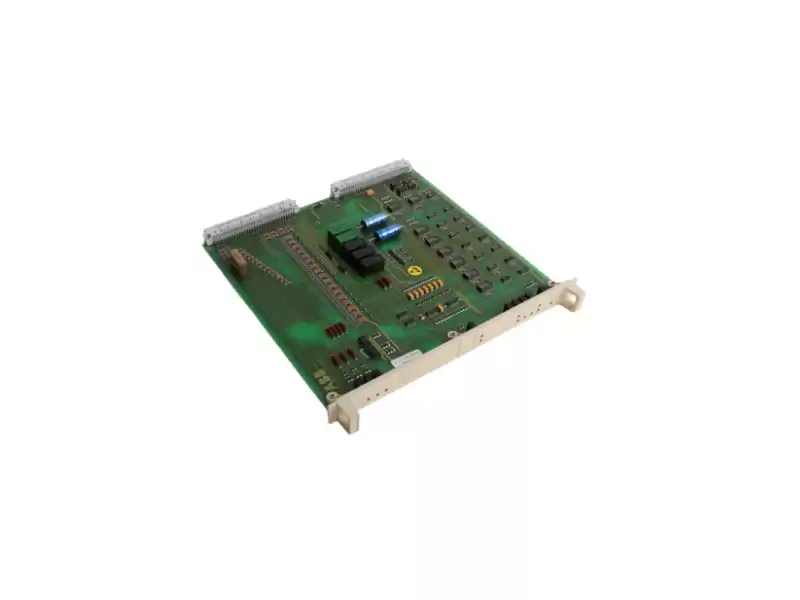

DSQC256A (part no. 3HAB2211-1) is a multi-function control card used inside ABB S3 / S4 robot controllers. It hosts motion algorithms, servo-loop closure, and mixed I/O interfacing for up to 6 axes and 16 digital channels, all on a single 3U Eurocard.
Distinctive Features
• One-card motion + I/O – reduces rack slots by 30 % compared to separate axis and I/O cards.
• Absolute encoder battery backup – retains robot position for > 48 h after power loss.
• Hot firmware reload – firmware update via serial port without removing the card.
• Spring-cage terminals – accept 0.2–2.5 mm² wire, no ferrules needed.
Typical Applications
• IRB 140 / IRB 2400 welding cells
• IRB 4400 palletizing lines
• IRB 6400 press-tending systems
• Retrofit of legacy S3/S4 controllers to extend service life
Ready-to-Ship Related Modules
|
Function
|
Part Number
|
Note
|
|
Axis Card
|
3HAB2211-1
|
DSQC256A (this SKU)
|
|
I/O Expander
|
3HAB2211-8/1
|
DSQC256B – adds 16 more digital I/O
|
|
Encoder Cable
|
3HAC031851-001
|
5 m motor-resolver lead
|
|
Power Supply
|
3HAC029157-002
|
24 V DC, 5 A DIN-rail
|
|
Teach Pendant Cable
|
3HAC028357-027
|
10 m pendant-to-controller
|
|
Battery Pack
|
3HAC044075-001
|
3-cell lithium for absolute encoder
|
All items are factory-sealed and available for same-day global dispatch from PLC Autocontroller.
