ABB FS450R17KE3 + AGDR-71C S (68569591) IGBT Kit – Ready to Ship from PLC Autocontroller
20 Years of Automation Spare-Parts Expertise
1. One-Sentence Summary

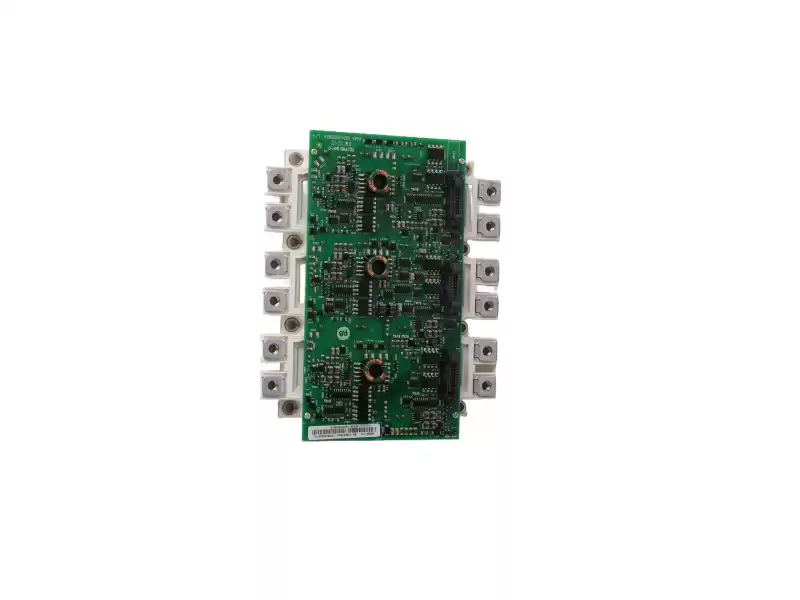

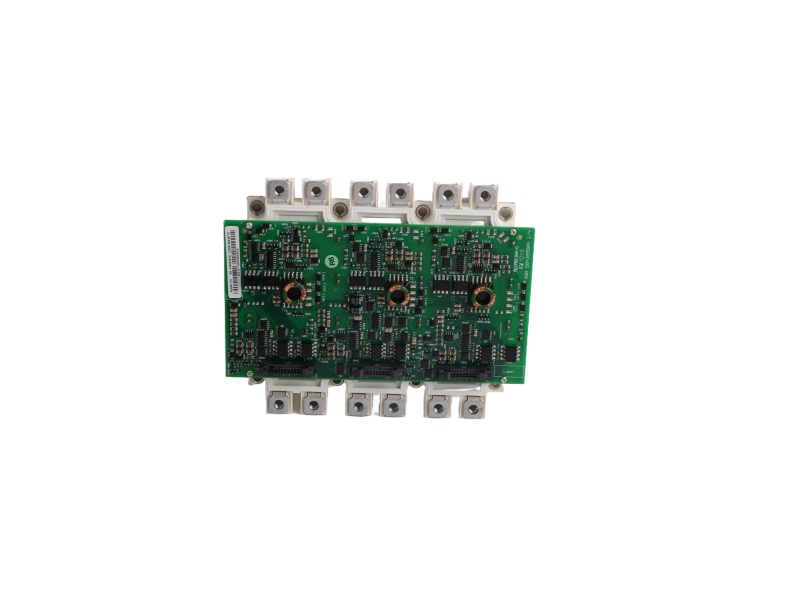

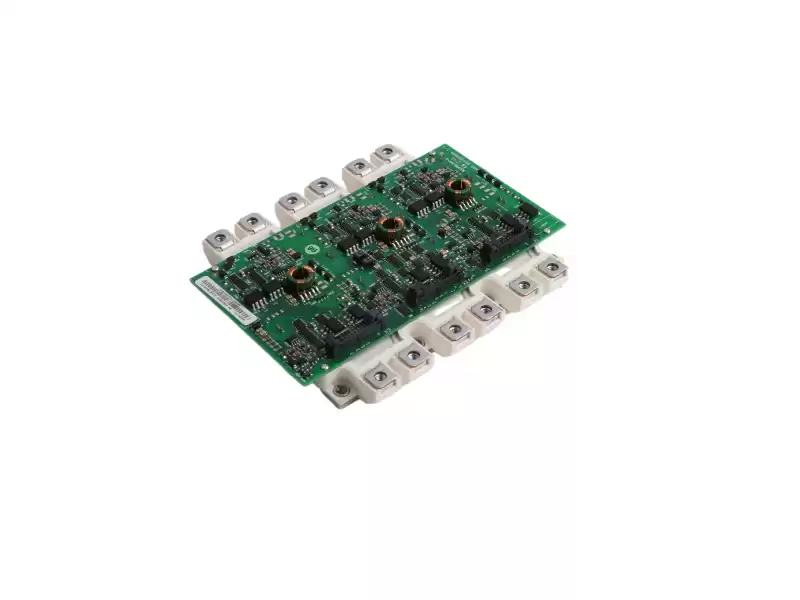

FS450R17KE3 / AGDR-71C S is ABB’s ready-to-mount 450 kW, 1.7 kA IGBT kit that plugs straight into ACS800-104 multidrive frames R7i/R8i, giving you a fast, factory-matched repair that slashes Mean-Time-to-Repair (MTTR).
2. Technical Snapshot
|
Key Data
|
Value
|
|
Part-number
|
68569591 (kit) – includes FS450R17KE3 & AGDR-71C S driver
|
|
VCE (blocking)
|
1.7 kV
|
|
IC cont. / 1 min
|
1.7 kA / 2.04 kA
|
|
Max switching freq.
|
2 kHz … 16 kHz
|
|
Isolation
|
4 kV RMS primary – heatsink
|
|
NTC inside module
|
Yes (AGDR-71C reads it)
|
|
Weight (complete kit)
|
≈ 3 kg
|
|
Frame sizes supported
|
ACS800-104-0320-7 … 0580-7 (+V991)
|
3. Cross-Reference & Compatibility
|
Replaced ABB Kits
|
Alternative Part-No.
|
|
FS450R17KE3 / AGDR-81C S
|
68444217 (3AUA0000109339)
|
|
FS450R17KE3 / AGDR-72C S
|
68569427
|
|
FS450R17KE3 / AGDR-61C S
|
64783831
|
Tip: always swap the ribbon cables (codes 68869625 / 68870089 / 68692172) when you exchange the IGBT – ABB field-service bulletin R8i-IB-22.
4. Why Buy from PLC Autocontroller?
100 % original ABB factory-sealed kits, never refurbished
12-month warranty, extendable to 24 months on request
FedEx / DHL same-day dispatch, global customs paperwork handled by us
Technical hot-line: wiring diagram, torque values, pre-power checks – free
Need a Quote in 30 Minutes?
Sales Manager: May
E-mail: ab@mooreplc.com
WhatsApp / Phone: +86-18106909650
WeChat ID: dcsfcs
Send us your drive serial number and we will confirm the correct ABB kit revision before you order.
What happens next?
-
-
-
Your quote
You’ll get a fully customized quote to fit your unique needs.
-
