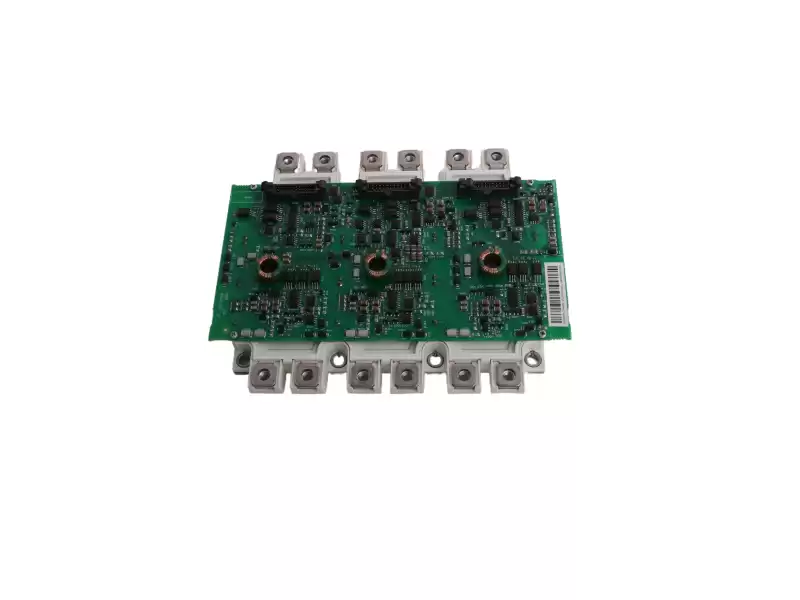

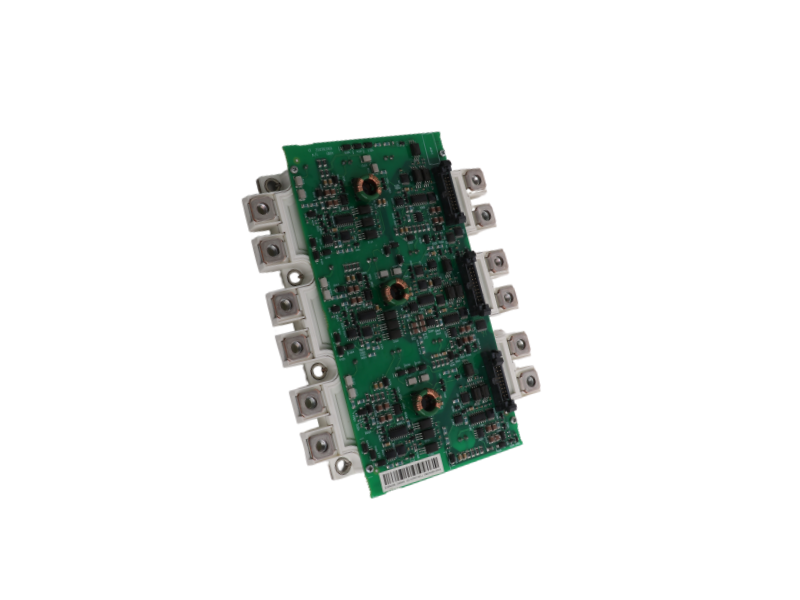

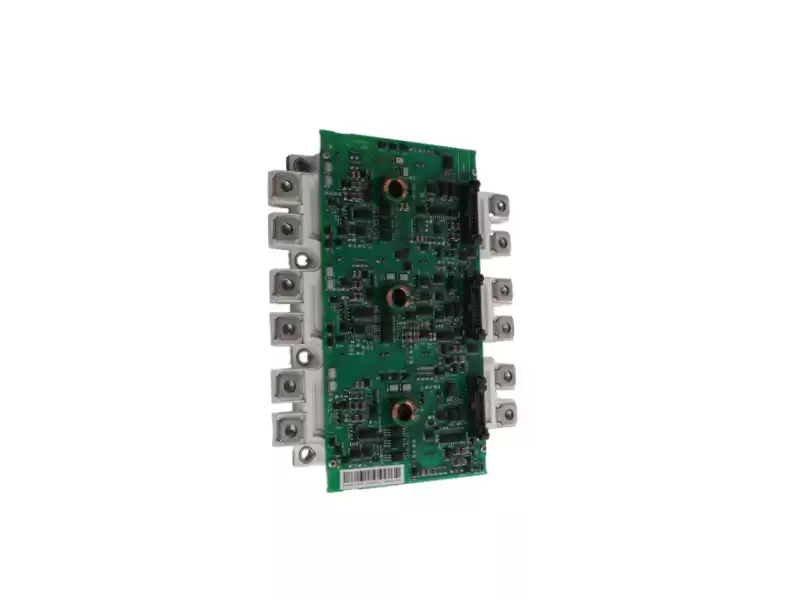

450 A, 1 700 V “single-stack” kit for ACS800-104 R7i / R8i cabinets
Shipped within 24 h by PLC Autocontroller – 20 years of automation-spare expertise
① What problem does it solve?
Blown stack? – Complete kit (IGBT, driver, thermal pad) arrives ready-built; no on-site matching.
Missing drawings? – Pre-wired ribbon cables and guide pins = zero wiring errors.
Downtime penalties? – Built-in NTC + DESAT send trip data straight to the CPU; fault found in < 5 min.
② Key data at a glance (Tj = 25 °C unless stated)
|
Item
|
FS450R17KE3 module
|
AGDR-72CS driver
|
|
Repetitive VCES
|
1 700 V
|
—
|
|
DC current, Tc = 80 °C
|
450 A
|
—
|
|
10 ms non-rep. IC
|
900 A
|
—
|
|
VCE(sat) typ.
|
2.05 V
|
—
|
|
Switching range
|
—
|
2 ... 16 kHz (default 4 kHz)
|
|
Isolated supply
|
—
|
+15 V / −7 V, 2 W
|
|
Protection time
|
—
|
DESAT < 2 µs, NTC 3 °C hysteresis
|
|
Case temperature
|
−40 ... +125 °C
|
−40 ... +70 °C
|
|
Foot-print
|
160 × 65 × 20 mm
|
120 × 55 × 18 mm
|
|
Weight
|
2.3 kg
|
0.5 kg
|
③ Field-proven snapshot
|
Industry
|
Load
|
Per-cabinet power
|
Observed MTBF
|
|
Municipal waste-water
|
6 × 22 kW submersible pumps
|
132 kW
|
> 82 000 h
|
|
BOPP film line
|
75 kW extruder main
|
75 kW
|
> 65 000 h
|
|
Port crane
|
90 kW hoist & travel
|
180 kW
|
> 55 000 h
|
④ Three-step swap (average 9 min on site)
1. Power down – wait until DC < 50 V (on-board LED OFF).
2. Undo 4 × M5 screws & 2 ribbons – slide old stack out.
3. Stick new thermal pad (included) – insert new stack – torque 4 screws – reconnect ribbons – self-test OK.
⑤ Order & support
ABB order code: 68569427 (full kit with pad, screws, desiccant bag)
Stock location: Xiamen bonded warehouse – ships within 24 h
Warranty: 12 months, extendable to 24 months
Docs: Original ABB instruction book + our 1-page Chinese “3-step swap” card shipped together
Need a quote or BOM check?
Sales Manager: May
E-mail: ab@mooreplc.com
Mobile / WhatsApp: +86-18106909650
WeChat: dcsfcs
Send us your ACS800 serial number – we’ll confirm the correct revision within 30 min and make sure your first-time fix is the last-time fix.
