Turn old ACS800-17/37 cabinets into "digital natives" – hot-swap in 3 min and walk away with AFE rectification + SIL3 safety credentials.
① Core highlights at a glance
|
Highlights
|
Value
|
Industry benefit
|
|
Processor
|
64-bit dual-core ARM
|
2.3× more horsepower, 16 kHz PWM with headroom
|
|
Ethernet
|
5 isolated ports
|
2× GigE + 3× Fast, run protocols in parallel—no switch
|
|
Memory
|
2 GB eMMC
|
30-day curve buffer, one-click USB export
|
|
Operating temp.
|
-40…+85 °C
|
Same batch for offshore rigs or plateau wind farms
|
|
Conformal coating
|
3C3 level
|
Immune to salt mist and H₂S
|
② Compatibility snapshot
ACS800-17 (AFE) & ACS800-37 (LC) click straight in; ACS800-07 keeps the back-plane—reuse existing cables. ACS800-01/04 and ACH550 are physically or electrically different—swap to RDCU-02C or upgrade the whole drive.
③ Safety & approvals
STO/SS1/SLS/SDI all rated SIL3/PLe, reaction ≤ 5 ms, TÜV cert 968/EL 2023 116. Dual-channel read-back keeps the safety path intact even if one wire shorts.
④ 15-minute field upgrade
Power down → slide old board out → slide new board in → latch handles → power up. DriveSync App scans the QR, compares parameters, writes deltas; green LED steady = job done—no scope, no PC.
⑤ One-sentence takeaway

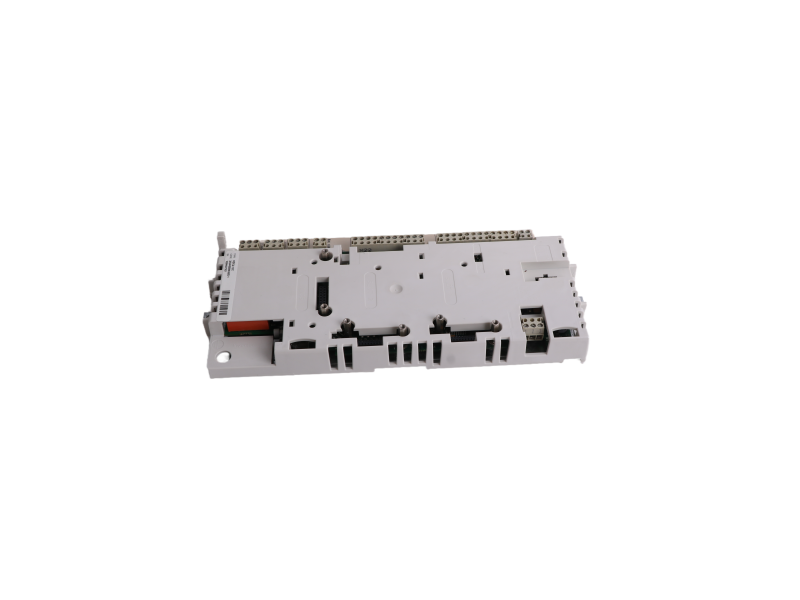

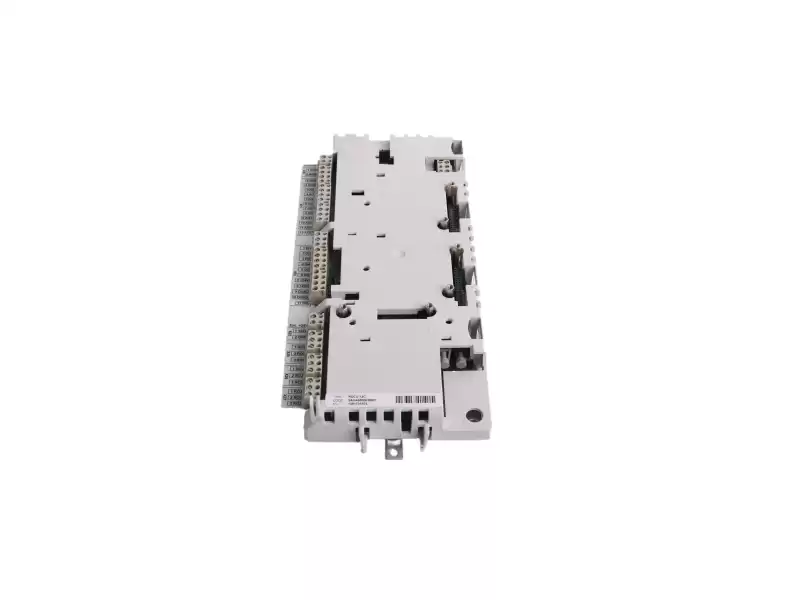

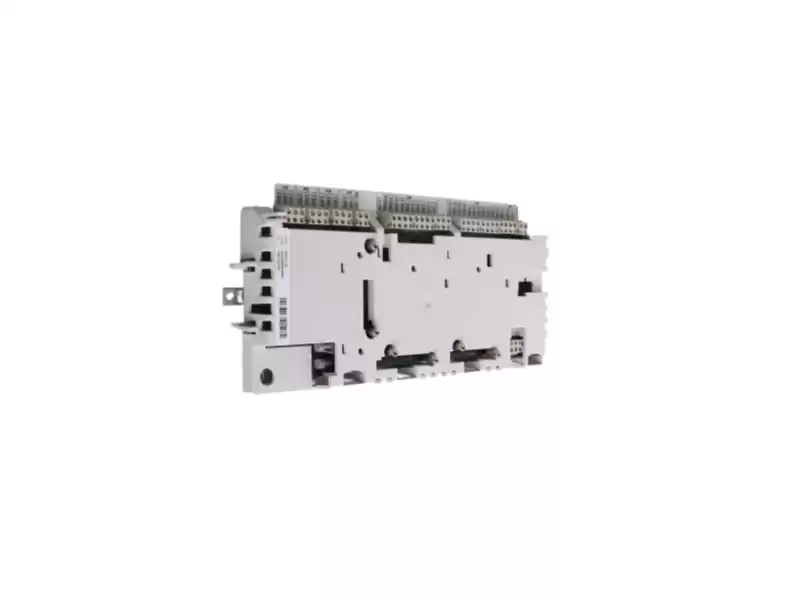

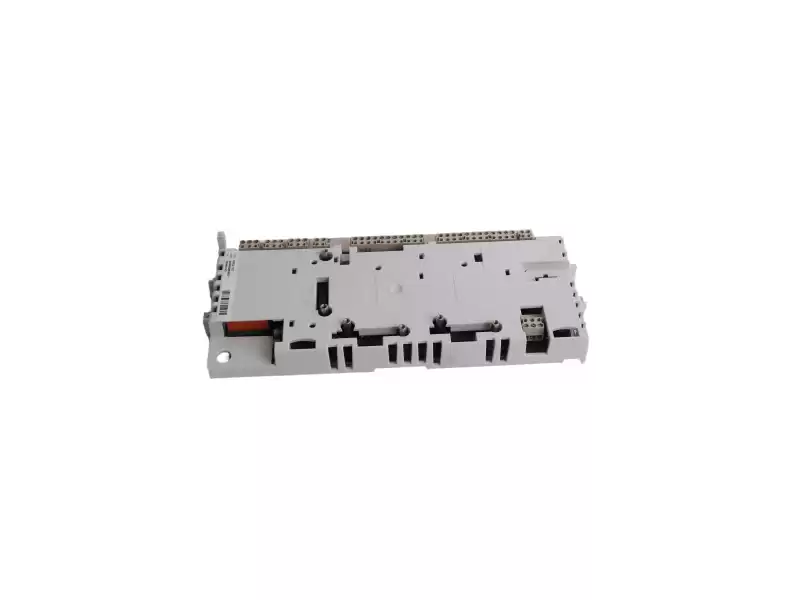

RDCU-12C = AFE pass + Gigabit connectivity + cinematic data logging—your legacy cabinet just joined the IIoT world.
Contact May
ab@mooreplc.com | +86-18106909650 (WhatsApp) | WeChat: dcsfc
Send the ACS800 serial number—within ten minutes you’ll have firmware, licence and cable list.
