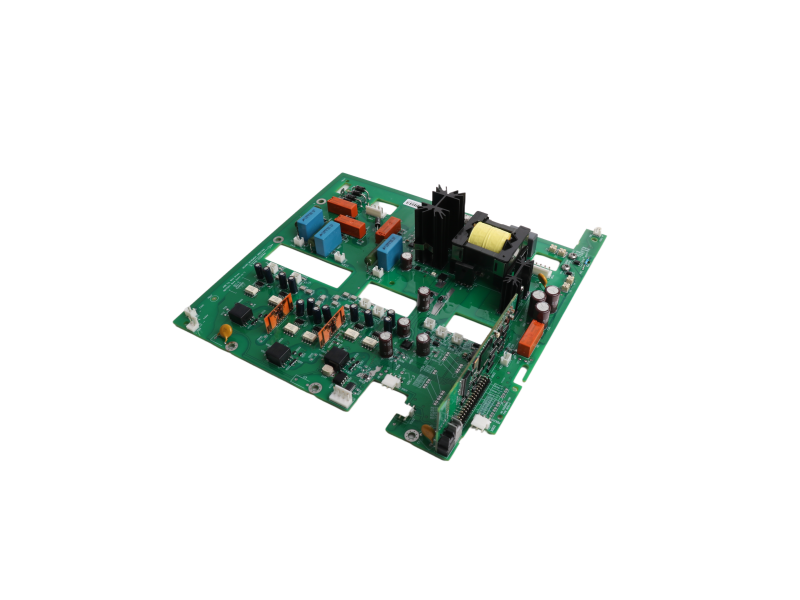

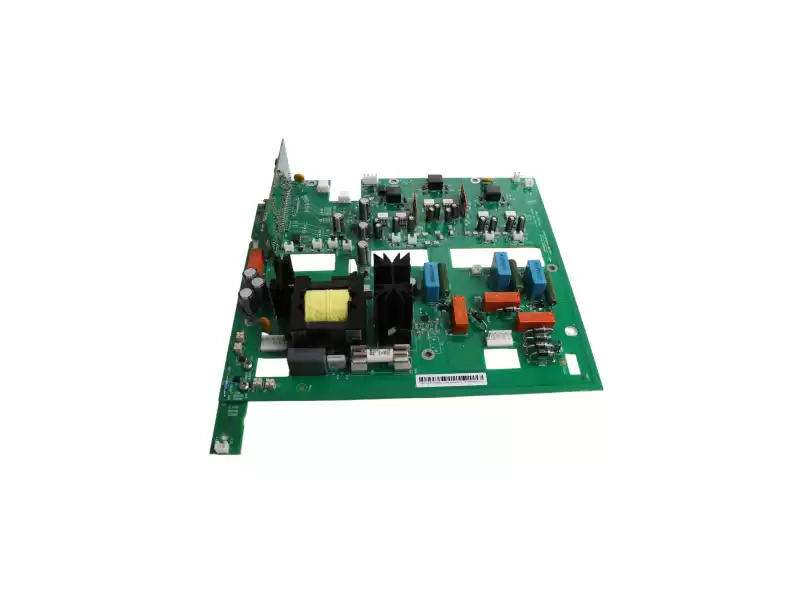

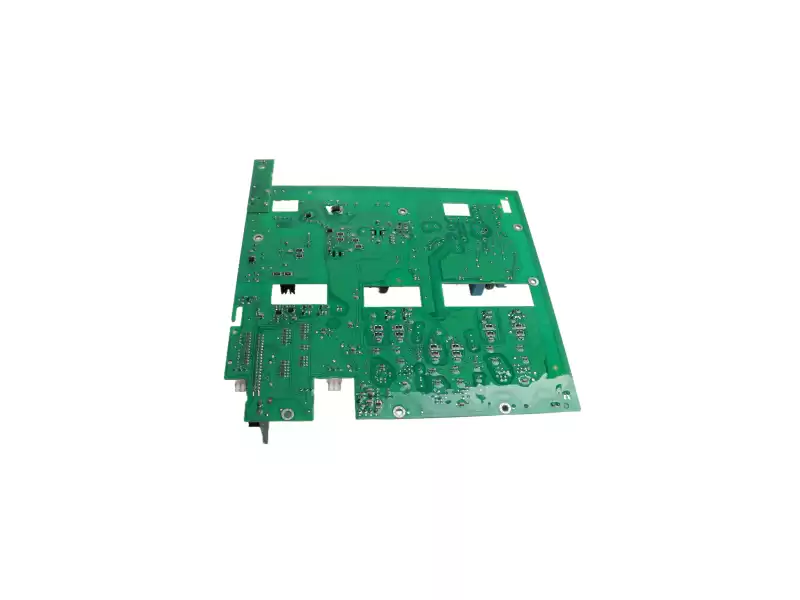

ABB RINT-6621C — Interface & Gate-Driver Board
One-minute read, figures from ABB manual and field tests.
① What it does in one sentence
RINT-6621C sits between the power stack and the fibre-optic link in ACS800-01/04/07, converts PWM pulses into gate-drive signals and feeds IGBT temperature, DC-bus voltage and fault status back to the main control—pure PPCS fibre, zero extra wiring.
② Key data at a glance
|
Parameter
|
Value
|
|
Gate channels
|
6 × IGBT (3-phase bridge)
|
|
Switching freq.
|
0.5 – 16 kHz (auto)
|
|
Isolated supply
|
24 VDC on-board DC/DC
|
|
Peak current
|
±15 A per channel (2 µs pulse)
|
|
Temperature
|
3 × NTC (IGBT, heatsink, ambient)
|
|
DC-bus voltage
|
1000 VDC max, 0.5 % accuracy
|
|
Fibre interface
|
PPCS, 62.5/125 µm, < 5 m
|
|
Operating temp.
|
–40 … +70 °C, IP20, 3C3 coating
|
|
Approvals
|
CE, UL, CSA, RoHS
|
③ 3-minute swap flow
|
Step
|
Action
|
Time
|
|
1
|
Power down, wait 5 min
|
2 min
|
|
2
|
Remove side cover, unscrew old board
|
1 min
|
|
3
|
Insert RINT-6621C, latch handle
|
30 s
|
|
4
|
Re-connect fibre & 24 V plug
|
30 s
|
|
5
|
Power up, green LED steady
|
10 s
|
④ Why pick this unit
Plug-and-play, no parameter change needed
100 % brand-new original, serial number traceable
12-month functional warranty; advance replacement available
Shipped from Xiamen stock today, DHL 3-4 days to EU/US
Contact May
ab@mooreplc.com | +86-18106909650 (WhatsApp) | WeChat: dcsfc
Send the drive serial number and receive the correct RINT-6621C revision within 30 min.
