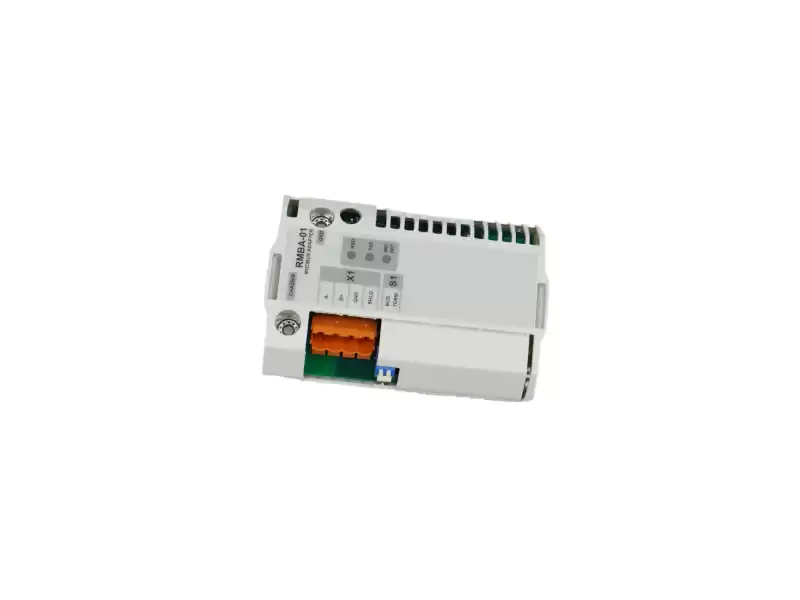

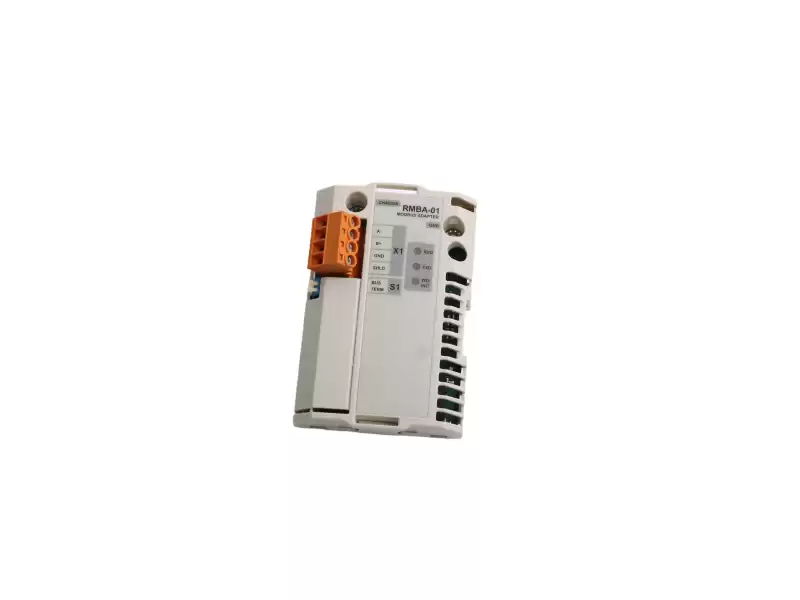

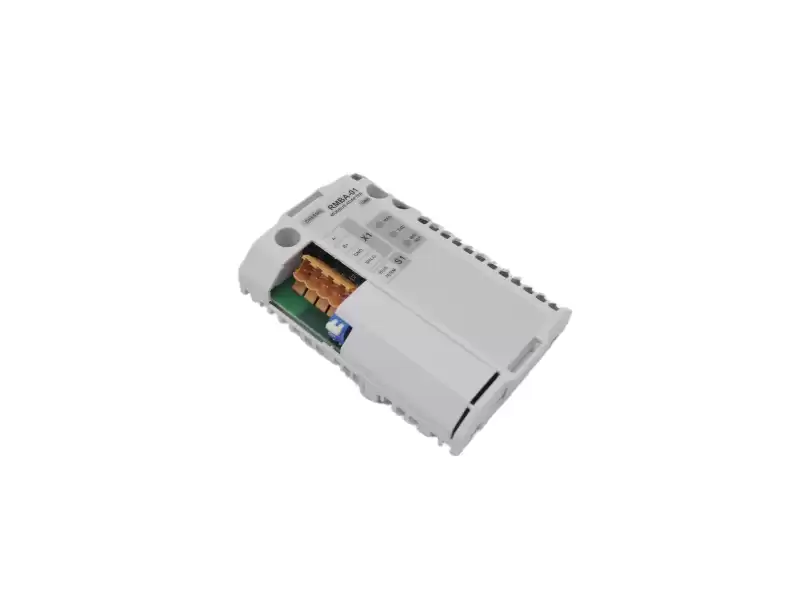

ABB RMBA-01 — RS-485 Pulse Distributor
Splits one fibre-optic encoder signal into four differential pulse trains for easy “one-to-many” synchronisation.
① About us – in one line
We have specialised in ABB drive spares for 20 years, stocking R-series interface boards, capacitors and fans in our Xiamen warehouse and offering small-lot spot supply plus technical selection support.
② What RMBA-01 does
Receives PPCS fibre-optic encoder signals (from AMC or AC 800)
Outputs 4 galvanically-isolated RS-485 differential channels (A/B/Z)
Cable length up to 1 200 m, no repeater needed
Auto-baud 9.6 k–12 M, no DIP switches
5 V / 24 V encoder level auto-detect, saving external converters
③ Key data
|
Parameter
|
Value
|
|
Input
|
PPCS fibre (62.5/125 µm)
|
|
Outputs
|
4 × RS-485 (A/B/Z)
|
|
Isolation
|
500 Vrms channel-to-channel
|
|
Baud rate
|
9.6 k–12 M, auto-detect
|
|
Cable length
|
≤ 1 200 m (twisted-pair, shielded)
|
|
Supply
|
24 VDC ±20 %, 3 W
|
|
Temperature
|
–25…+70 °C, IP20
|
|
Marks
|
CE, UL, RoHS
|
④ Companion interface boards in stock
|
Part
|
Brief function
|
Fits
|
Stock
|
|
RMBA-01
|
1→4 RS-485 pulse split
|
All ACS800/880
|
Spot
|
|
RDCO-0C
|
3-ch fibre expansion
|
ACS800 option slot
|
Spot
|
|
RINT-6611
|
Gate driver 400 A
|
ACS800-04 560 kW
|
Spot
|
|
RMIO-01
|
8 AI/AO extension
|
ACS880 cabinet
|
Spot
|
|
NPOW-41
|
24 V 5 A supply
|
ACS800 common DC
|
Spot
|
⑤ Typical wiring sketch
Fibre in → RMBA-01 → 4×RJ45 → 4×ACS880 inverters
Z-pulse wired in parallel for sync; A/B differential on shielded twisted-pair; 120 Ω termination built-in, no soldering on site.
⑥ Warranty & logistics
12-month functional warranty – advance replacement
Shipped from Xiamen same day, DHL 3-4 days to EU/US
Commercial invoice & certificate of origin included
Contact May
ab@mooreplc.com | +86-18106909650 (WhatsApp) | WeChat: dcsfc
Send us your encoder type and distance – we’ll calculate termination resistors and cable specs for you.
