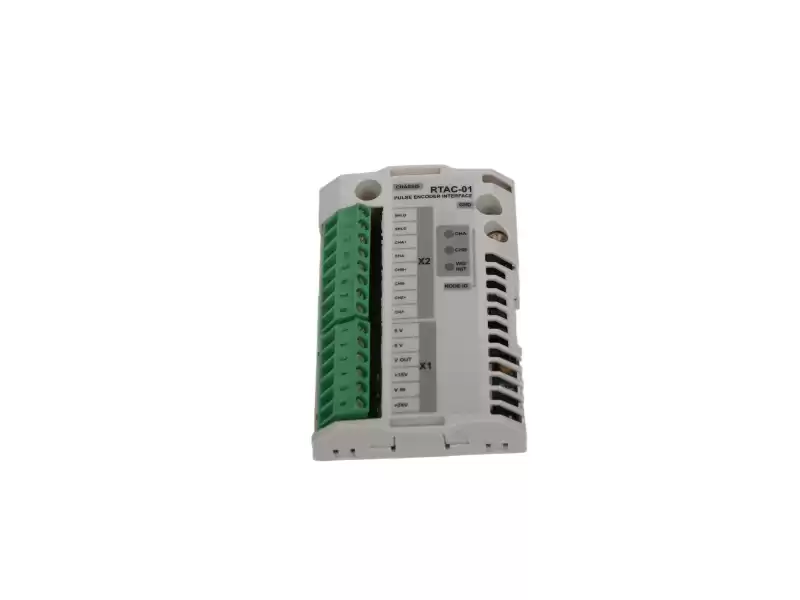

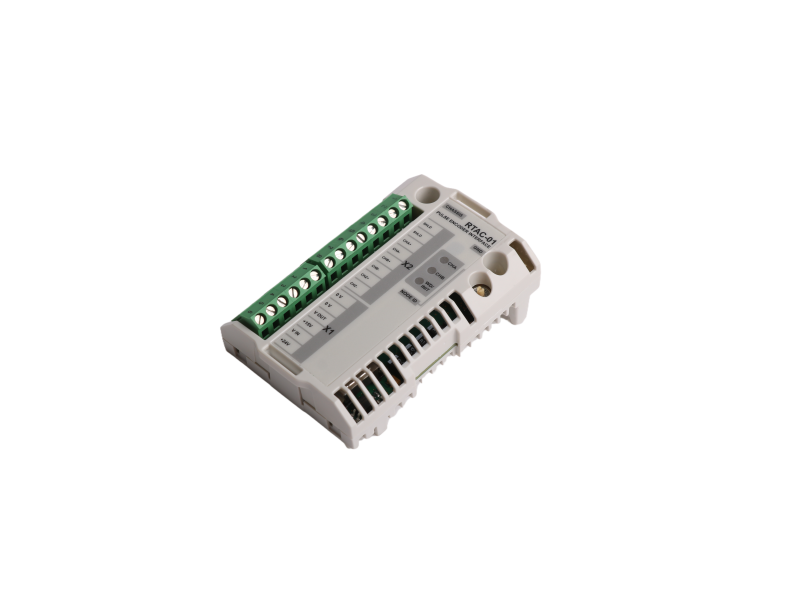

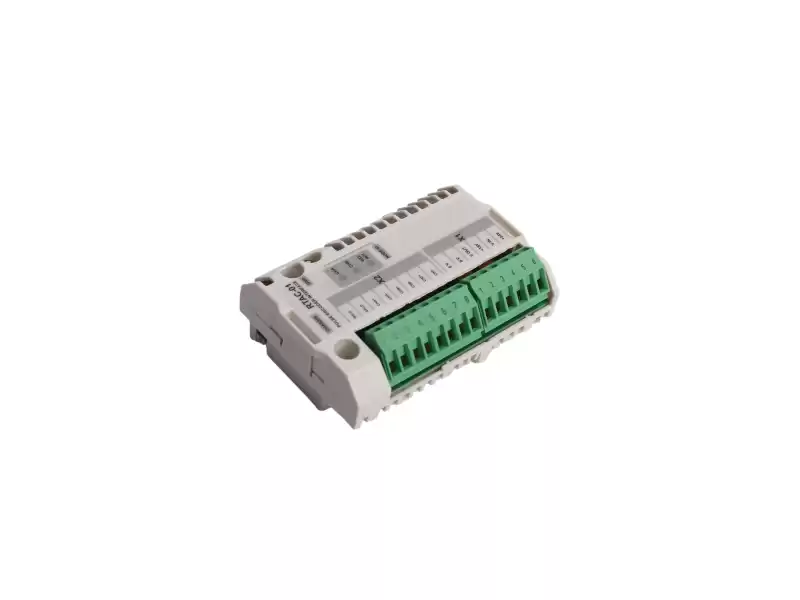

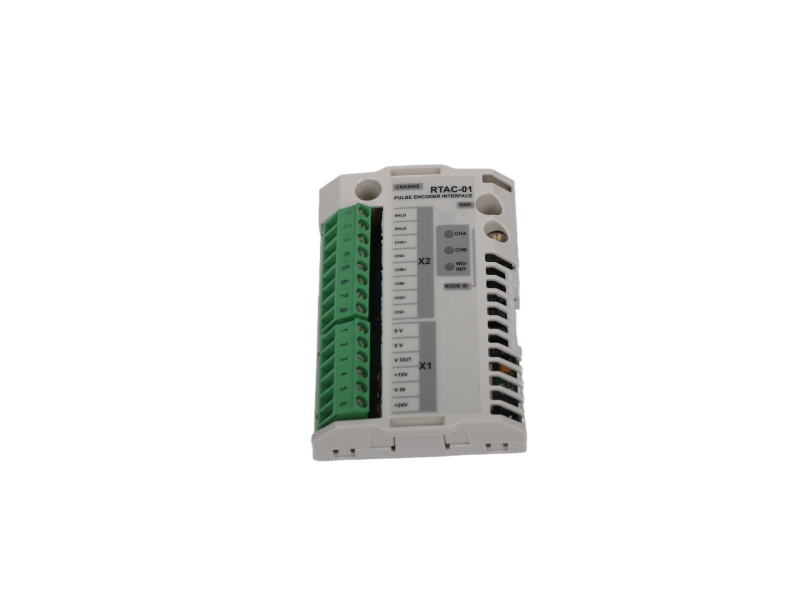

ABB RTAC-01 (64610805) — Pulse Encoder Interface Board
Turn any RMIO slot into a 200 kHz, 15-bit speed-feedback front-end in 30 seconds.
① Why it’s an eye-catcher
RTAC-01 captures incremental A/B/Z encoder pulses, delivers 0.003 % speed resolution to the drive and powers the encoder (15 V or 24 V, 5 W each) through one 38-pin connector—no external supply, no jumper maze.
② Key specifications
|
Feature
|
Value
|
|
Max. frequency
|
200 kHz (A/B)
|
|
Resolution
|
15 bit ≈ 0.003 %
|
|
Accuracy
|
50 ppm
|
|
Encoder supply
|
2 × selectable 15 V / 24 V, 5 W, short-circuit proof
|
|
Cable length
|
300 m (diff), 200 m (SE), 100 m (OC)
|
|
Isolation
|
1.5 kVAC logic-to-ground
|
|
Slot
|
RMIO SLOT1/2 (or AIMA-01 DIN-rail)
|
|
Temperature
|
–25 … +70 °C, IP20
|
|
Marks
|
CE, UL, CSA
|
③ Three-step field install
Power down → slide card into SLOT1 until latch clicks
Tighten both captive screws (ground shield automatically)
Wire encoder, choose 15 V/24 V with jumper, power up—green LED = locked
④ Typical uses
Winder lines: 0.003 % speed loop keeps tension constant
Crane travel: 300 m long cable, no repeater needed
Test bench: auto-switch 5 V/24 V encoders without hardware change
⑤ Plug-and-play encoder bundle
|
Qty
|
Item
|
Stock
|
Note
|
|
1
|
RTAC-01 64610805
|
Spot
|
15 / 24 V selectable
|
|
1
|
RDCO-0C fibre board
|
Spot
|
For remote AMC
|
|
2 m
|
Twisted-pair shield cable
|
Spot
|
4×(2+1) 1 mm²
|
|
1
|
USB param cable
|
Spot
|
DriveWindow ready
|
⑥ Delivery & after-sales
12-month warranty starts on shipping date; advance replacement available—send the new board first, return the old one later
Orders before 12:00 noon Xiamen time packed the same day; afternoon orders leave next morning
Neutral anti-static box with customs QR code outside; clearance documents auto-generated—no duplicate paperwork needed
Multiple delivery options: warehouse pick-up, SF Express domestic collect, international port-to-port or door-to-door
Contact May
Email: ab@mooreplc.com
Mobile/WhatsApp: +86-18106909650
WeChat ID: dcsfc
Send me the encoder model and cable length—within ten minutes you’ll receive a list of matched cable, connectors and termination resistors.
