AC 277 volt DC 12volt 120W 0-10V dimmable driver led power supply

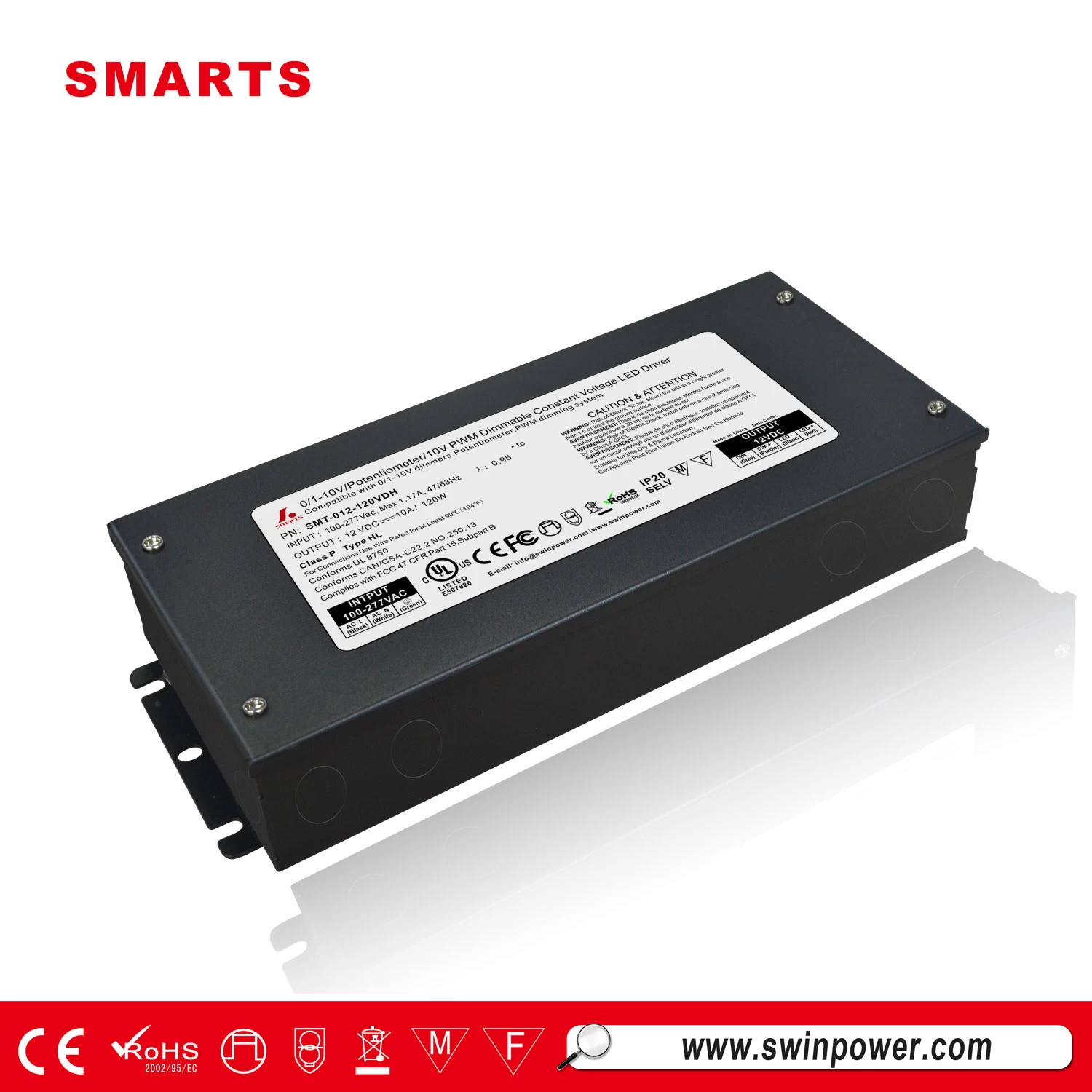

This SMT-012-120VDH are our high quality 0-10V dimmable led power supply with 7 years warranty. It is driver and junction box integrated hence the wiring can hiding in the box which looked nice when installed.
Features of led power supply：
Output constant voltage type
·Range 100-305VAC , Typical: 100-277VAC
·Built-in PFC function PF>0.90
·Efficiency > 88%
·Protections:short circuit/over current/over voltage/over temperature
·Cooling by free air convection
·IP20 design for indoor or outdoor installations .
·Dimming function:0-10V/ 1-10V/ 10VPWM signal or resistance .
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·Suitable for dry/damp locations
·7 years warranty
Specification of led power supply:
|
model
|
SMT-012-120VTH
|
SMT-024-120VTH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
|
Voltage Regulation
|
±0.5%
|
|
|
Load Regulation
|
±2%
|
|
|
Rated current
|
10.00A
|
5.00A
|
|
|
Rated power
|
120W
|
120W
|
|
Input
|
Voltage Range
|
100~277V AC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
0.99@120VAC 0.96@277VAC
|
0.98@120VAC 0.96@277VAC
|
|
|
Full Load Efficiency（Typ.）
|
>89%
|
>89%
|
|
|
AC Current（Typ.）
|
1.7A@100VAC
|
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
|
Over voltage
|
≦140VAC(100~130V) , ≦270VAC(170~277V)
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750, UL1012
|
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547
Alight industry level （surge4KV）
|
|
Others
|
Weight
|
1.3Kg
|
|
|
Size
|
220*93*41mm (L*W*H)
|
|
|
packing
|
329*279*176mm , 10PCS/ctn
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Mechanical Specification
FAQ:What is a constant voltage power supply?
Answers: Most common constant voltage drivers (or Power Supplies) are 12VDC or 24VDC. An LED light that is rated for constant voltage usually specifies the amount of input voltage it needs to operate correctly. A constant voltage power supply receives standard line voltage (120-277VAC).
