AC Bearing Units RCSA2 RCSB2

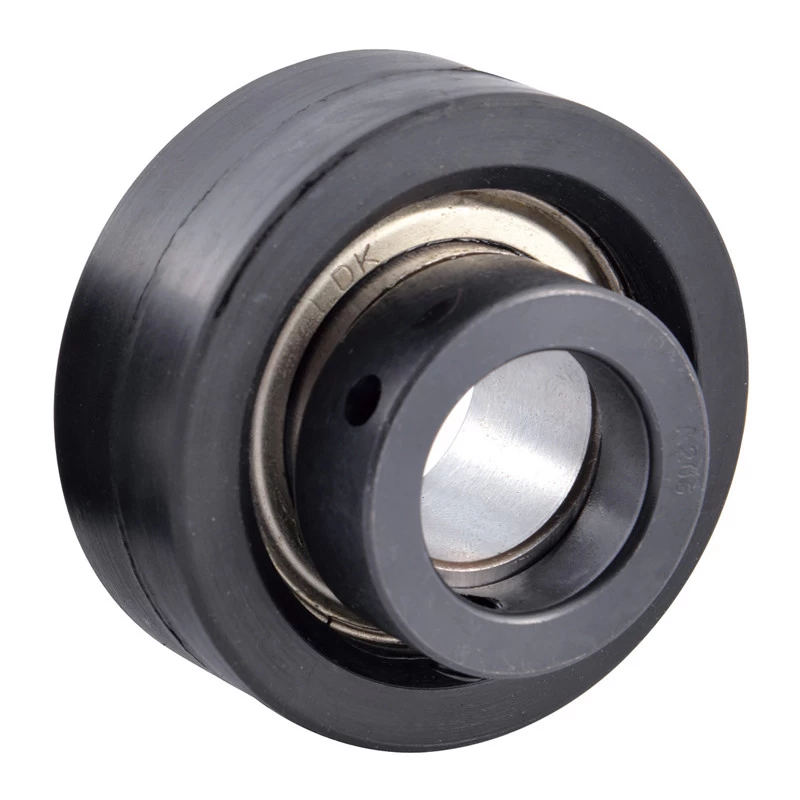

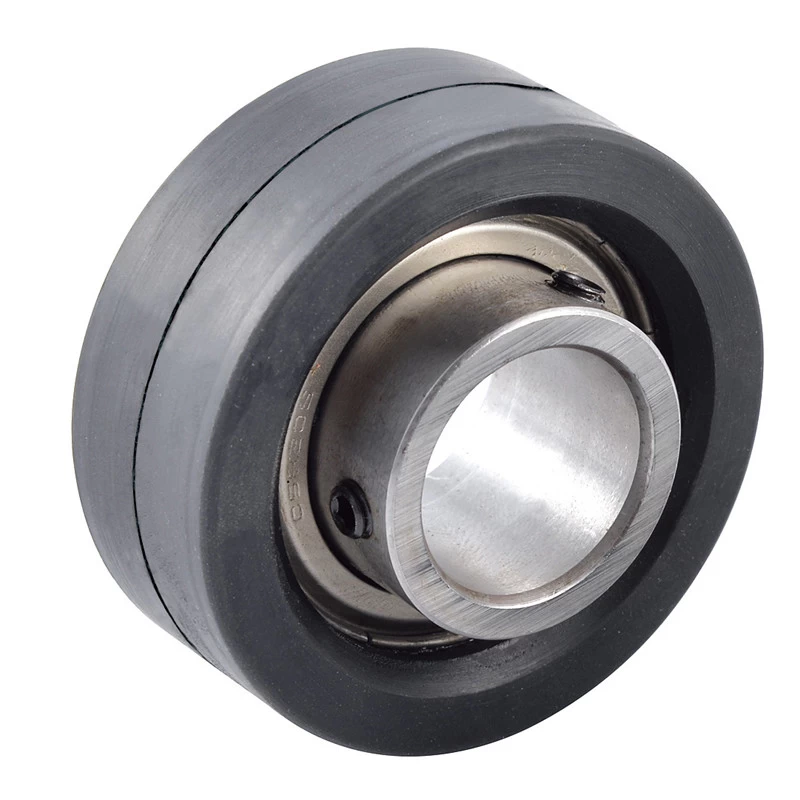

RCSA200/RCSB200  Rubber mounted cartridge units,Eccentric/Setscrew locking



Facebook Twitter Pinterest LinkedIn 分享


HVAC Bearings RCSA208

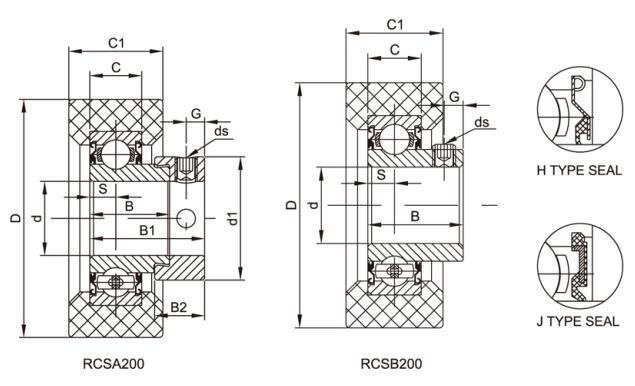

Bearing No. Shaft Dia Dimensions(mm)
Weight
(kg)
d D B C C1 S B1 B2 d1 G ds
(in) (mm) (mm) (in.UNF)
RCSA201    12 64.3 19.1 12 25.4 6 28.6 13.5 28.6 5 M6x1   0.2
RCSA201-8 1/2   1/4-28
RCSA202    15 64.3 19.1 12 25.4 6 28.6 13.5 28.6 5 M6x1   0.2
RCSA202-9  9/16    1/4-28
RCSA202-10 5/8   1/4-28
RCSA203    17 64.3 19.1 12 25.4 6 28.6 13.5 28.6 5 M6x1   0.2
RCSA203-11 11/16   1/4-28
RCSA204    20 64.3 21.5 14 25.4 7 31 13.5 33.3 5 M6X1   0.21
RCSA204-12 3/4   1/4-28  
RCSA205    25 64.3 22 15 25.4 7.5 31.5 13.5 38.1 5 M6X1   0.25
RCSA205-14  7/8    1/4-28
RCSA205-15  15/16    1/4-28
RCSA205-16 1   1/4-28
RCSA206    30 79 23.8 16 27 8 35.7 15.9 44.5 6 M6X1   0.39
RCSA206-17  1-1/16    1/4-28
RCSA206-18  1-1/8    1/4-28
RCSA206-19  1-3/16    1/4-28
RCSA206-20 1-1/4   1/4-28


Bearing No. Shaft Dia Dimensions(mm) Weight (kg)
d D B C C1 S G ds
(in) (mm) (mm) (in.UNF)
RCSB201    12 64.3 22 12 25.4 6.0 4.9 M5x0.8   0.09
RCSB201-8 1/2   10-32
RCSB202    15 64.3 22 12 25.4 6.0 4.9 M5x0.8   0.08
RCSB202-9  9/16    10-32
RCSB202-10 5/8   10-32
RCSB203    17 64.3 22 12 25.4 6.0 4.9 M5X0.8   0.07
RCSB203-11 11/16   10-32
RCSB204   20 64.3 25 14 25.4 7.0 5.0 M6x1   0.12
RCSB204-12 3/4   1/4-28
RCSB205    25 64.3 27 15 25.4 7.5 5.5 M6x1   0.18
RCSB205-13  13/16    1/4-28
RCSB205-14  7/8    1/4-28
RCSB205-15  15/16    1/4-28
RCSB205-16 1   1/4-28
RCSB206    30 79 30 16 27 8.0 5.9 M6x1   0.26
RCSB206-17  1-1/16  1/4-28
RCSB206-18  1-1/8  1/4-28
RCSB206-19  1-3/16  1/4-28
RCSB206-20 1-1/4 1/4-28
