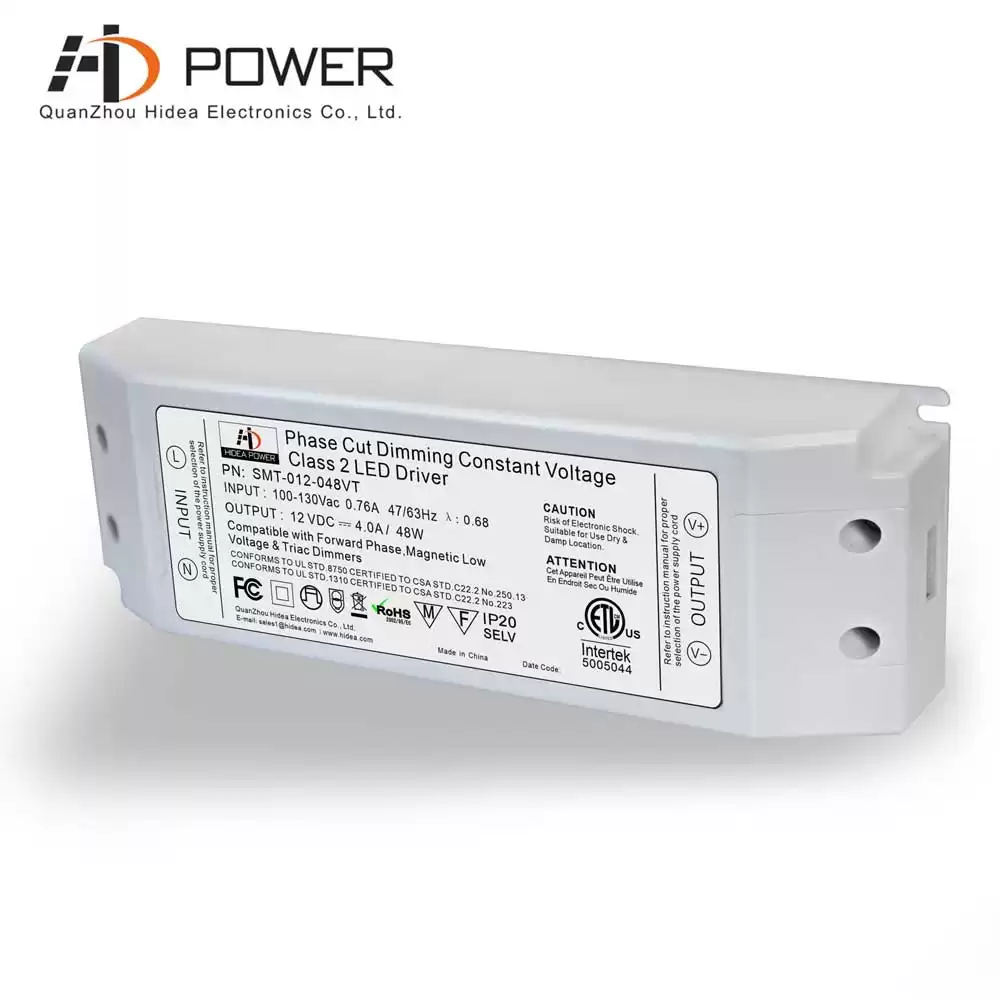

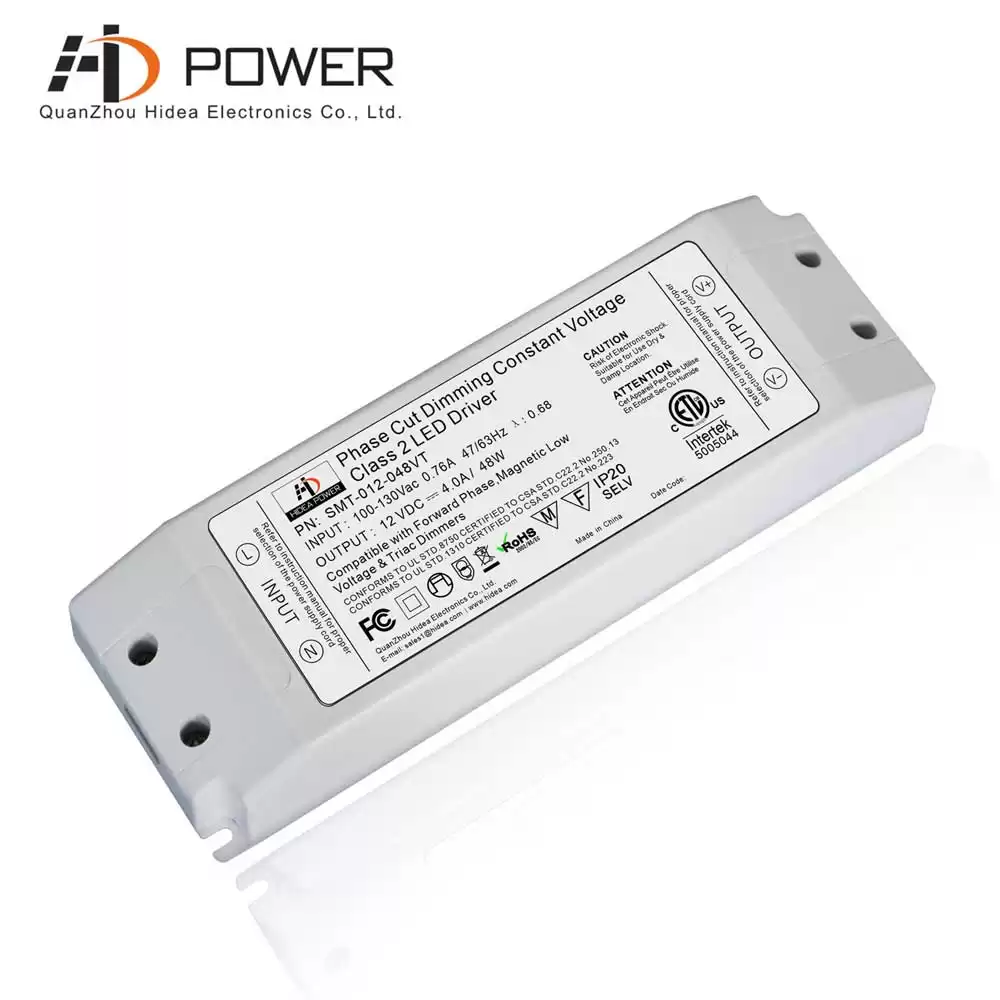

Smarts Electronics offers quality and reliable products and is backed by a 5 year warranty. SMT-012-048VT 48w led driver is ETL listed and complies with Dainolite UL Standard 8750 and 1310 tepe lights. Converts 110V to low voltage 12V DC.
Specification
|
Model
|
SMT-012-048VT
|
SMT-024-048VT
|
|
output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
4.00A
|
2.00A
|
|
Rated power
|
48W
|
|
input
|
Voltage Range
|
100-130VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor
|
0.65 (Full loading)
|
|
Efficiency(Typ.)
|
81%
|
84%
|
|
AC Current(Max.)
|
1.6A
|
1.6A
|
|
Leakage current
|
﹤0.50mA/120VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Current
|
≤1.2*I out
|
|
Over Loading
|
≤120%
|
|
Over temperature
|
100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 12min./1 cycle,period for 72min. each along X,Y,Z axes
|
|
|
Safety standards
|
UL8750+UL1310 Class 2 unit
|
|
Safety& EMC
|
Withstand voltage
|
I/P-O/P:1500VAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
others
|
Net. Weight
|
0.82kg=0.35kg(driver)+0.47kg (J10)
|
0.87kg=0.35(driver)+0. 52kg(J12-3)
|
|
Size
|
350*77*26mm(L*W*H)
|
350*77*37mm(L*W*H)
|
|
Packing
|
430*375*150mm 20PCS/CTN
|
430*375*190mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
|
3.Loading should be 5-100%.
|
Compatible Light Type
Bright Lotus under cabinet led strip lights: it features 150 bright 5050 LEDs that easily light up a room, bedroom, dorm room, kitchen countertop. Suitable for birthday party, home gathering while work with
48w led driver.
