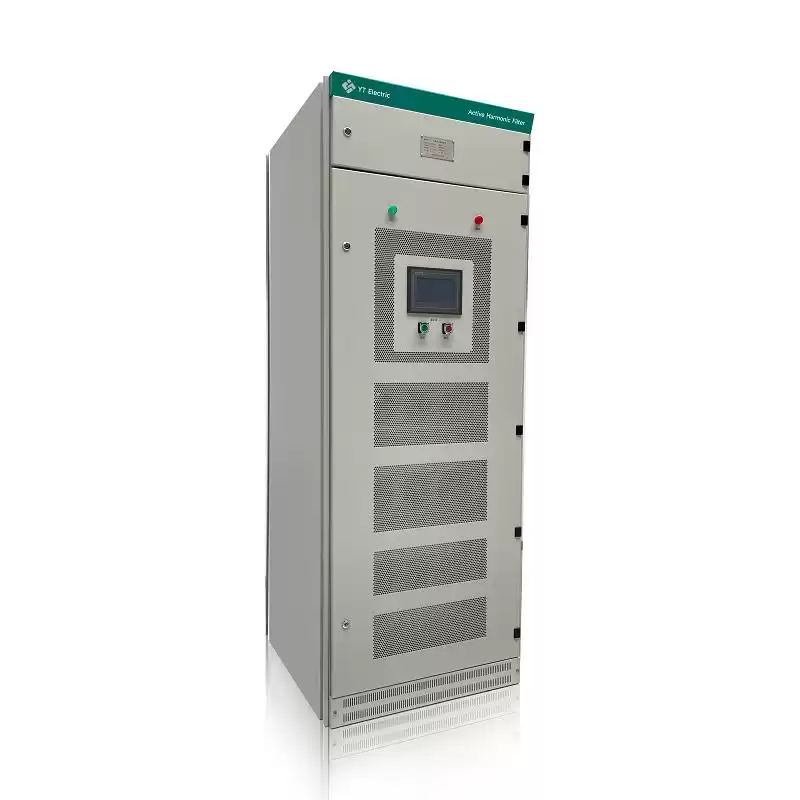

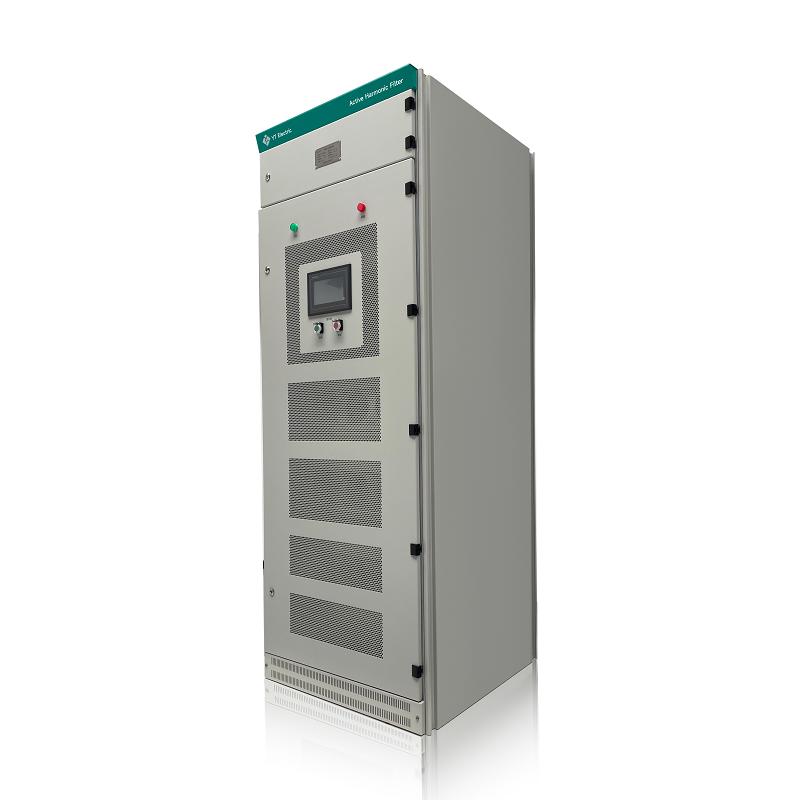

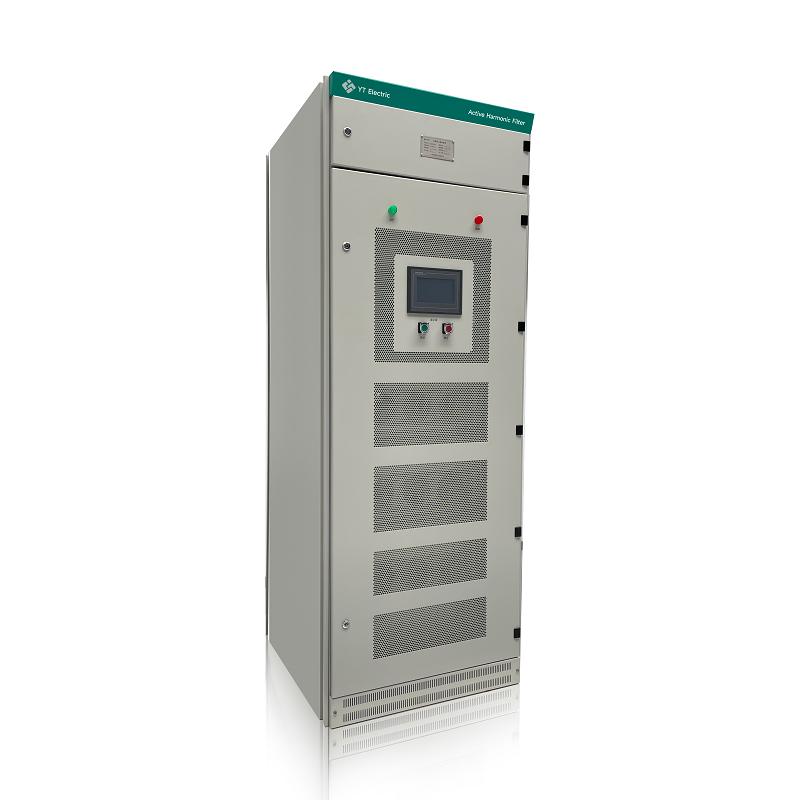

Active Harmonic Filter IP42 Enclosure

YTPQC-AHF based on 3-level topology, is an Active Harmonic Filter (AHF) system designed to eliminate harmonic oscillations and reduce costs consequently. AHF is a versatile solution, easily tailored to deliver power factor improvement, voltage variation control, flicker mitigation and load balancing functionality, and highly improved power quality in networks while reducing harmonic pollution.



YT-PQC-AHF Active Harmonic Filter

YTPQC-AHF Active Harmonic Filter is a perfect and comprehensive solution to the power quality issues of power grid , such as harmonics, reactive power and 3 phase load unbalance. YTPQC-AHF which is in parallel to power grid can detect the harmonic wave in power grid in time, generate the reverse-phase compensation current through the converter and dynamically filter the harmonic wave in power grid.

YTPQC Active Harmonic Filter basics

The operation of YTPQC-AHF is unaffected by multifarious load forms and power grid structures. And it will not produce harmonic oscillation (resonance) along with the system, thus perfectly realizing harmonic control under diverse loads. YTPQC Active Harmonic Filter can fully accomplish dynamic reactive compensation, control the capacitor switching and ultimately heighten the power factor of power grid. Meanwhile, YTPQC-AHF has the function of controlling the three-phase load current unbalance, thus comprehensively handling various power quality matters in power grid.



Modular Design

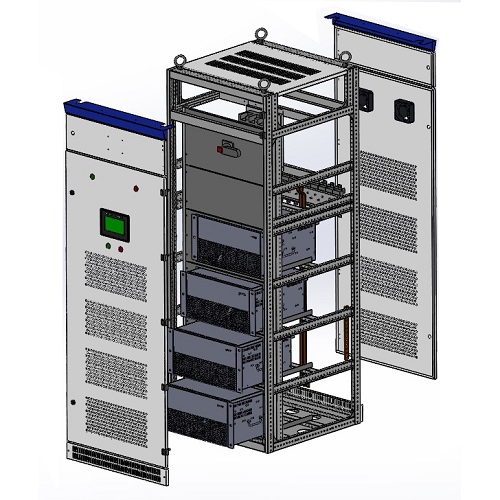

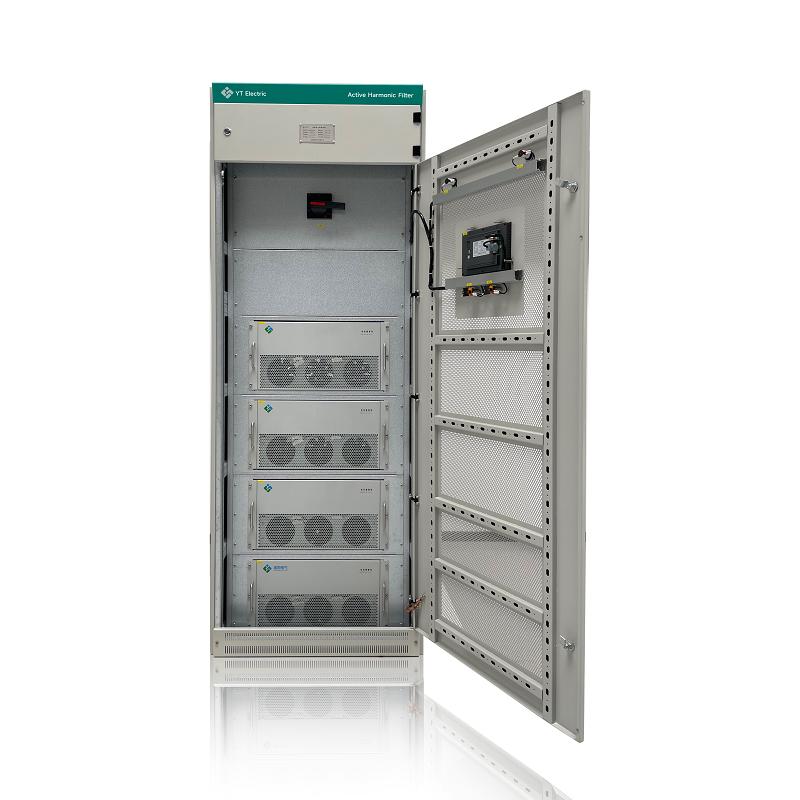

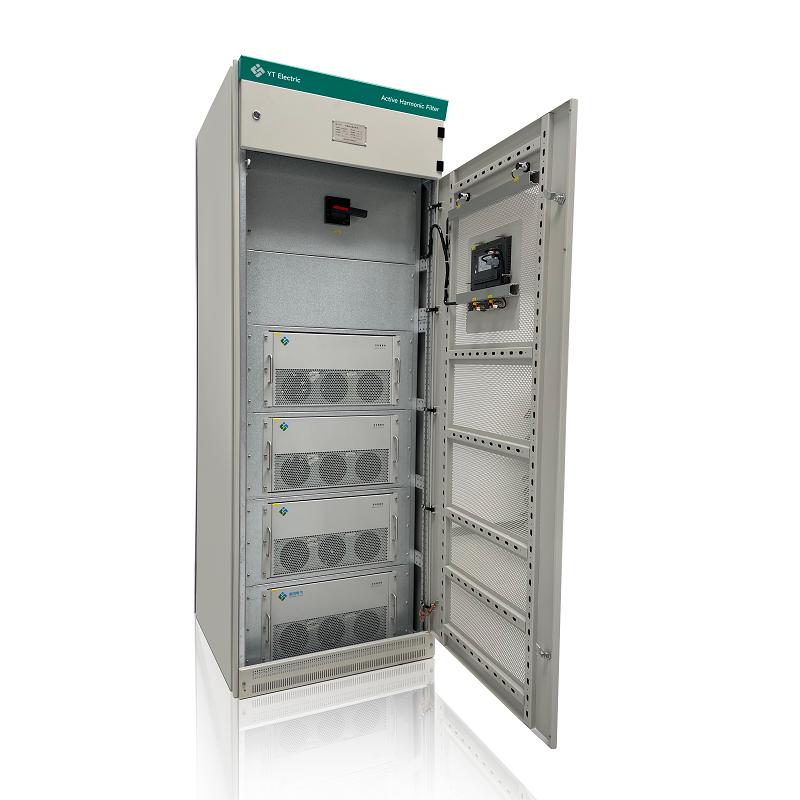

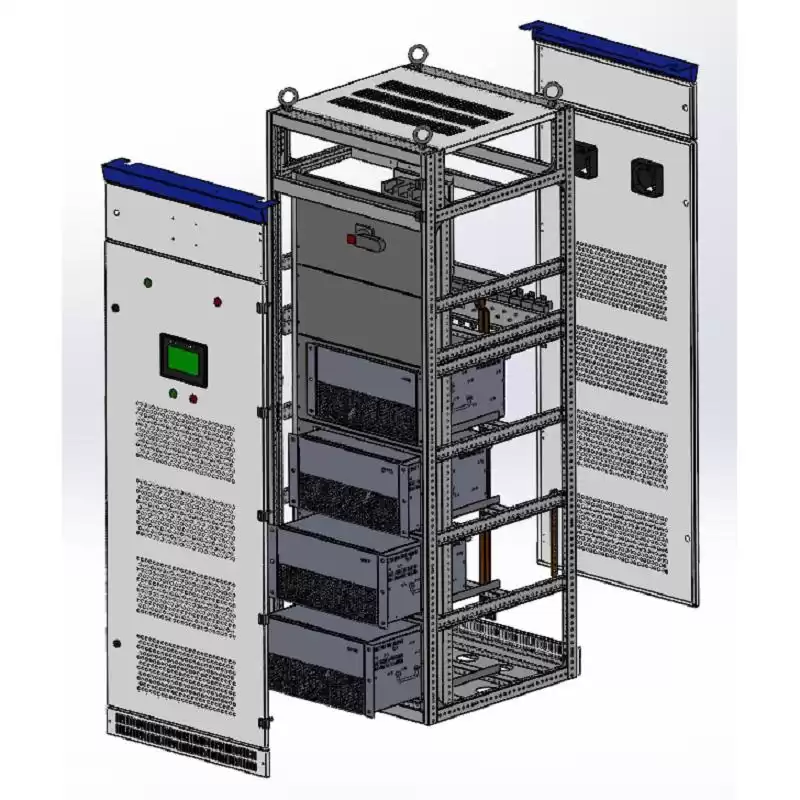

YTPQC Active Harmonic Filter has a advanced modular design. Usually YTPQC-AHF panel consists of one or several AHF modules and an optional touched LCD Human Machine Interface. Each AHF module is an independent harmonic filtering system, and users can change the harmonic filtering system rating by adding or removing AHF modules.

According to the mounting type, YTPQC-AHF panel can use Rack Modular AHF, Wall-mounted AHF and free landing AHF.




Model Description

YTPQC-AHF Active Harmonic Filter Panel series cover from 150A to 750A/cabinet, support wall mounted type or free landing type.



SN Item Rated Capacity Factory Model Dimensions
(W*D*H,MM)
N.G
(KG)

Packing Size

(W*D*H,MM)

G.W.
(KG)
1 APF 150A YTPQC-AHF/150-4-4LF 800*800*2200 220 950*950*2450 260
2 APF 200A YTPQC-AHF/200-4-4LF 800*800*2200 260 950*950*2450 300
3 APF 300A YTPQC-AHF/300-4-4LF 800*800*2200 315 950*950*2450 4355
4 APF 400A YTPQC-AHF/400-4-4LF 800*800*2200 370 950*950*2450 410
5 APF 500A YTPQC-AHF/500-4-4LF 800*800*2200 425 950*950*2450 465
6 APF 600A YTPQC-AHF/600-4-4LF 800*800*2200 470 950*950*2450 510
7 APF 750A YTPQC-AHF/750-4-4LF 1000*1000*2200 525 1150*1150*2450 565
