Adapter Sleeves H200 H300 H2300 Series

H200 H300 H2300 Series

Facebook Twitter Pinterest LinkedIn 分享

Adapter Sleeves H2311

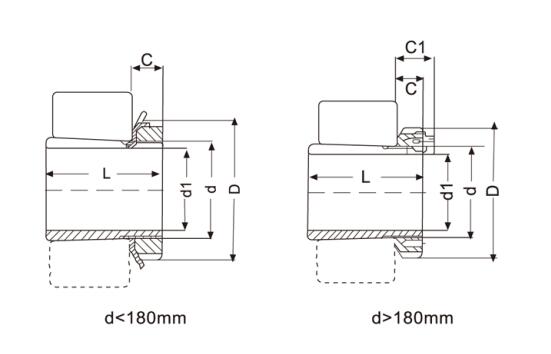

Bearing No d d1 L D c AN/KM AW/MB Weight (kg)
H204 20 17 24 22 7 4 0.041
H205 25 20 26 38 8 5 0.070
H206 30 25 27 45 8 6 0.099
H207 35 30 29 52 9 7 0.125
H208 40 35 31 58 10 8 0.174
H209 45 40 33 65 9 9 0.227
H210 50 45 35 70 10 10 0.274
H211 55 50 37 75 11 11 0.308
H212 60 55 38 80 12 12 0.346
H213 65 60 40 85 13 13 0.401
H214 70 60 41 92 14 14 0.593
H215 75 65 43 98 15 15 0.707
H216 80 70 46 105 17 16 0.882
H217 85 75 50 110 18 17 1.02
H218 90 80 52 120 18 18 1.19
H219 95 85 55 125 19 19 1.37
H220 100 90 58 130 20 20 1.49
H221 105 95 60 140 20 21 1.72
H222 110 100 63 145 21 22 1.93
H304 20 17 28 32 7 4 0.045
H305 25 20 29 38 8 5 0.075
H306 30 25 31 45 8 6 0.109
H307 35 30 35 52 9 7 0.142
H308 40 35 36 58 10 8 0.189
H309 45 40 39 65 11 9 0.248
H310 50 45 42 70 12 10 0.303
H311 55 50 45 75 12 11 0.345
H312 60 55 47 80 13 12 0.394
H313 65 60 50 85 14 13 0.458
H314 70 60 52 92 14 14 0.723
H315 75 65 55 98 15 15 0.831
H316 80 70 59 105 17 16 1.03
H317 85 75 63 110 18 17 1.18
H318 90 80 65 120 18 18 1.37
H319 95 85 68 125 19 19 1.56


Bearing No d di L D c Ci AN/KM AW/MB
Weight
(kg)
H320 100 90 71 130 20 - 20 1.69
H321 105 95 74 140 20 - 21 1.95
H322 110 100 77 145 21 -- 22 2.18
H2304 20 17 31 32 7 -- 4 0.049
H2305 25 20 35 38 8 - 5 0.087
H2306 30 25 38 45 8 - 6 0.126
H2307 35 30 43 52 9 -- 7 0.165
H2308 40 35 46 58 10 -- 8 0.224
H2309 45 40 50 65 11 -- 9 0.280
H2310 50 45 55 70 12 -- 10 0.382
H2311 55 50 59 75 12 - 11 0.420
H2312 60 55 62 80 13 - 12 0.481
H2313 65 60 65 85 14 -- 13 0.557
H2314 70 60 68 92 14 - 14 0.897
H2315 75 65 73 98 15 - 15 1.05
H2316 80 70 78 105 17 - 16 1.28
H2317 85 75 82 110 18 - 17 1.45
H2318 90 80 86 120 18 -- 18 1.69
H2319 95 85 90 125 19 -- 19 1.93
H2320 100 90 97 130 20 -- 20 2.15
H2321 105 95 101 140 20 -- 21 2.46
H2322 110 100 105 145 21 - 22 2.74
H2324 120 110 112 155 22 -- 24 3.19
H2326 130 115 121 165 23 - 26 4.60
H2328 140 125 131 180 24 -- 28 5.55
H2330 150 135 139 195 26 -- 30 6.63
H2332 160 140 147 210 28 - 32 9.14
H2334 170 150 154 220 29 -- 34 10.2
H2336 180 160 161 230 30 -- 36 11.3
H2338 190 170 169 240 31 -- 38 12.6
H2340 200 180 176 250 32 -- 40 13.9
H2344 220 200 186 280 35 44 44 16.7
H2348 240 220 199 300 37 46 48 19.7
H2352 260 240 211 330 39 49 52 24.2
H2356 280 260 224 350 41 51 56 27.8
