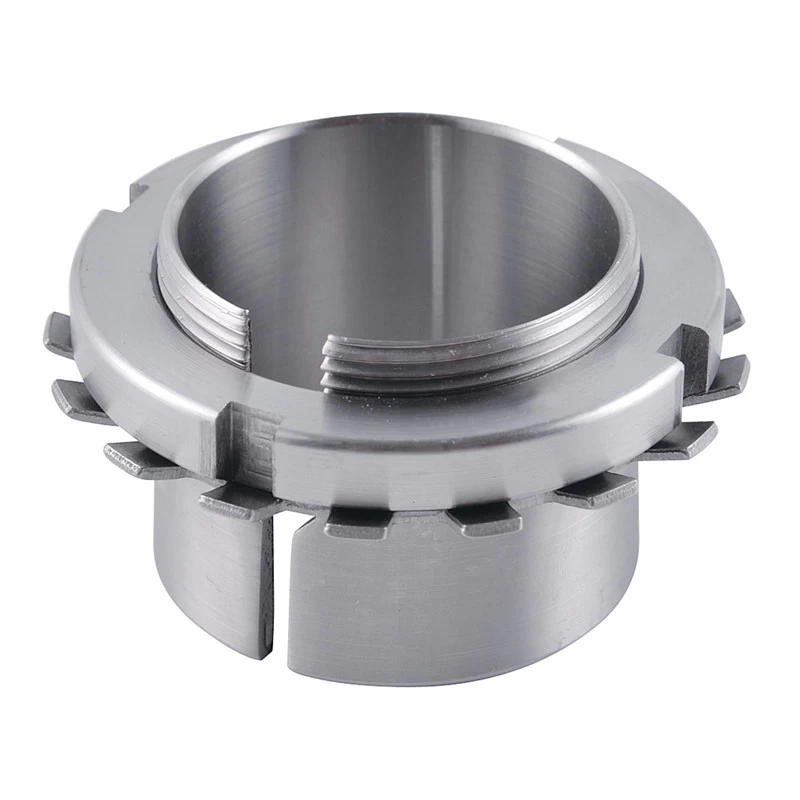

Adapter Sleeves H3000 H3100 H3200 Series


H3000 H3100 H3200 Series


Facebook Twitter Pinterest LinkedIn 分享


Adapter Sleeves H3024

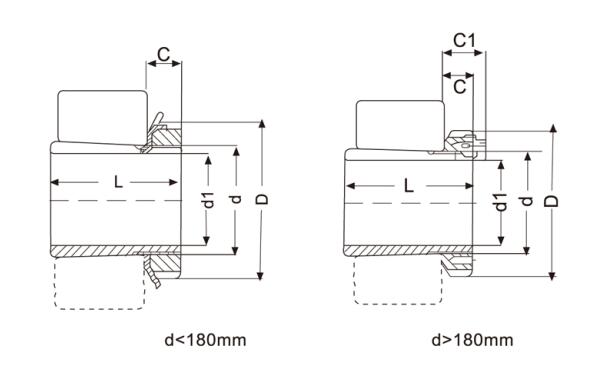

Item No. d d1 L D C C1 Weight (kg)
H3024 120 110 72 145 22 -- 1.93
H3026 130 115 80 155 23 -- 2.85
H3028 140 125 82 165 24 -- 3.16
H3030 150 135 87 180 26 -- 3.89
H3032 160 140 93 190 28 -- 5.21
H3034 170 150 101 200 29 - 5.99
H3036 180 160 109 210 30 - 6.83
H3038 190 170 112 220 31 - 7.45
H3040 200 180 120 240 32 - 9.19
H3044X 220 200 126 260 30 41 10.3
H3048 240 220 133 290 34 46 13.2
H3052X 260 240 145 310 34 46 15.3
H3056 280 260 152 330 38 50 17.7
H3060 300 280 168 360 42 54 22.8
H3064 320 300 171 380 42 55 24.6
H3068 340 320 187 400 45 58 28.7
H3072 360 340 188 420 45 58 30.5
H3076 380 360 193 450 48 62 35.8
H3080 400 380 210 470 52 66 41.3
H3084X 420 400 212 490 52 66 43.7
H3088 440 410 228 520 60 77 65.2
H3092 460 430 234 540 60 77 69.5
H3096 480 450 237 560 60 77 73.3
H3120 100 90 76 130 20 - 1.80
H3122 110 100 81 145 21 -- 2.25
H3124 120 110 88 155 22 -- 2.64
H3126 130 115 92 165 23 -- 3.66
H3128 140 125 97 180 24 -- 4.34
H3130 150 135 111 195 26 -- 5.52


Item No. d d1 L D C C1 Weight (kg)
H3132 160 140 119 210 28 -- 7.67
H3134 170 150 122 220 29 -- 8.38
H3136 180 160 131 230 30 -- 9.5
H3138 190 170 141 240 31 -- 10.8
H3140 200 180 150 250 32 -- 12.1
H3144X 220 200 161 280 35 -- 14.7
H3148X 240 220 172 300 37 -- 17.3
H3152X 260 240 190 330 39 -- 22.0
H3156X 280 260 195 350 41 -- 24.5
H3160 300 280 208 380 40 53 30.2
H3164 320 300 226 400 42 56 34.9
H3168 340 320 254 440 55 72 49.5
H3172 360 340 259 460 58 75 54.2
H3176 380 360 264 490 60 77 61.7
H3180 400 380 272 520 62 82 70.6
H3184 420 400 304 540 70 90 84.2
H3188 440 410 307 560 70 90 104
H3192 460 430 326 580 75 95 116
H3196 480 450 335 620 75 95 133
H3260 300 280 240 380 40 53 34.1
H3264 320 300 258 400 42 56 39.3
H3268 340 320 288 440 55 72 54.6
H3272 360 340 299 460 58 75 60.6
H3276 380 360 310 490 60 77 69.6
H3280 400 380 328 520 62 82 81.0
H3284 420 400 352 540 70 90 94.0
H3288 440 410 361 560 70 90 118
H3292 460 430 382 580 75 95 132
H3296 480 450 397 620 75 95 152
