Adapter Sleeves MB AL/MS ALL/MS Series

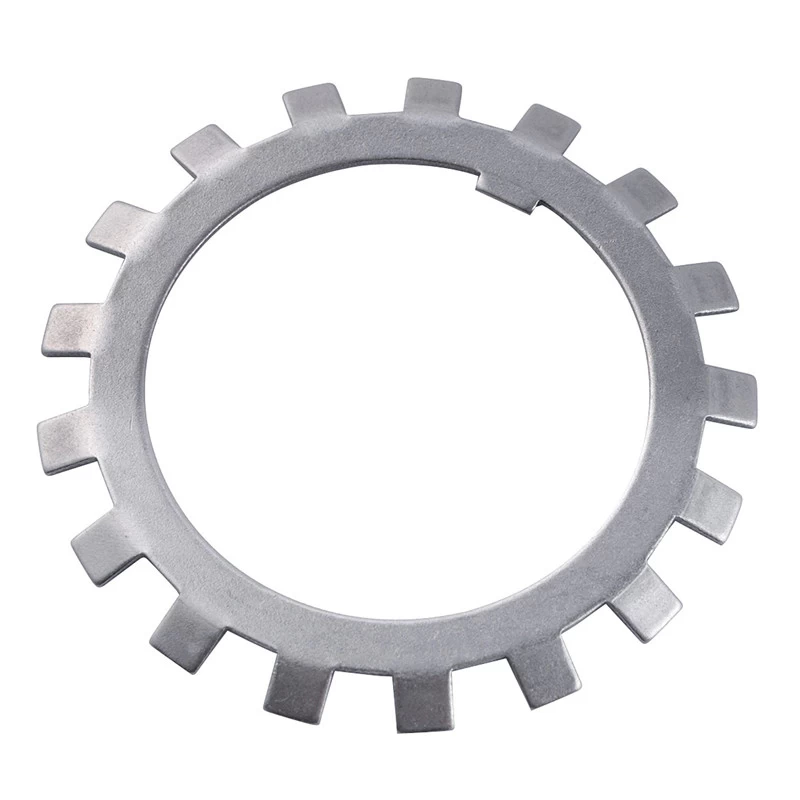

MB AL/MS ALL/MS Series   Lock washer and lock device



Facebook Twitter Pinterest LinkedIn 分享

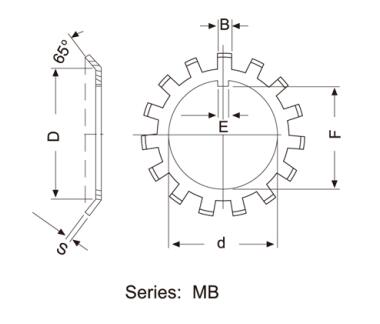

Item No. d2 D s E F B Weight (kg)
MB0 10 13.5 1 3 8.5 3 0.131
MB1 12 17 1 3 10.5 3 0.192
MB2 15 21 1 4 13.5 4 0.253
MB3 17 24 1 4 15.5 4 0.313
MB4 20 26 1 4 18.5 4 0.350
MB5 25 32 1.25 5 23 5 0.640
MB6 30 38 1.25 5 27.5 5 0.780
MB7 35 44 1.25 6 32.5 5 1.04
MB8 40 50 1.25 6 37.5 6 1.23
MB9 45 56 1.25 6 42.5 6 1.52
MB10 50 61 1.25 6 47.5 6 1.60
MB11 55 67 1.25 8 52.5 7 1.96
MB12 60 73 1.5 8 57.5 7 2.53
MB13 65 79 1.5 8 62.5 7 2.90
MB14 70 85 1.5 8 66.5 8 3.34
MB15 75 90 1.5 8 71.5 8 3.56
MB16 80 95 1.75 10 76.5 8 4.64
MB17 85 102 1.75 10 81.5 8 5.24
MB18 90 108 1.75 10 86.5 10 6.23
MB19 95 113 1.75 10 91.5 10 6.70
MB20 100 120 1.75 12 96.5 10 7.65
MB21 105 126 1.75 12 100.5 12 8.26
MB22 110 133 1.75 12 105.5 12 9.40
MB23 115 137 2 12 110.5 12 10.8
MB24 120 138 2 14 115 12 10.5
MB25 125 148 2 14 120 12 11.8
MB26 130 149 2 14 125 12 11.3
MB27 135 160 2 14 130 14 14.4
MB28 140 160 2 16 135 14 14.2
MB29 145 172 2 16 140 14 16.8
MB30 150 171 2 16 145 14 15.5
MB31 155 182 2.5 16 147.5 16 20.9
MB32 160 182 2.5 18 154 16 22.2
MB33 165 193 2.5 18 157.5 16 24.1
MB34 170 193 2.5 18 164 16 24.7
MB36 180 203 2.5 20 174 18 26.8
MB38 190 214 2.5 20 184 18 27.8
MB40 200 226 2.5 20 194 18 29.3
MB44 220 250 3 24 213 20 40.0
MB48 240 270 3 24 233 20 40.0
MB52 260 300 3 28 253 24 60.0
MB56 280 320 3 28 273 24 62.0

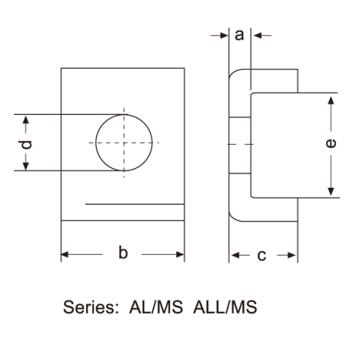

Item No. a b C d e Weight (kg)
AL/MS3144 4 20 12 9 22.5 2.60
AL/MS3148 4 20 12 9 22.5 2.60
AL/MS3152 4 24 12 12 25.5 3.39
AL/MS3156 4 24 12 12 25.5 3.39
AL/MS3160 4 24 12 12 30.5 3.79
AL/MS3164 5 24 15 12 31 5.35
AL/MS3168 5 28 15 14 38 6.65
AL/MS3172 5 28 15 14 38 6.65
AL/MS3176 5 32 15 14 40 7.96
AL/MS3180 5 32 15 18 45 8.20
AL/MS3184 5 32 15 18 45 8.20
AL/MS3188 5 36 15 18 43 9.00
AL/MS3192 5 36 15 18 43 9.00
AL/MS3196 5 36 15 18 53 10.4
ALL/MS3044 4 20 12 7 13.5 2.12
ALL/MS3048 4 20 12 9 17.5 2.29
ALL/MS3052 4 20 12 9 17.5 2.29
ALL/MS3056 4 24 12 9 17.5 2.92
ALL/MS3060 4 24 12 9 20.5 3.16
ALL/MS3064 5 24 15 9 21 4.56
ALL/MS3068 5 24 15 9 21 4.56
ALL/MS3072 5 28 15 9 20 5.03
ALL/MS3076 5 28 15 12 24 5.28
ALL/MS3080 5 28 15 12 24 5.28
ALL/MS3084 5 32 15 12 24 6.11
ALL/MS3088 5 32 15 14 28 6.45
ALL/MS3092 5 32 15 14 28 6.45
ALL/MS3096 5 36 15 14 28 7.29
