ADAS camera Advanced Driving Assistance System

The Advanced Driving Assistance System, or better known as the ADAS System, is a mechanism that improves motorist safety at the time of driving, and thus minimizes the risk of suffering a road accident or colliding with other vehicles

GC1054 CMOS Image Sensor
FULL HD-720P
3D-NR

Facebook Twitter Pinterest LinkedIn 分享

Description

ADAS Camera

Features

·GC1054 CMOS Image Sensor

·FULL HD-720P

·3D-NR

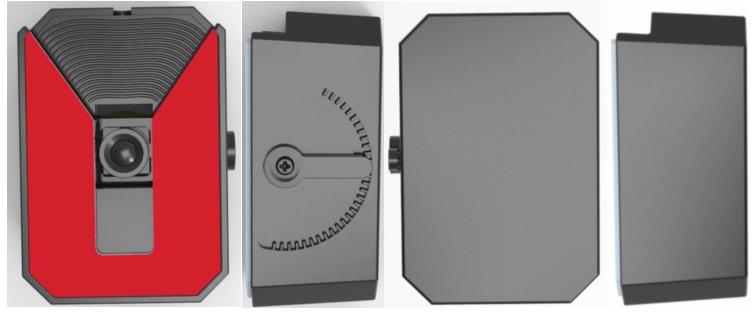

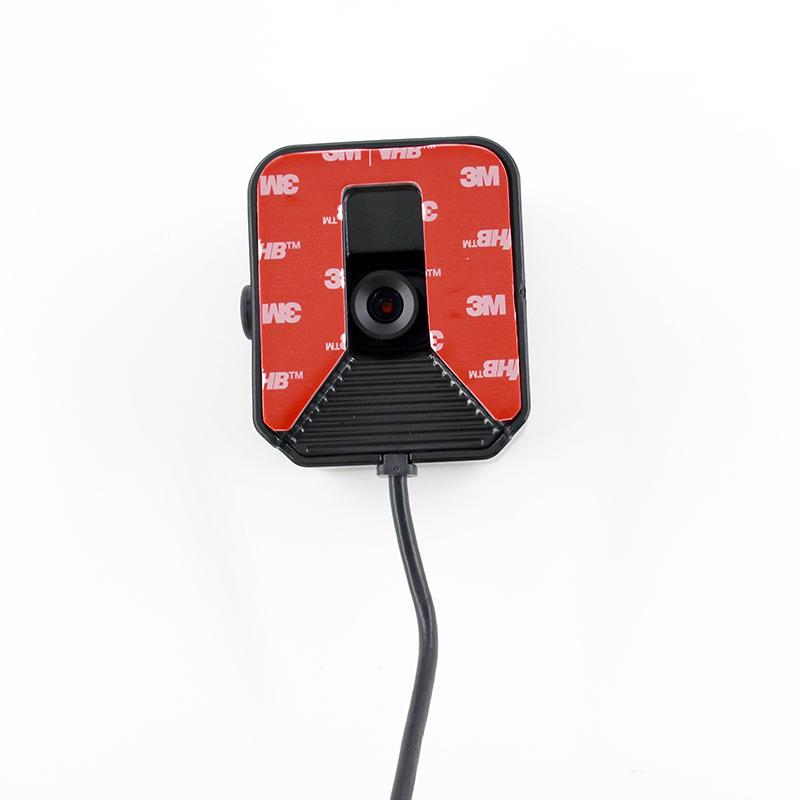

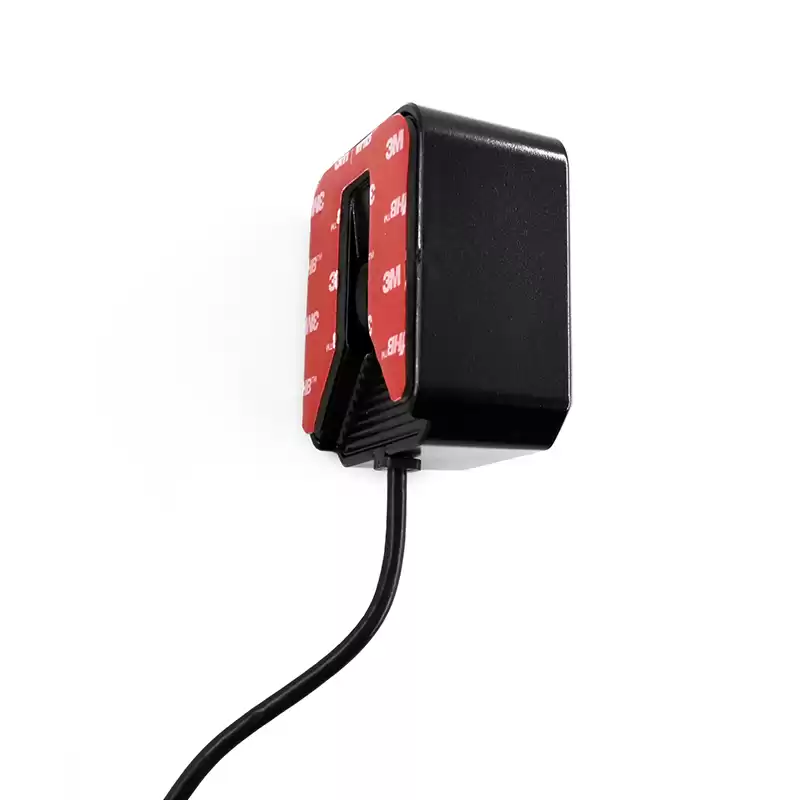

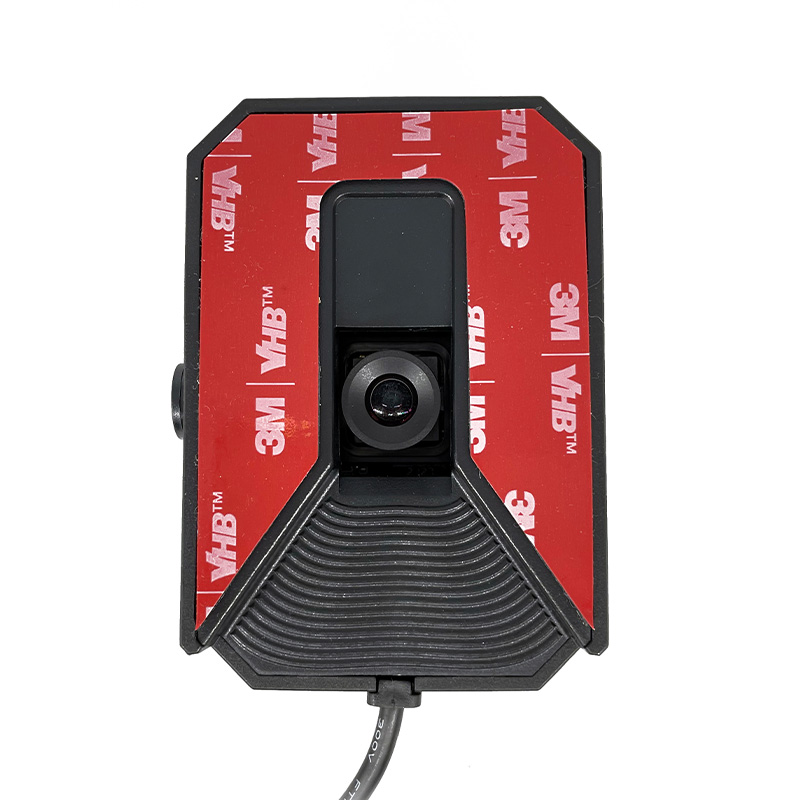

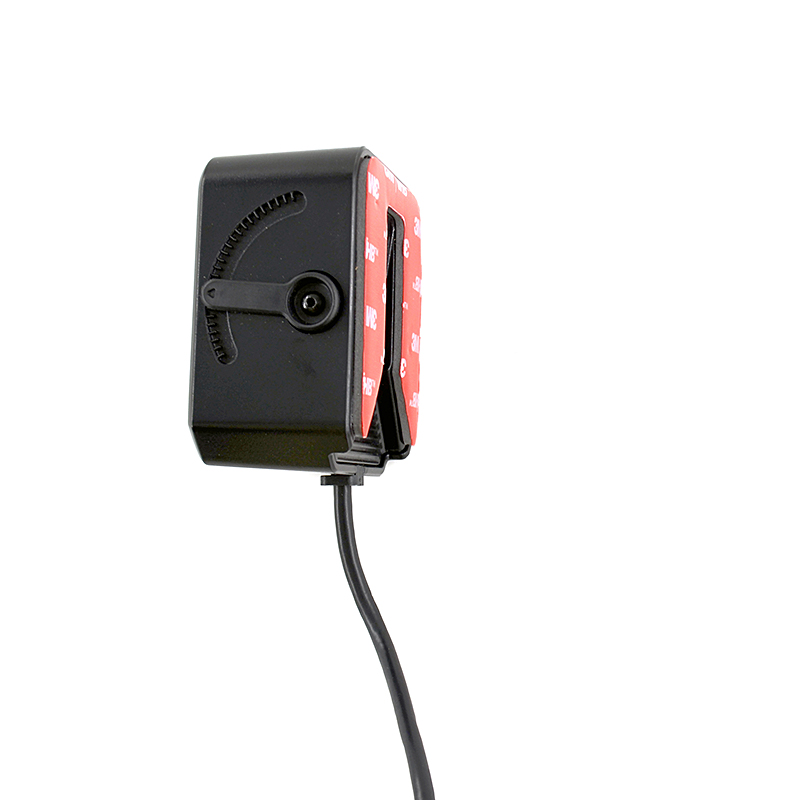

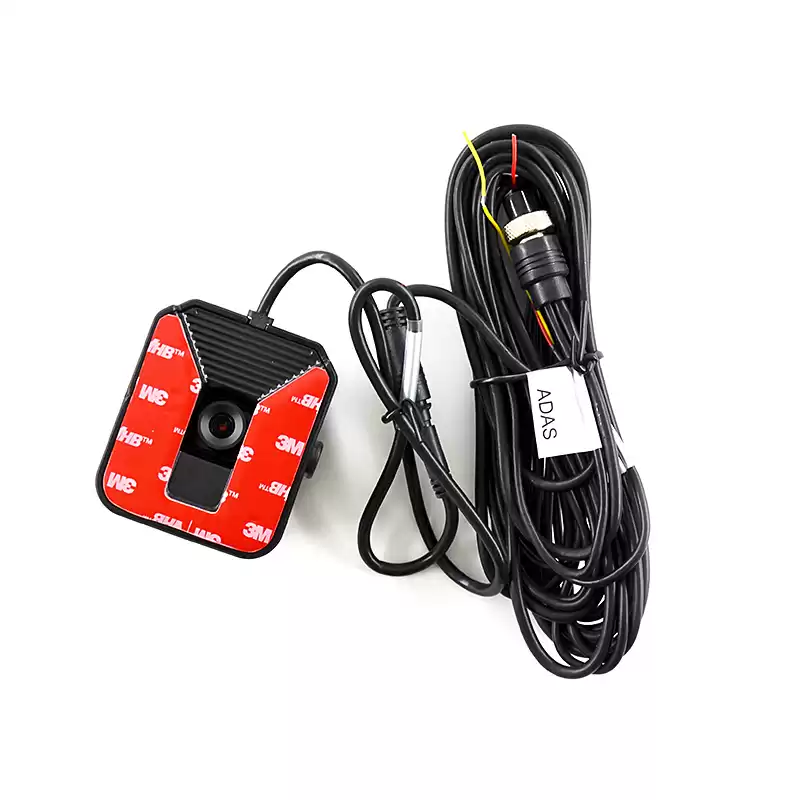

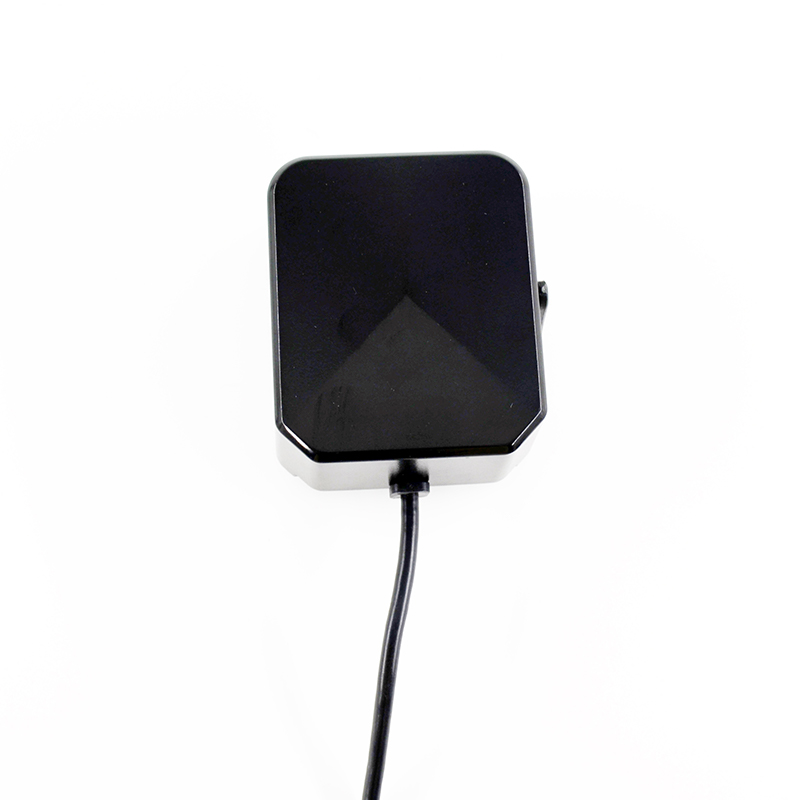

Illustration

Model:TS-381C10-AHD

Sensitive PCW HMW ADAS camera High accurate vehicle ADAS camera

Parameter

Specifications	Model	TS-381C10-AHD
	Name	ADAS Camera
	Sensor	GC1054
	Image Sensor	100W CMOS Sensor
	Image color	Color
	Focal Length	4mm
	IR	650nm(Blue wave)
	View Angle	D=60° H=52° V=29°
	Signal Type	PAL
	FPS	25fps
Properties	Temperature	-20℃~70℃
	Humidity	≤ 90 %
	Voltage	9V~16V
	Cable Length	2.5m

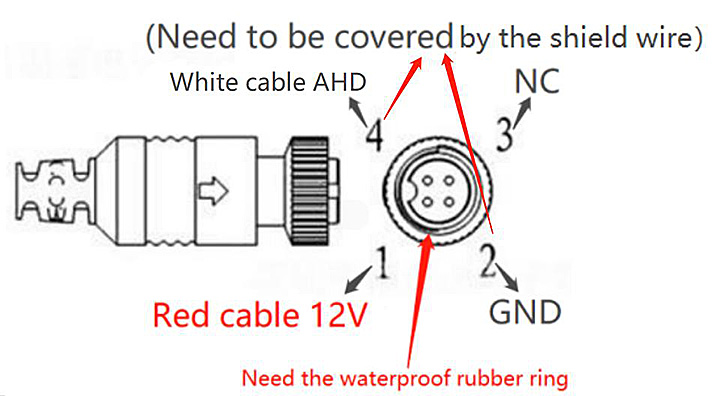

Pin Feet Definition

PIN

Name

Pin Type

Function

VCC

Power

12V

GND

Power

GND

VIDEO

AHD

Video
