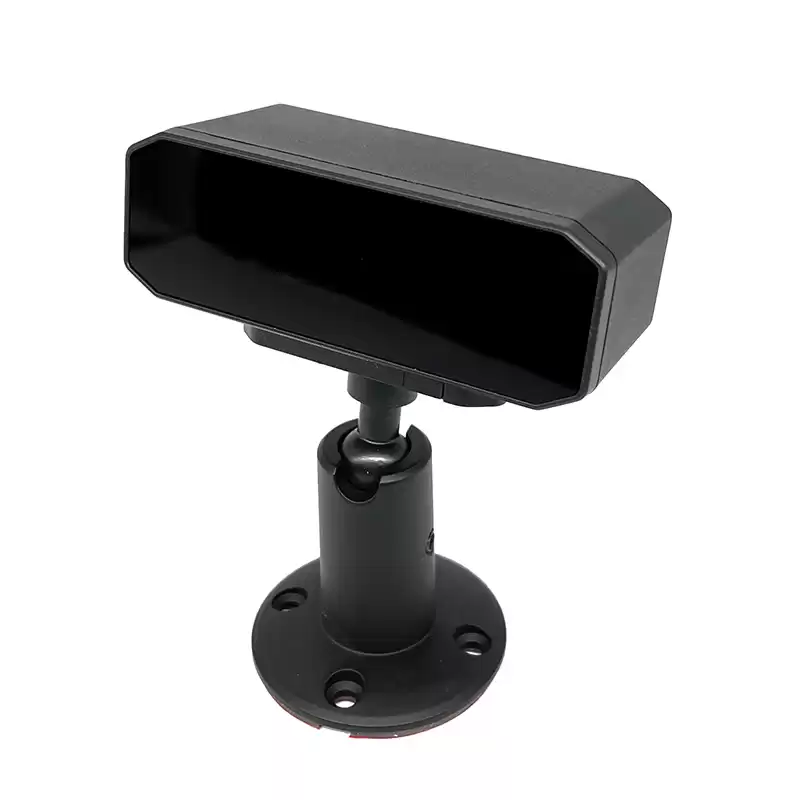

DSM Camera
Features
·SOI GC1054 CMOS Image Sensor
·FULL HD-720P
·2D-NR

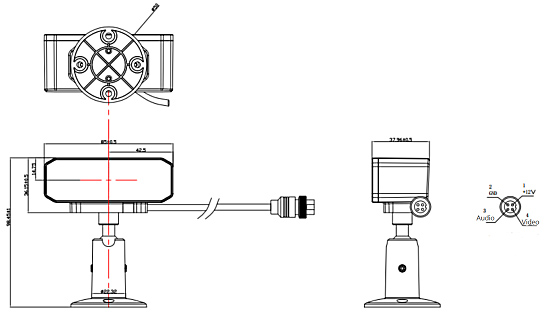

Illustration
TS-382C10-AHD
Parameter
|
Specifications
|
Model
|
TS-382C10-AHD
|
|
Name
|
DSM Camera
|
|
Sensor
|
GC1054 1/4'
|
|
Image Sensor
|
100W CMOS Sensor
|
|
Image color
|
Black-White
|
|
Focal Length
|
4mm
|
|
IR
|
NA
|
|
View Angle
|
D=75° H=60° V=42°
|
|
Signal Type
|
PAL
|
|
FPS
|
25fps
|
|
Properties
|
Temperature
|
-20℃~70℃
|
|
Humidity
|
≤ 90 %
|
|
Voltage
|
9V~16V
|
|
Cable Length
|
2.5m
|
Pin Feet Definition
|
PIN
|
Name
|
Pin Type
|
Function
|
|
1
|
VCC
|
Power
|
12V
|
|
2
|
GND
|
Power
|
Cathode
|
|
3
|
NA
|
NA
|
NA
|
|
4
|
VIDEO
|
AHD
|
Video
|
