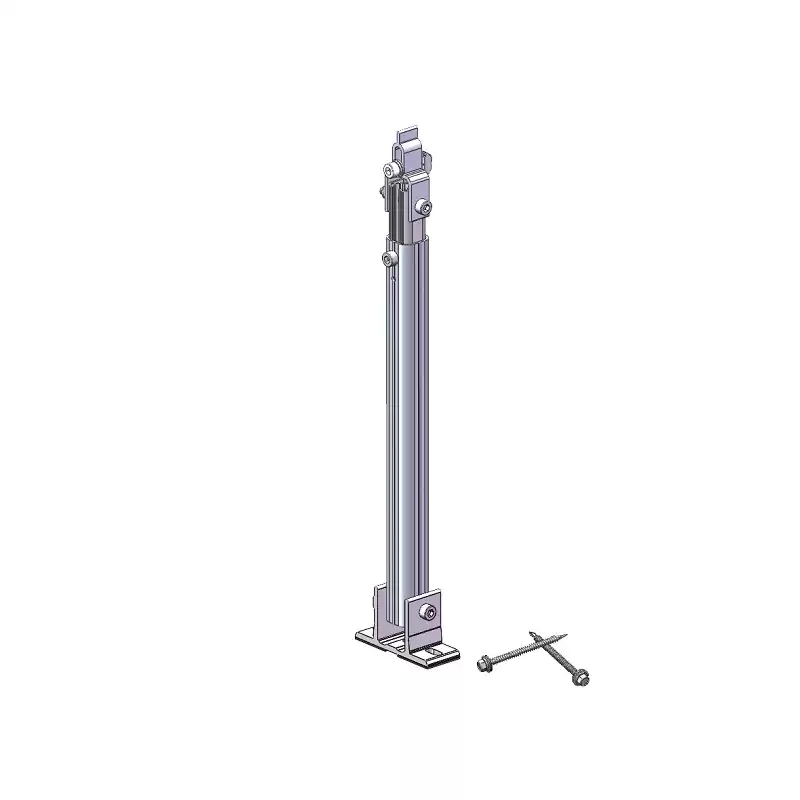

Adjustable rear leg POW-ARL-1530
Product Description:
The structure is pre-assembly so that it can save your time.The unique design with an inner and outer tube design with adjustable joint, made structure stronger.And it different from the same type products on the market.It widely compatible with standing seam clamp.
Product Category:
Tilt
Product Code:
POW-ARL-1530
BOM:
| Product name |
Material |
Quantity |
| Adjustable base |
Al6005-T5 |
1 |
| Adjustable joint |
Al6005-T5 |
1 |
| 27-27 AL tube L=360 |
Al6005-T5
|
1 |
| 32-32 AL tube L=360 |
Al6005-T5
|
1 |
| M8X50 hex socket head bolt |
SUS 304
|
2 |
| M8X40 hex socket head bolt |
SUS 304
|
1 |
| M8X15 hex socket head bolt |
SUS 304
|
1 |
| M8 spring washer |
SUS 304
|
1 |
| M8 flat gasket |
SUS 304
|
1 |
| M8 lock nuts |
SUS 304
|
1 |
| M8 hexagon nuts with flange |
SUS 304
|
1 |
| POW nuts |
Al6005-T5
|
1 |
| Rubber pad |
EPDM
|
2 |
| ST6.3x80 hex head wood screw |
20# |
2 |
Suitable for:
Metal Roof, Concrete Roof
Why choose us:
Unique designed of Mid&End clamps are used for 30-40mm thickness solar modules. A design that includes major specifications saves you inventory cost, quick and easy to install. Innovative design of rail connect base-support can effectively increase the product strength, ensure the safety of the product use. Powerack have a large variety of tin roof brackets provide customers options. Customized allowed according to customer needs to meet special installation requirements.
