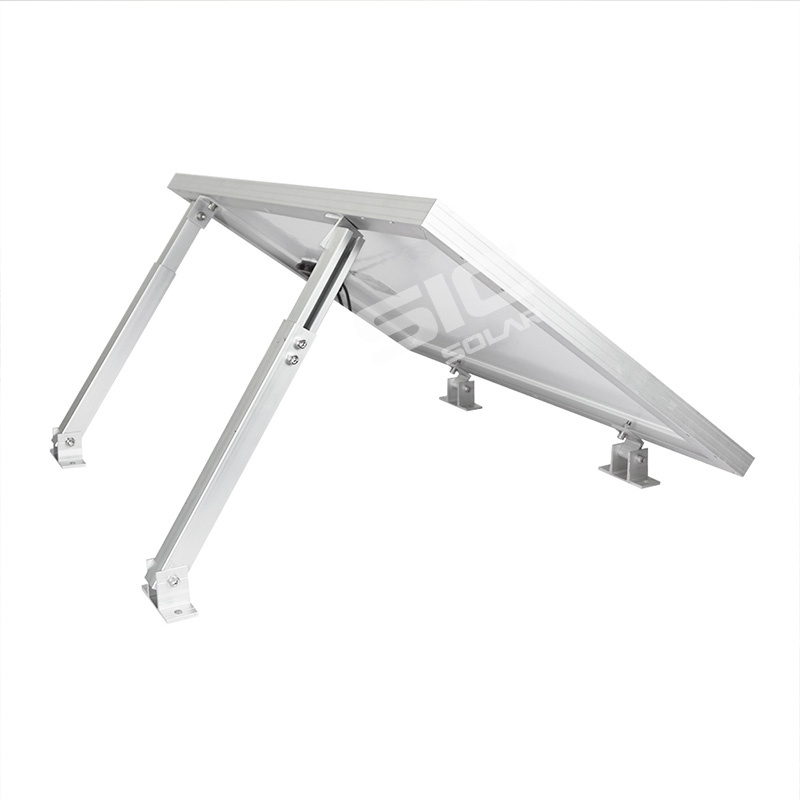

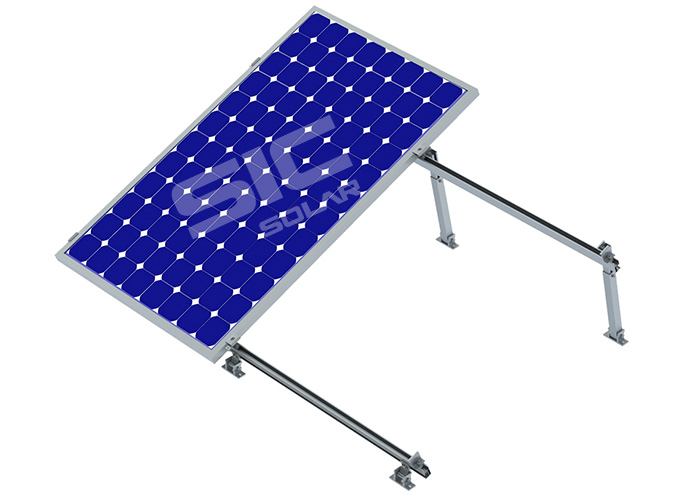

Adjustable flat roof solar mounts
|
Adjustable flat roof solar mounting is developed for both roof and ground solar system. A fixed or adjustable tilt angle could be found, which could help panels win more solar energy during solar altitude changes. Metal roof clamps will be offered to connect to the metal roof, while expansion bolt will be offered to connect to the concrete roof or flat ground.
Adjustable tilt angle can obtain maximum solar power output for season changing.
10°-15°, 15°-30°, 30° -60° adjustable degree optional.
Category: Flat roof mounting
|

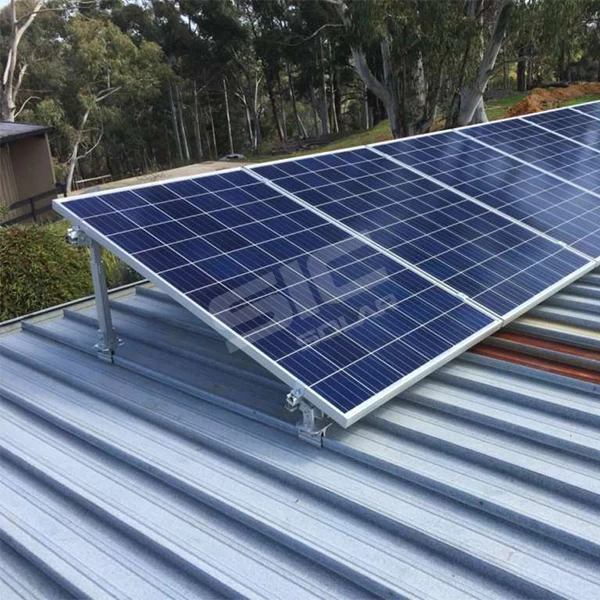

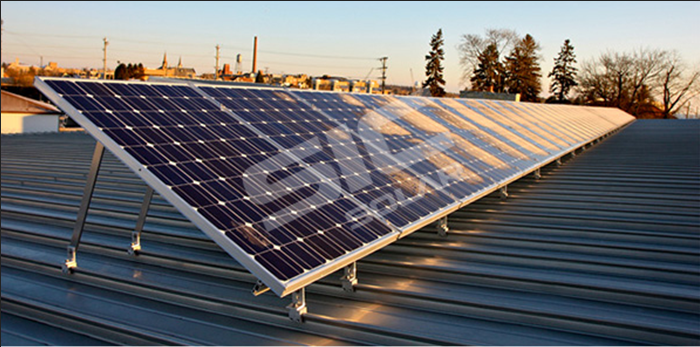

Installation Site
|
Roof or Ground
|
|
Wind Load
|
<60M/S
|
|
Snow Load
|
<1.4KN/M2
|
|
Material
|
Aluminum 6005-T5 & Stainless Steel 304
|
|
Color
|
Natural or Customized
|
|
Anticorrosive
|
Anodized aluminum & stainless steel
|
|
Warranty
|
10 years and 25 years service time
|
Advantages as follow:
☆ 10 - 60 degree adjustable angle- 10-15 degree, 15-30 degree, 30-60 degree or customized.
☆ Max. Solar Power Efficiency - Adjustable angle achieve highest solar power.

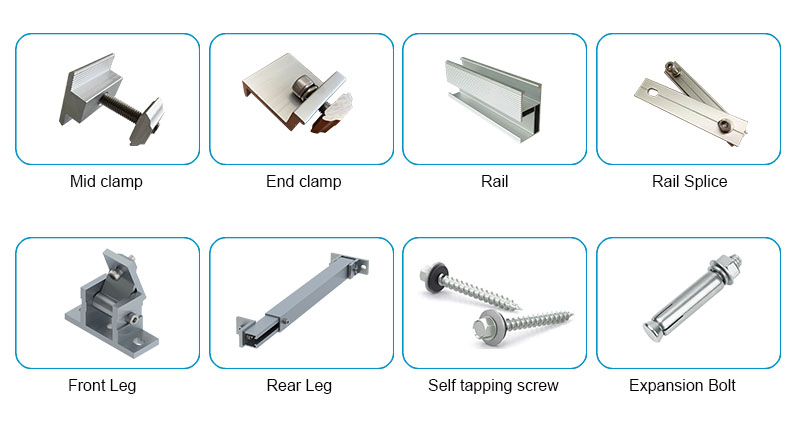

☆ Easy to use - Highly pre-assembled components make the installation more quickly and easily.
☆ Safety - The whole structure have been strictly tested to stand up to the extreme weather
☆ High Quality - Structure have been strictly controlled to ensure 10 years warranty & 25 Years lifetime.
Related certificate
Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.
Aluminum quality certificate -- AL6005-T5 composition list
