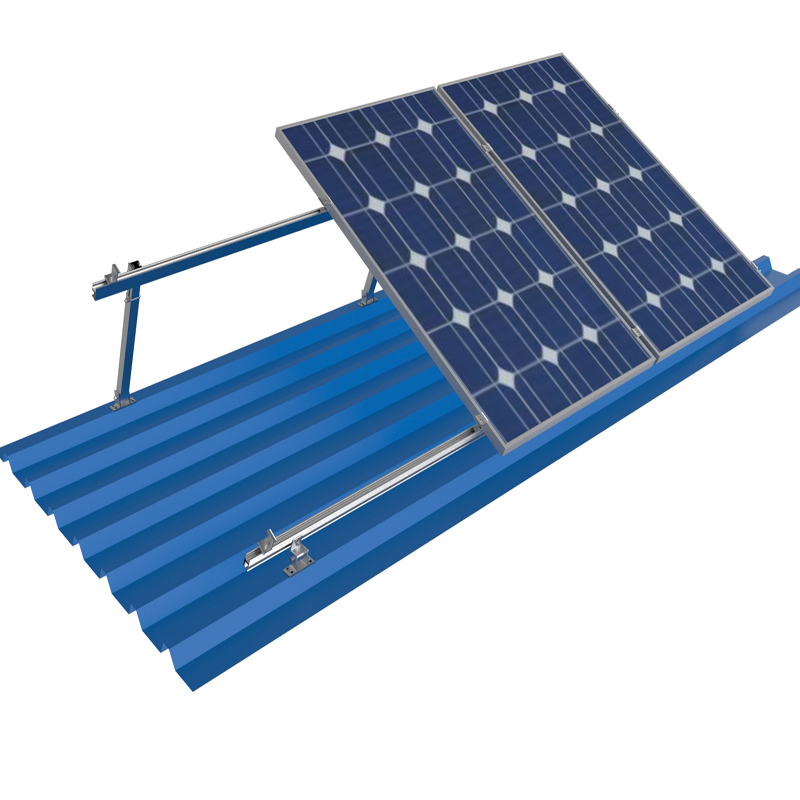

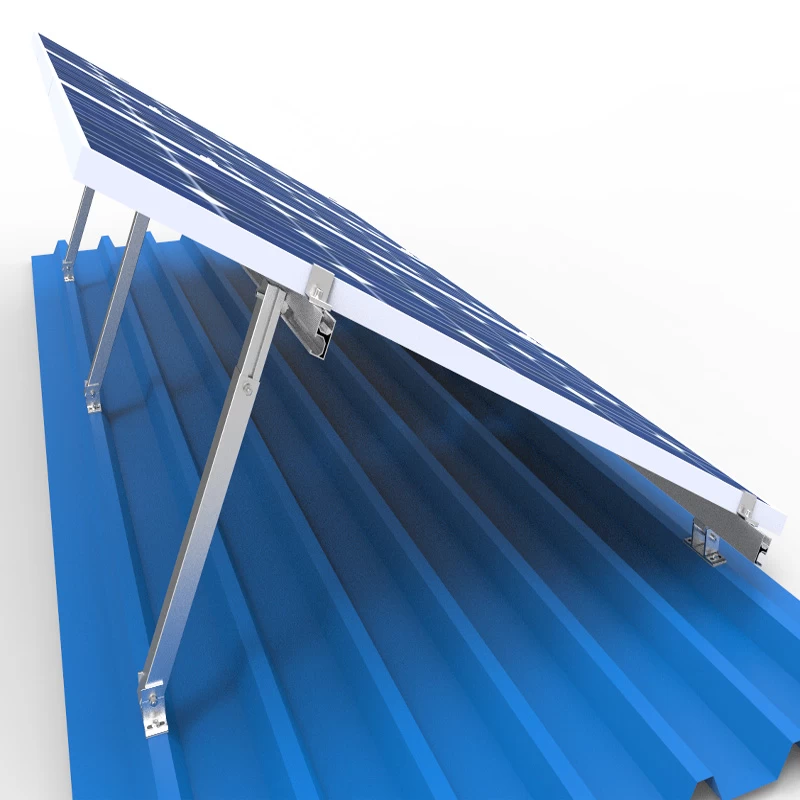

The adjustable roof bracket is also suitable for installation in color steel tiles, and the angle is adjustable to adjust the solar panel to the best angle for receiving solar energy.This design meet the standard of AS/NZS 1170,MCS,CSA etc.Our tilt angle could be flexible from 5° to 60°.
Technical Parameters
|
Installation Angle
|
5-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|
Adjustable roof mount-galvanized roof
Feature:
1. Back leg is adjustable,to ensure the angle is adjustable;
2. The whole system is consist of front leg,back leg,rail,rail splice,inter clamp and end clamp,easy installation
3. Less components,more cost-effective
Advantage:
cost effective&easy-installation;High strength,anti-uv,high frequency insulation(design standard:JIS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
Chemical resistance&weatherablity(certificate:AS/NZS 1170,MCS,CSA etc);
Max wind speed :up to 60m/s;
Material:Al 6005-T5;
Anti-corrosive:anodized;
Warranty:12 years;
Duration:25 years.

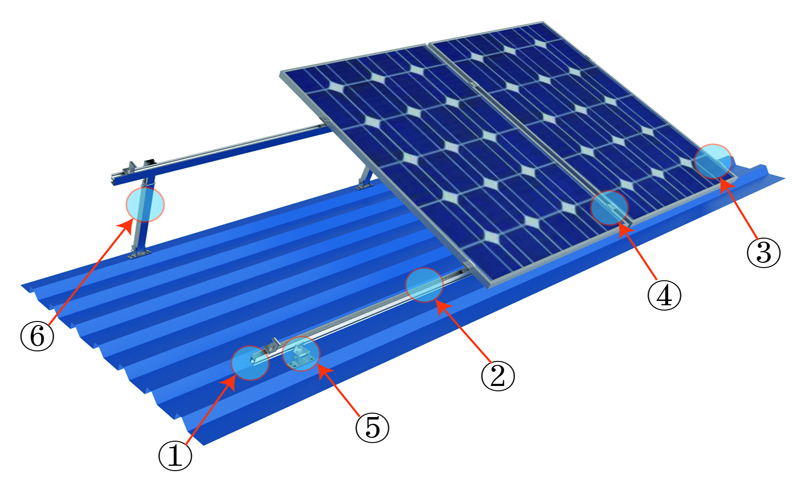

Component photos of adjustable roof mount-galvanized roof
1. Solar roof rail 2. Solar roof rail splice 3. Solar end clamp 4. Solar inter clamp
5. Adjustable front leg 6. Adjustable back leg

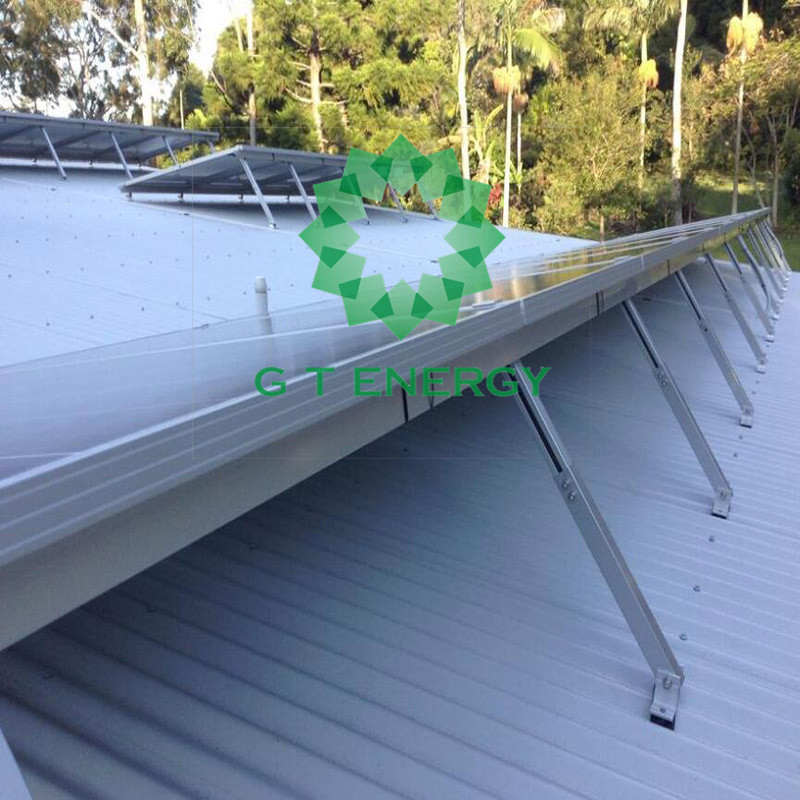

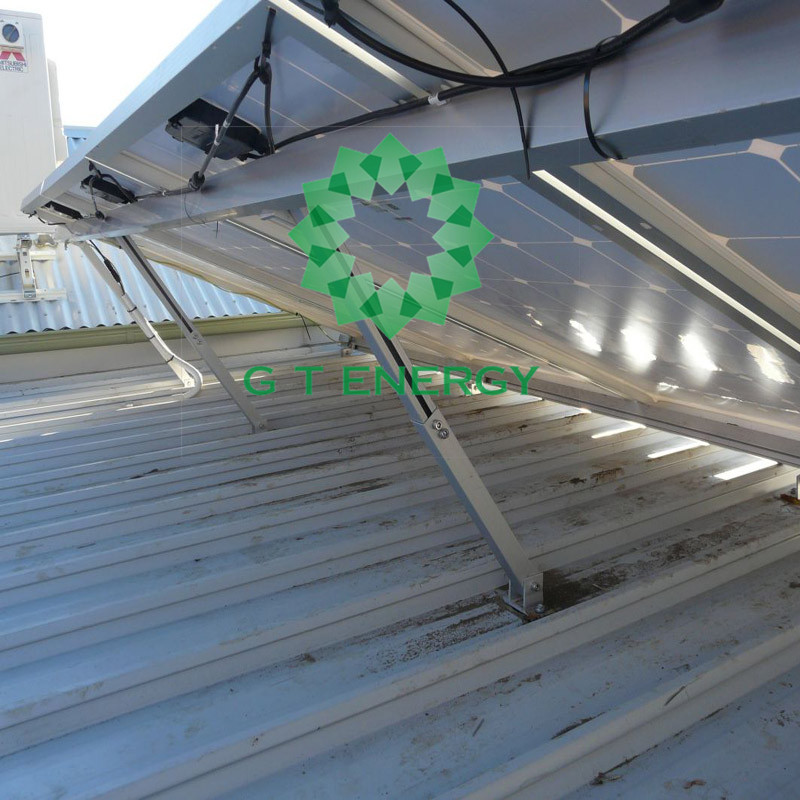

Installation photos of adjustable roof mount-galvanized roof

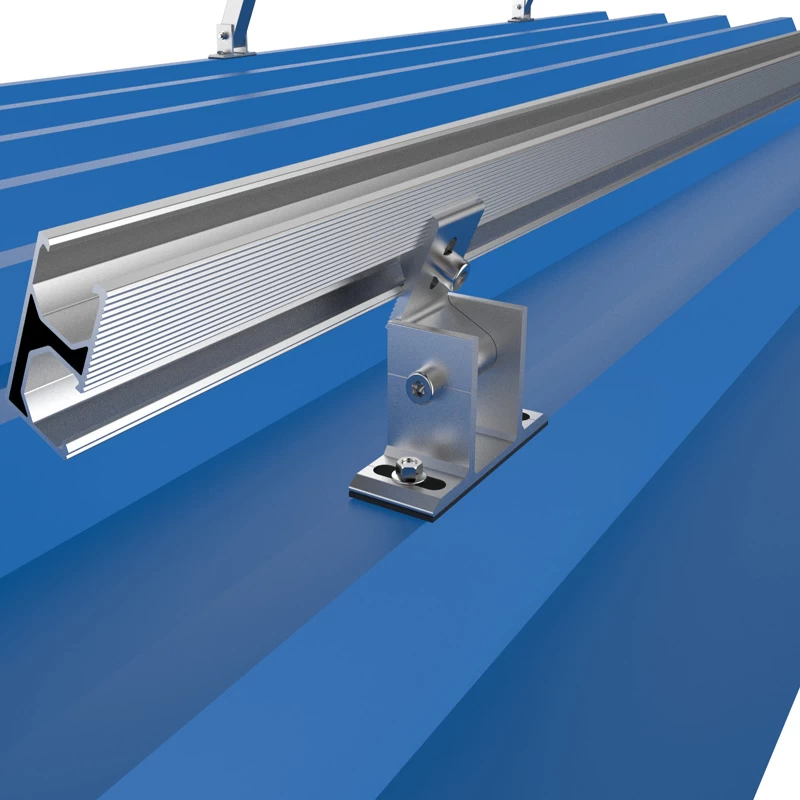

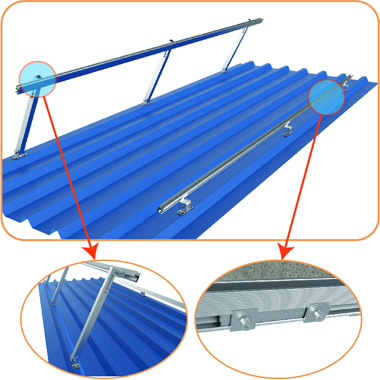

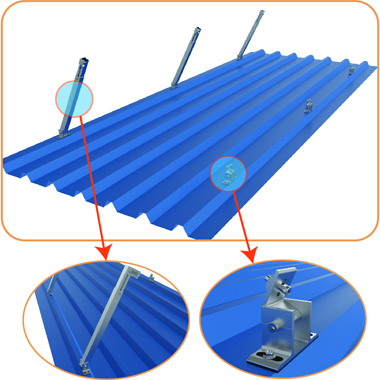

Step1：Install the front legs and back legs Step2：Install rails and rail splices
in the bottom beam of galvanized roof

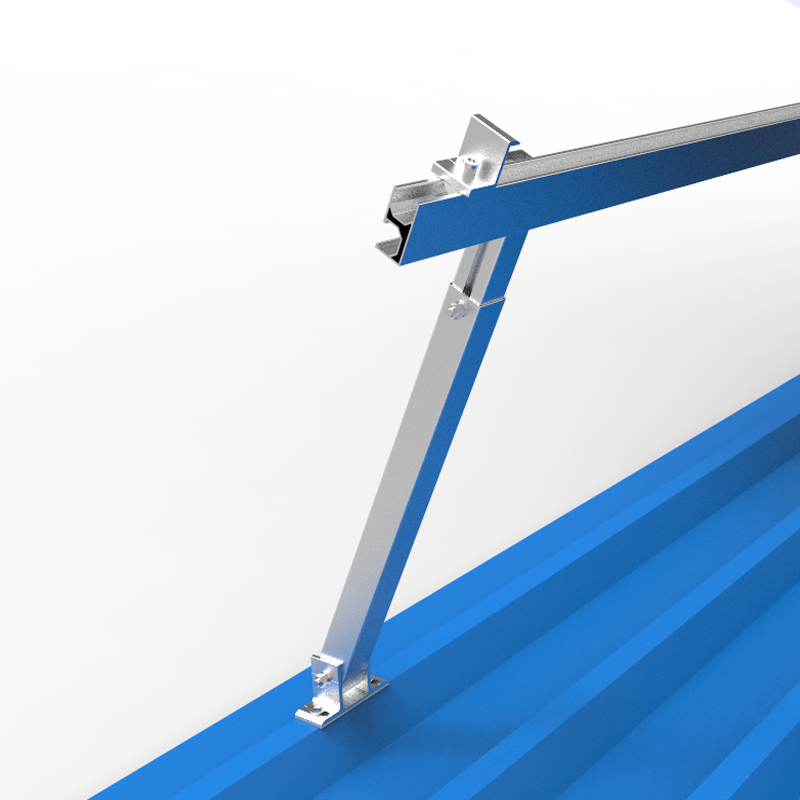

Adjustable back leg Adjustable front leg Adjustable back leg+rail Rail splice

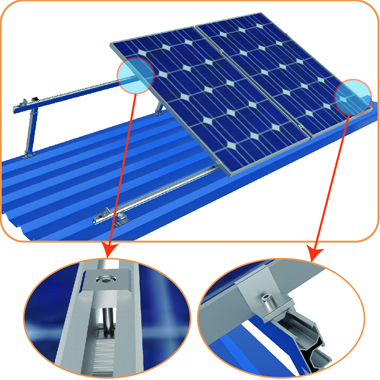

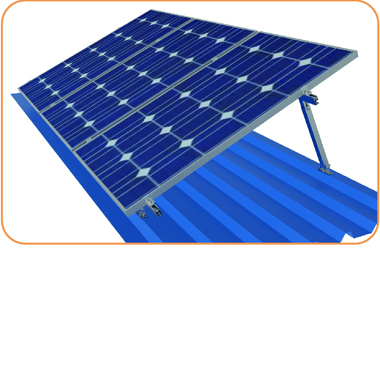

Step3：Fasten panel by inter clamps and end clamps Step4：Installation completion diagram
Inter clamp End clamp

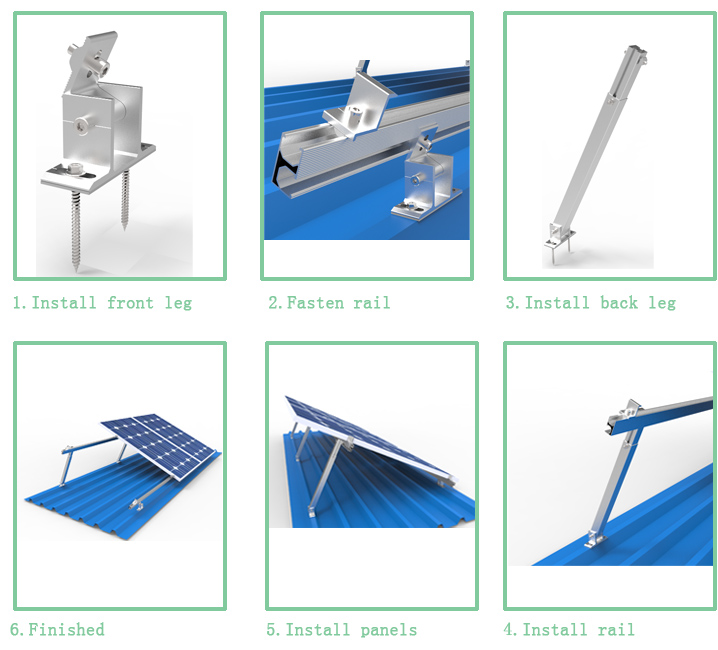

Installation steps

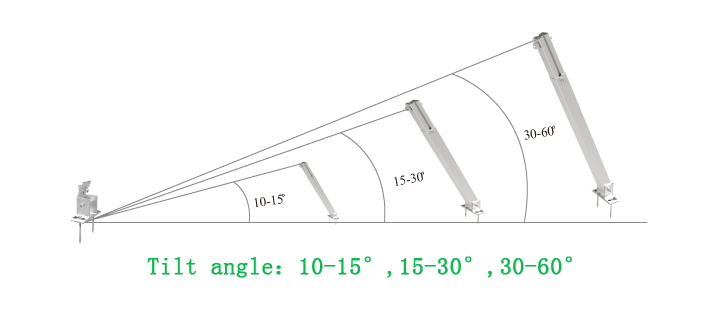

Tilf angle-10-15°，15-30°，30-60°
