This design meet the standard of AS/NZS 1170,MCS,CSA etc.Our tilt angle could be flexible from 0° to 60°.
Technical Parameters
|
Installation Angle
|
10°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2011
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|
Advantage:
cost effective&easy-installation;High strength,anti-uv,high frequency insulation(design standard:JIS C 8955:2011,GB 50009-2012,IBC 2009,CBC 2010);
Chemical resistance&weatherablity(certificate:AS/NZS 1170,MCS,CSA etc);
Max wind speed :up to 60m/s;
Material:Al 6005-T5;
Anti-corrosive:anodized;
Warranty:12 years;
Duration:25 years.

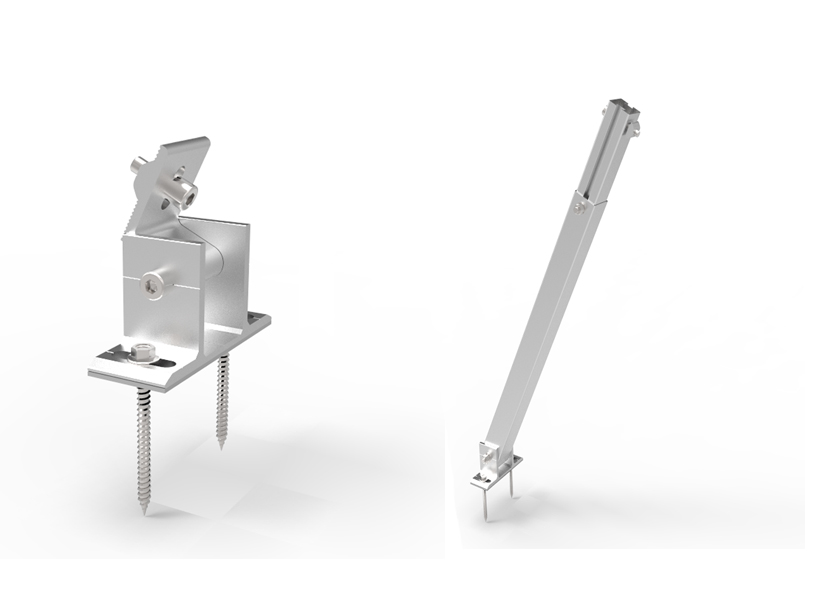

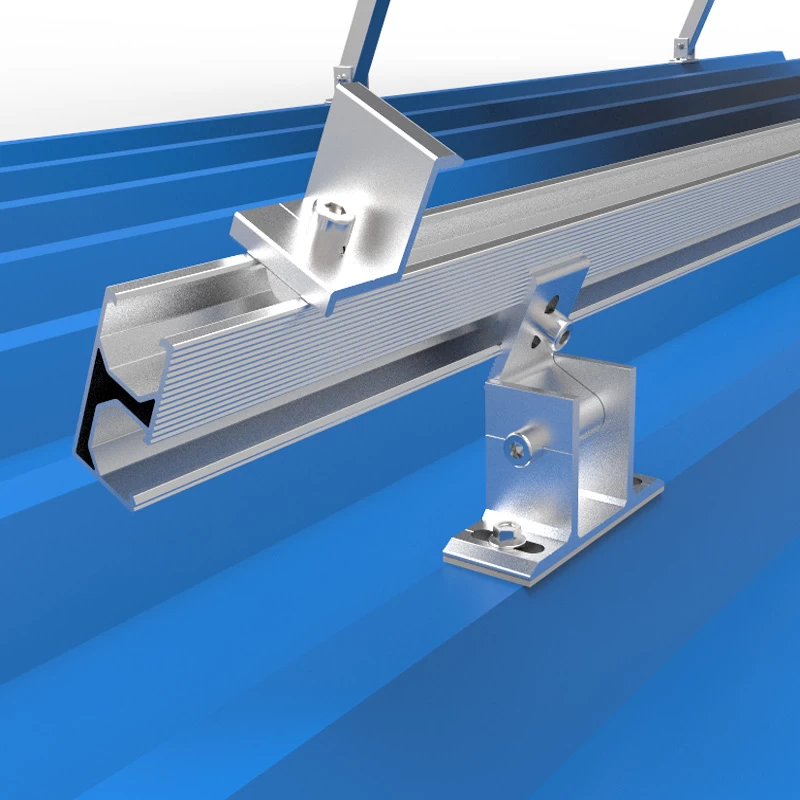

Component photos
Installation steps:only 6 steps;
1.install front leg;
2.fasten rail;
3.install back leg;
4.install rail;
5.install panels;
6.finished.
Tilf angle-10-15°，15-30°，30-60°,the angle could adjust according to your requirement.
