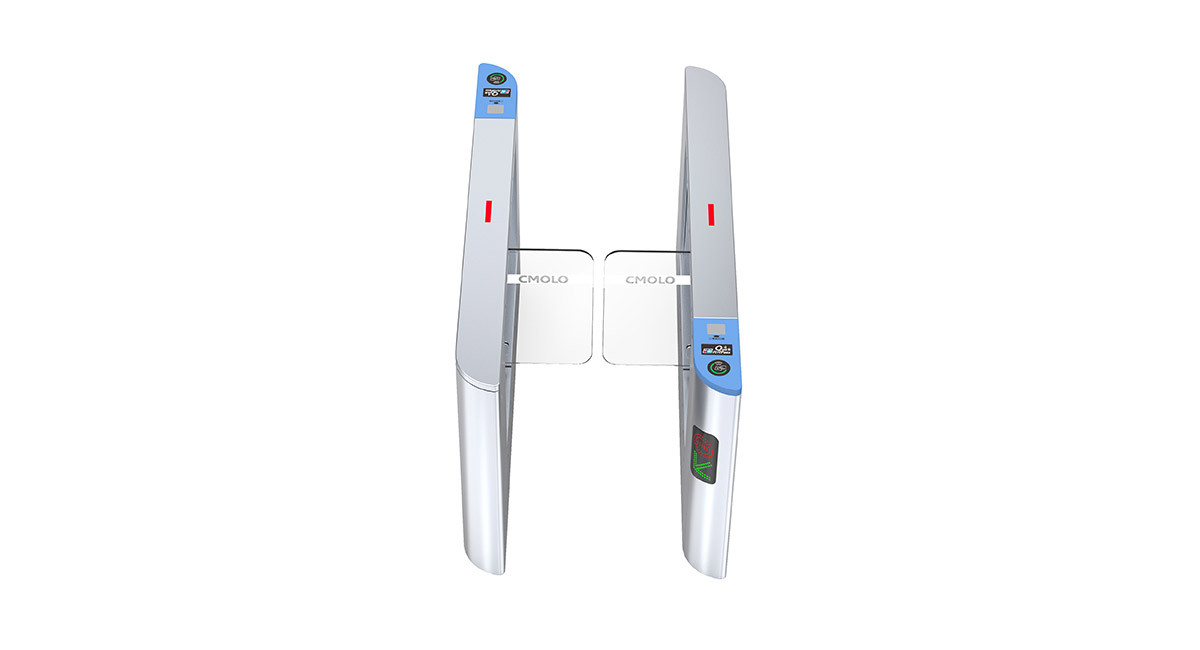

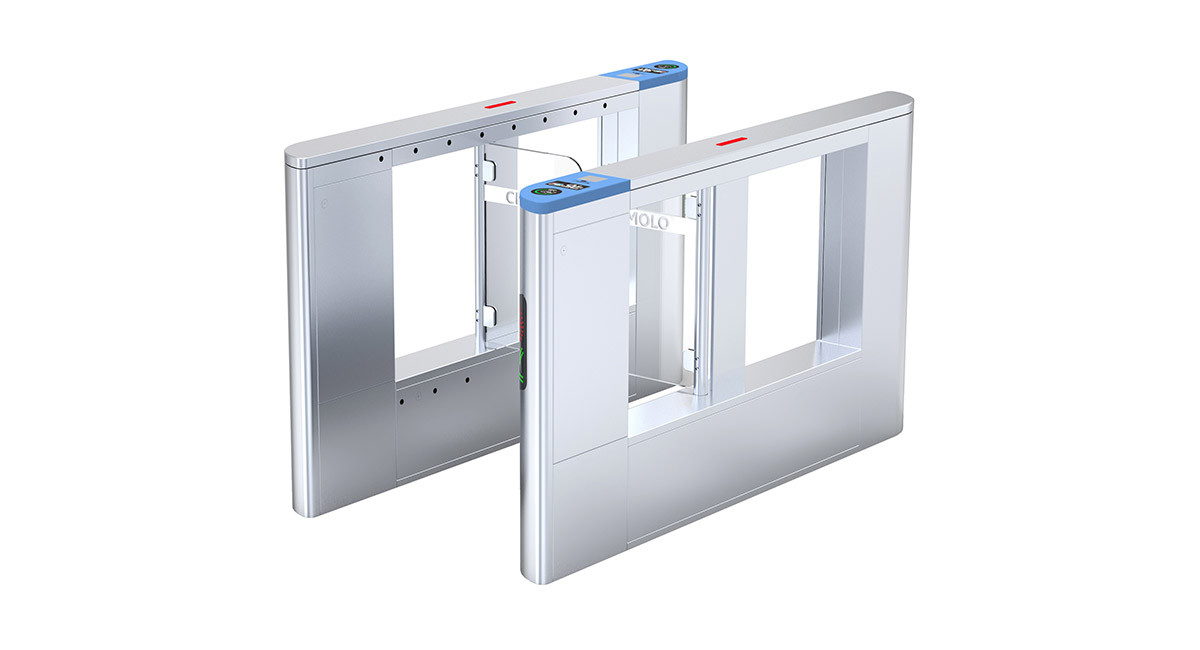

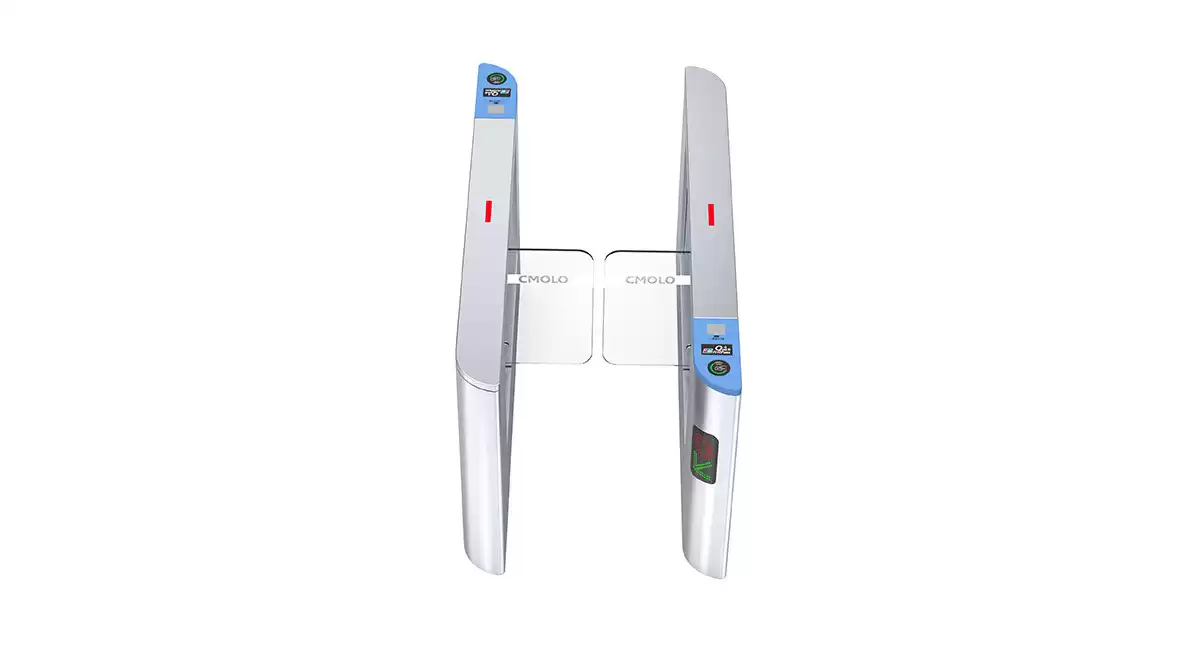

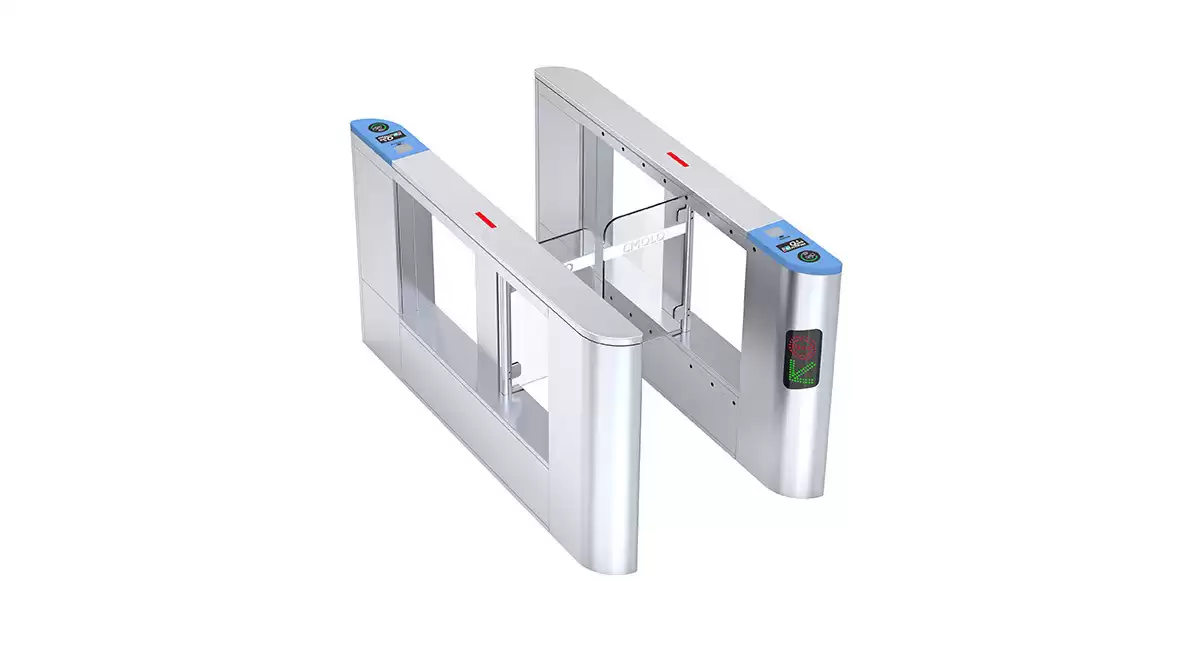

AFC Metro Security Swing Turnstile Gate

The cabinet of AFC metro turnstile RPW-101 is made of high-quality stainless steel, with PA plastic mold parts, the whole machine is smooth and anti-collision, durable; the mechanism module adopts DC brushless motor and accurate positioning encoder, combined with the advanced DSP+ARM motor control technology and CMOLO's original motor control algorithm, to make the subway speed gate turnstile have the advantages of high stability, high safety, long life, accurate detection, fast operation, and high pedestrian flow rate etc.

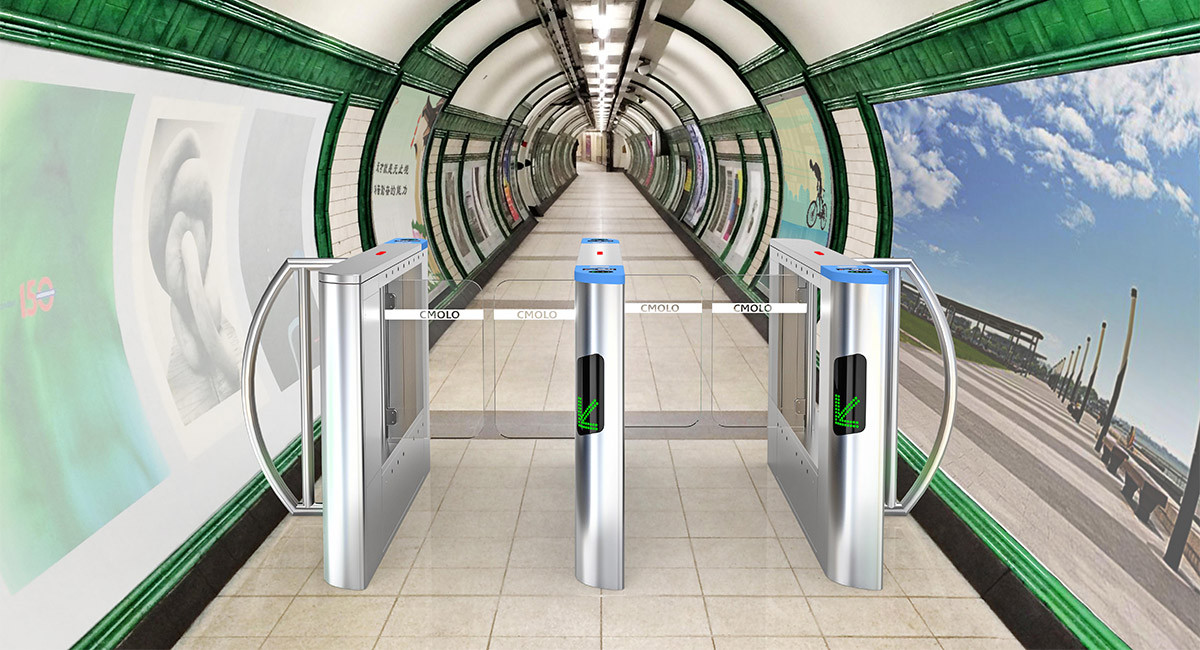

CMOLO AFC metro turnstile is suitable for public transportation occasions such as subway stations, high-speed railway stations, bus stations, etc.









advanced core patented technology





high safety, triple anti-pinch





high stability, optimize the mechanism structure





long life, longer than 10 million times

















accurate & fast detection





high visitor flow rate usage





modular design, easy maintenance





high compatibility, high integration















mechanical power-off auto open gate



















Advanced & Intelligent Metro Turnstile Core Technology



Advanced core logic algorithm

The AFC metro turnstile adopts advanced servo control system and DSP+ARM motor control technology, combined with CMOLO's originally developed motor control algorithm, to achieve precise control and positioning of the obstacle and maintain stable performance.



The turnstile adopts CMOLO® patented passing detection algorithm and matrix photoelectric stereo detection technology, the turnstile can sensitively detect illegal intrusions such as reverse passing and tailgating, and can issue warnings in the form of sound and light, and can be linked with other security systems.



Strong mechanism structure

The lossless modular mechanism structure independently developed by CMOLO, combined with the optimized mechanical structure design, enables the mechanism to have high anti-fatigue performance and impact resistance; the full CNC processing technology ensure the precision, strength, concentricity of the mechanism, and the transmission ratio are accurate, efficient and stable, which can precisely control the rotation angle of the gate, reduce the loss to ensure the reliability of the mechanism, and enhance the service life of the mechanism and ensure that the AFC metro turnstile is stably working in the high pedestrian flow rate, and the normal operation of the speed gate turnstile for a long time.



Long service life

The mechanism and control system of the AFC metro turnstile have passed 10 million times life tests.



All-around Pedestrian Safety Protection



Triple anti-clamping

With triple anti-clamping technologies such as infrared anti-clamping, mechanical anti-clamping and anti-collision by advanced electric current detection, speed gate turnstile can protect pedestrian safety more comprehensively.



Automatic door opening when mechanical power failure

The AFC metro turnstile has the automatic opening technology when there is mechanical power failure. After the power failure, the gate can be opened automatically, which is convenient for the rapid evacuation of the crowd; compared with the conventional power failure opening method, it is safer and more reliable.



Over-force feedback control

When the gate is momentarily subjected to an impact force beyond the safe range, the gate can be slowly pushed for a certain distance to buffer the impact force on the mechanism and the reverse impact force on pedestrians.



Anti-electric shock

All electric modules are designed to operate under the safety voltage of 24V, and configured with residual current protective device to prevent pedestrian from being injured by electric shocks.



Emergency open

The AFC metro turnstile equips with emergency escape control device, to make the system automatically open the gate to evacuate pedestrian.





Modular Design

The AFC metro turnstile adopts a modular design and adopts the CANBUS technology commonly used in high-end industries. Each functional module is independently mounted on the Bus, and the daily inspection and maintenance are convenient and fast.







Seamlessly compatible with ticket checking system

The AFC metro turnstile has very strong compatibility and can be seamlessly connected with the ticket checking system to complete the smooth ticket checking movement.





Customization



Appearance Cabinet size, material and surface treatment process etc. of turnstile can be moderately customized.
Lane width The maximum lane width of turnstile is 900mm, and the cabinet length can be increased accordingly
System integration

Integrate with access control system, human body temperature measurement system, ticketing system, time attendance system, visitor system etc.

Integrate with QR code, face, fingerprint, ID/IC card, passport identification system etc.

Integrate with card collection system, and customize card collection device
