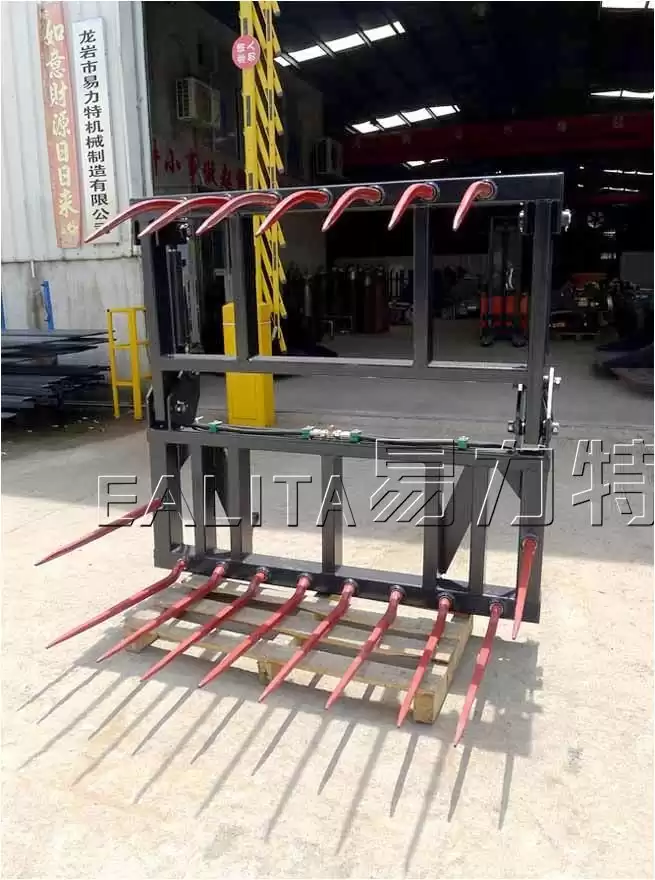

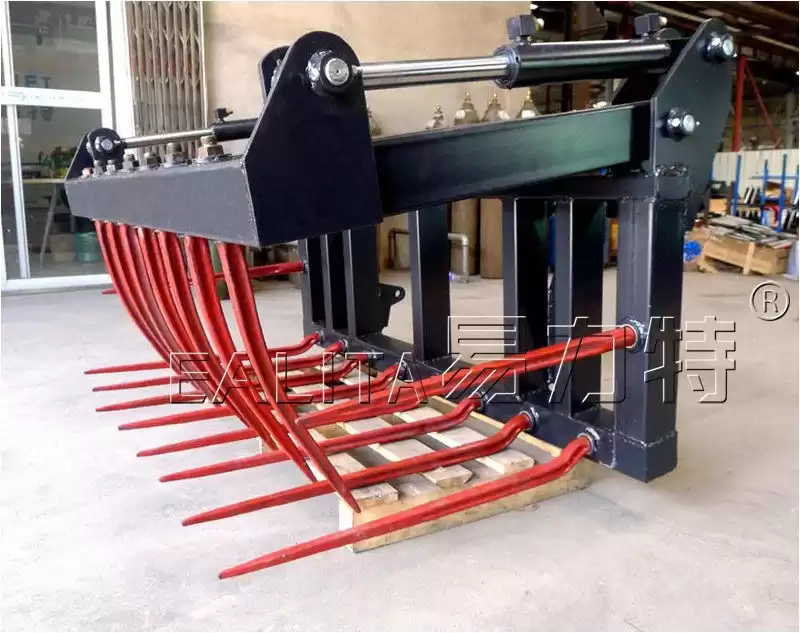

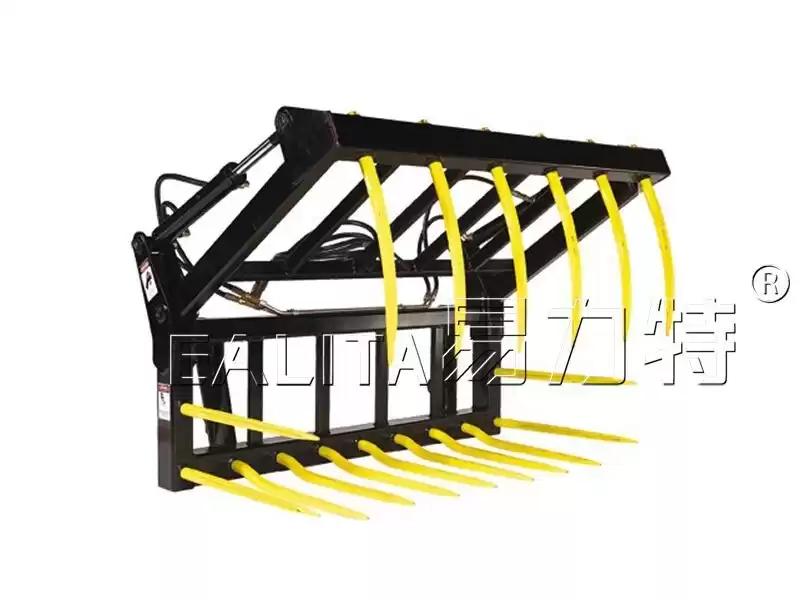

This attachment requires a third hydraulic control circuit to activate the grab portion or the attachment.
- The tines are forced through the silage in a circular motion using minimal effort and ensuring an efficient cut, clamping the material in the attachment.
- The tines are spaced to ensure wastage from material falling through the tines is kept to a minimum.
- All tines fit into a tapered sleeve and are removable.
Specification
|
Type
|
Weight
|
Width
|
Depth
|
Volume/Capacity
|
Bottm Tines
|
Top Tines
|
Side Tines
|
|
T-150PSG
|
253kg
|
1500mm
|
860mm
|
0.64m3/394kg
|
8x880mm
|
8x680mm
|
2x810mm
|
|
T-180PSG
|
304kg
|
1800mm
|
860mm
|
0.76m3/467kg
|
10x880mm
|
9x680mm
|
2x810mm
|
