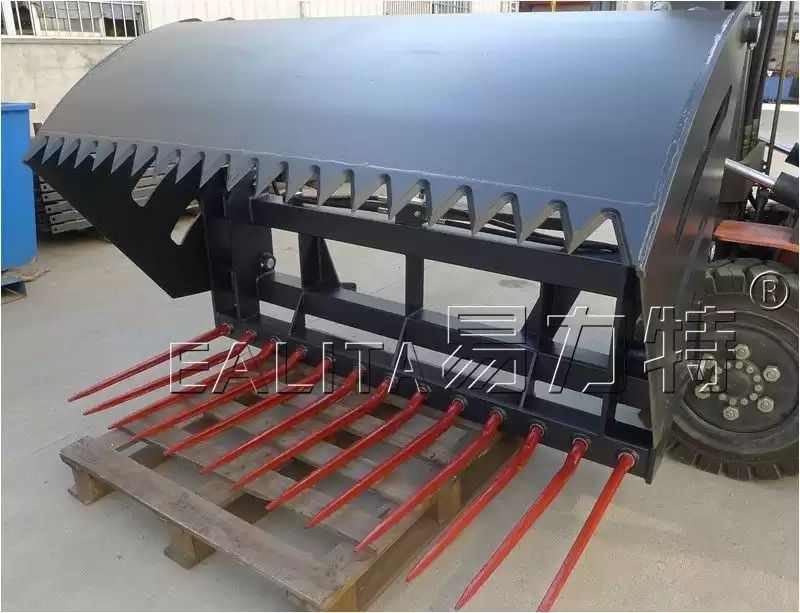

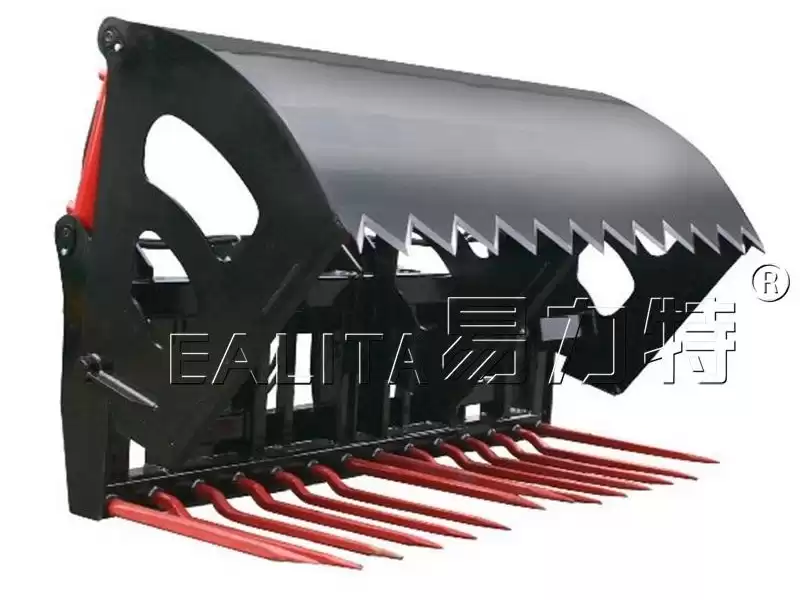

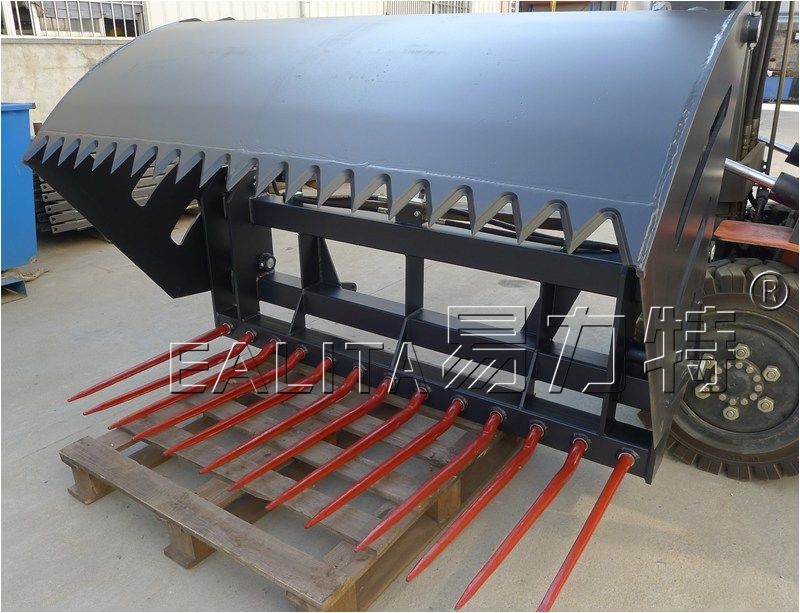

Farm Equipment Heavy Duty Silage Shear & Tine Grab T-SS


  • Surface TreatmentBlack Painting or As Request
  • TypeT-SS

The silage shear grab is designed to cut silage blocks from the silage pit, leaving a smooth face that is sealed to prevent spoliage.

- It requires a third hydraulic control circuit to active the grab/cutting portion of the attachment, which features a hardened serrated front knife and hardened plain knives on the sides.

- The rounded front profile of the grab is forced through the silage in a circular motion, reducing the cutting force required and ensuring an efficient and clean cut.

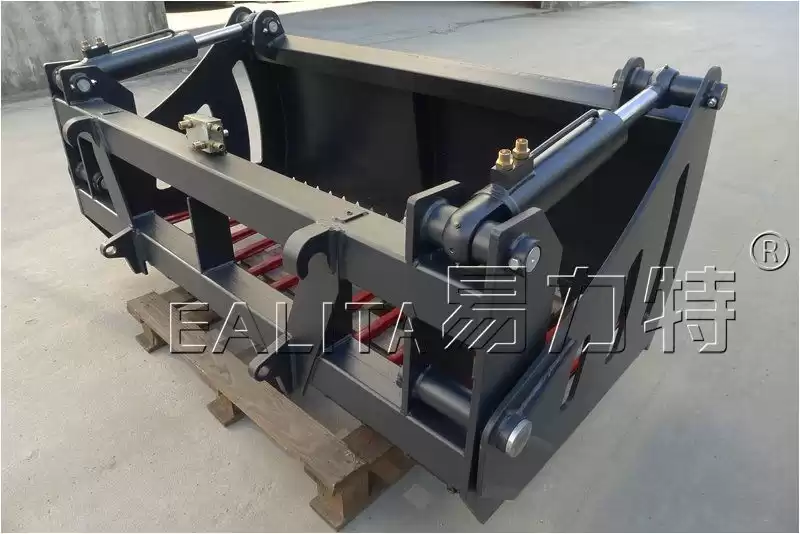

- The two heavy duty hydraulic cylinders provide ample cutting force and the silage shear grab is fitted with quality heavy-duty tines to accommodate this.

- All tines fit into a tapered sleeve and are removable.


Specification

Type Weight Width Depth Volume/Capacity Opening Bottom Tines Tines Space
T-140SS 370kg 1400mm 880mm 0.81m3/498kg 730mm 11x820mm 125mm
T-170SS 460kg 170mm 880mm 0.98m3/602kg 730mm 13x820mm 130mm



Product Tags Heavy Duty Silage Shear & Tine Grab          Silage Shear Grab          Farm Equipment Silage Shear Grab
