Product Description

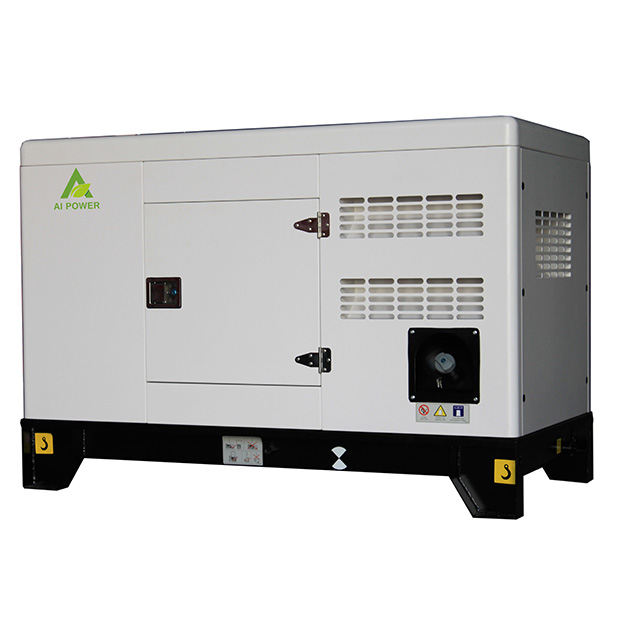

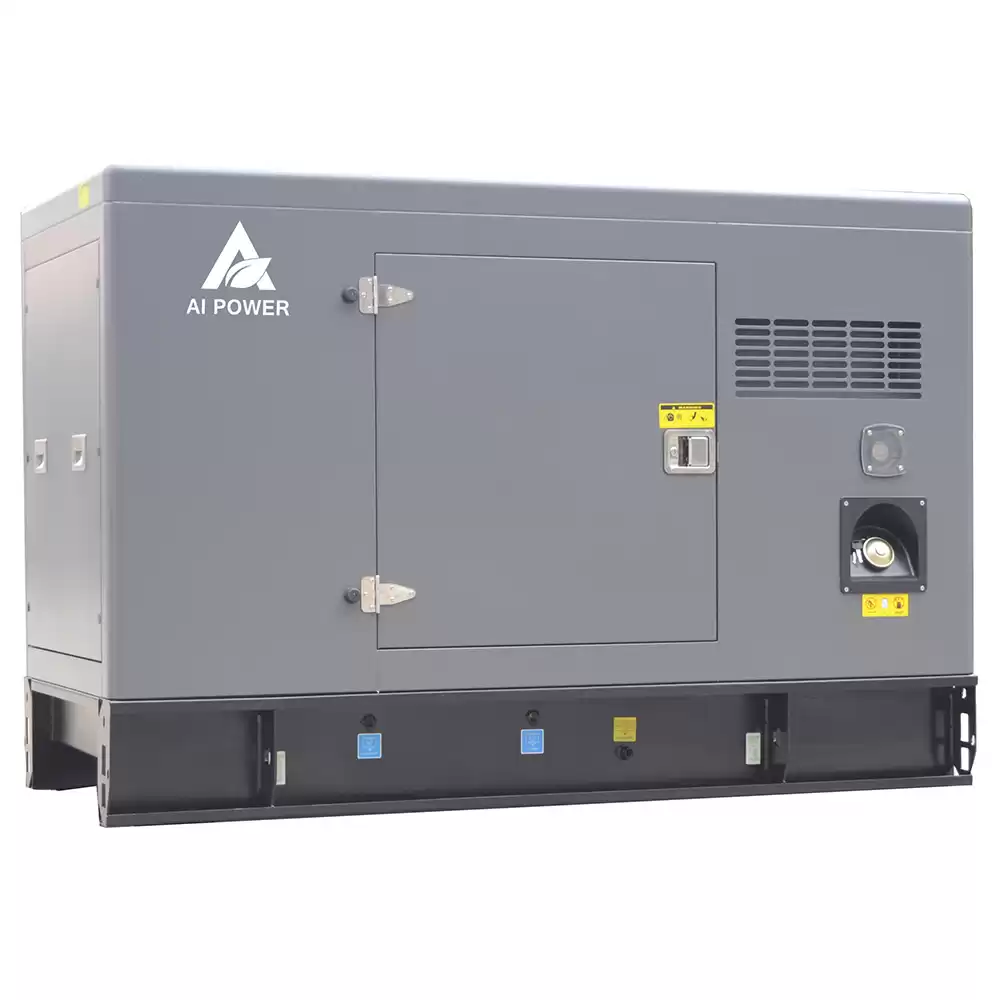

Ai Power Diesel Generator 50kva 40kw with Cummins Engine 4BTA3.9-G2
|
Frequency
|
|
|
|
Voltage
|
220/380V, 230/400V, 240/415V
|
127/220V, 230/380V, 254/440V, 277/480V
|
|
Power range
|
|
|
|
Engine
|
|
|
Alternator
|
Copy stamford, bruless, copper
|
|
Controller
|
Smartgen HGM6110, HGM6120
|
|
Genset type
|

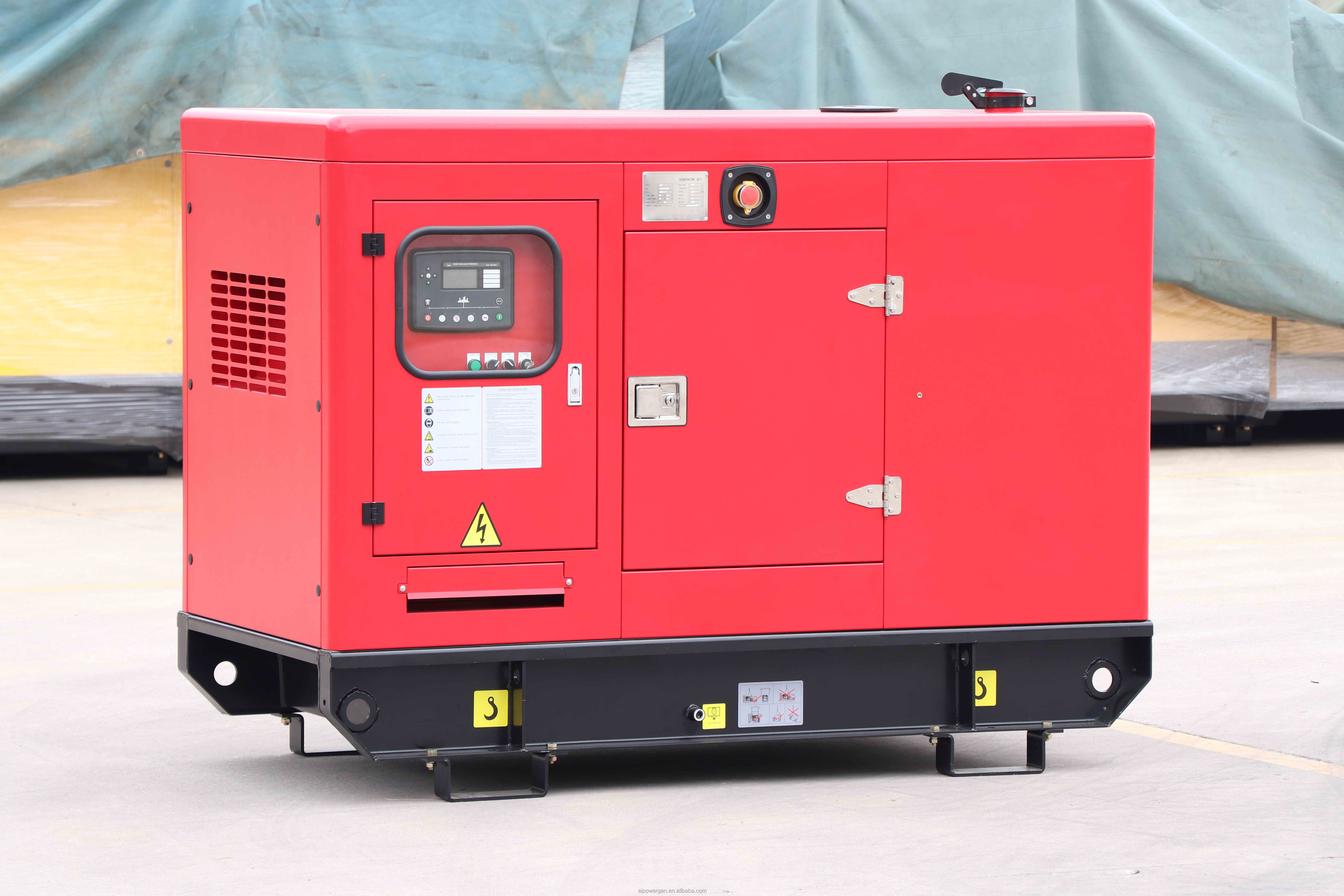

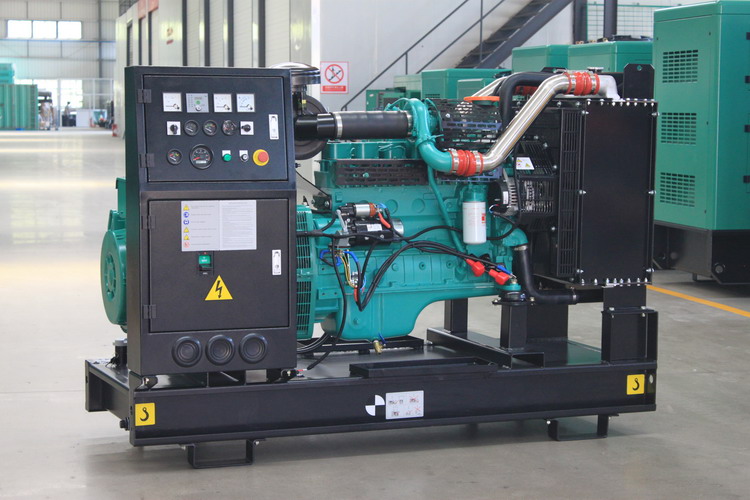

open generator, silent genset, container power generator, mobile diesel generator
|
|
Option
|
ATS, synchronization system
|
|
GENERAL ENGINE DATA
|
|
Engine manufacturer
|
Dongfeng Cummins Engine Co. Ltd
|
|
Engine brand
|
Cummins
|
|
Engine model
|
4BTA3.9-G2
|
|
Engine speed (rpm)
|
1500
|
|
Engine output(kWm)
|
|
|
Standby Power
|
55
|
|
Prime Power
|
50
|
|
Continuous Power
|
TBD
|
|
No. of Cylinder
|
4
|
|
Aspiration
|
Turbochanger& Aftercooler
|
|
Bore * Stroke (mm)
|
102 * 120
|
|
Displacment (litre)
|
3.9
|
|
Compression Ratio
|
17.3:1
|
|
Engine Idle Speed (rpm)
|
950-1050
|
|
FUEL SYSTEM
|
|
Type Injection System
|
BYC A/Electronic Governor
|
|
Fuel Consumption (litre/hour)
|
|
|
100% prime power
|
12.9
|
|
75% prime power
|
10
|
|
50% prime power
|
7
|
|
25% prime power
|
4.2
|
|
EXHAUST SYSTEM
|
|
Maximum Back Pressure (kPa)
|
10
|
|
Exhaust Gas Temperature (standby/prime power) (°C)
|
548/526
|
|
Exhaust Gas Flow(standby/prime power) (litre/sec.)
|
134/125
|
|
Alternator manufacturer
|
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
|
|
Alternator brand
|
Leroysomer
|
|
Alternator model
|
TAL-A42-G
|
|
Control system
|
SHUNT
|
|
A.V.R.
|
Included
|
|
Voltage regulation
|
±1.0%
|
|
Insulation system
|
Class H
|
|
Protection
|
IP23
|
|
Rated power factor
|
0.8
|
|
Winding pitch
|
Two thirds
|
|
Winding leads
|
6
|
|
Frequency (Hz)
|
50
|
|
Voltage (V)
|
400
|
|
Phase
|
3
|
|
Output ratings (kVA/kW)
|
|
|
----------------Cont.H-40°C
|
50/40
|
|
----------------Standby-27°C
|
55/44
|
|
THF
|
<2%
|
|
TIF
|
<50
|
|
Max. overspeed (Rev/Min)
|
2250
|
|
Bearing
|
Single
|
Supply Scope
-
Engine include air, fuel, oil filters, starting motor and charge alternator etc.
-
Brushless AC alternator, single bearing, flange connection, with AVR
-
Radiator with engine driven fan mounted on skid
-
Channel steel base frame, <550KW base 8hrs mounted fuel tank as standard
-
Anti-vibration pads between engine/alternator and base frame
-
Circuit breaker 3P as standard, 4P optional
-
Auto control panel
-
Start battery with connecting cable and floating battery charger
-
Flexbile pipe, exhaust elbow, industrial silencer etc.
-
Standard tools kit
-
Electric drawing, test report ,operation & maintaince manual of generator etc.
-
Optional soundproof/Container canopy, ATS cabinet, remote control panel, synchronization panel, movable trailers, heat exchanger, remote horizontal water tank system, external fuel tank, etc
