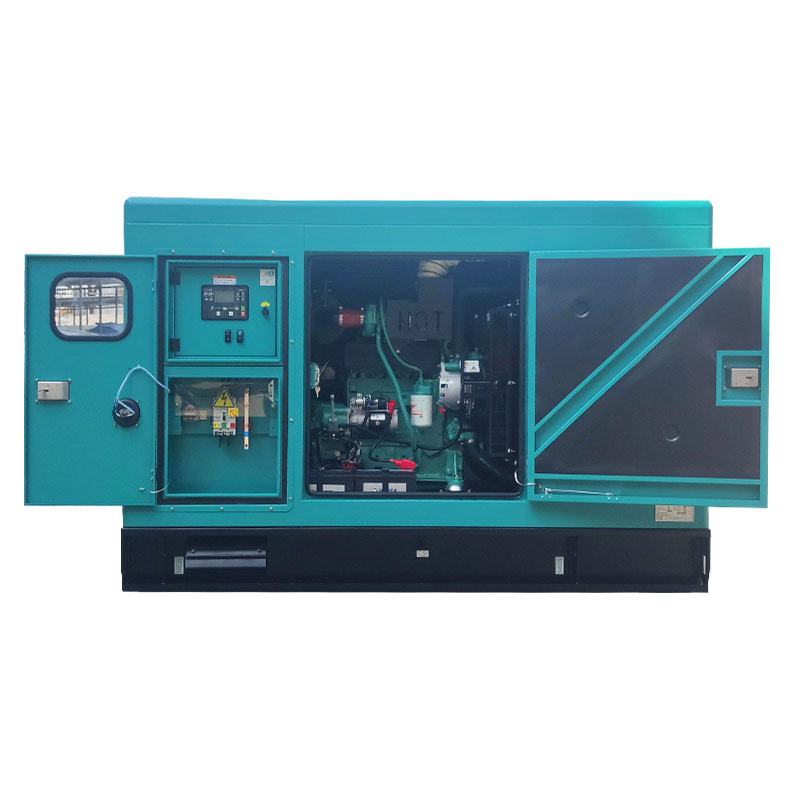

Cummins Deutz Silent Diesel Generator 20kw 25kw Power Mobile Generator

Silent Diesel Generator 20kw 25kw Power Portable Generator 20kva 25kva Generators Set

Facebook Twitter Pinterest LinkedIn 分享
Product Description

Cummins Deutz Silent Diesel Generator 20kw 25kw Power Portable Generator 20kva 25kva Generators Set Generador

Frequency
50HZ, 60HZ
Voltage
127/220V, 220V/380V, 230V/400V, 240V/415V, 277V/480V
Engine
DCEC, UK, Deutz, FPT, Chinese Yuchai, SDEC, Weichai, Ricardo etc
Alternator
Leroy somer, Stamford, Meccalte etc
Controller
Deepsea, Smartgen
Genset type
open genset, silent diesel genset, mobile genset etc
GENERAL ENGINE DATA
Engine brand
Ricardo-Kofo
Engine model
N4100DS-30
Aspiration
Naturally
Type of combustion chamber
Direct injection
Number of cylinders
4
Bore/Stroke(mm)
100 x 115
Displacement(L)
3.61
Compression ratio
19:1
12hrs rated output(KW)
30.1
Standby output(KW)
33
Rated speed(r/min)
1500
No load Speed(r/min)
≤1575
Idling speed(r/min)
≤650
Pistion speed(r/min)
11.5
Fuel consumption rate(g/kw.h)
251
Rated output fuel consumption (L/h)
8.99
Crankshaft rotating direction
Counter clockwise(face to output end)
Cooling method
Forced water cooling
Lubricating method
Pressure lubrication
Starting method
Electric motor start
Net mass(kg)
380
Firing order
1-3-4-2
Exhaust temperature ℃
≤600
Intake pipe diameter mm
55
Oil sump capacity L
13
Max oil temperature ℃
100
Oil consumption rate(g/kw.h)
≤2.04
Coolant capaicty L
13
Alternator manufacturer
Xiamen Ai Power Technology Co., Ltd.
Alternator brand
AI POWER
Alternator model
AI184F
Control system
SELF EXCITED
A.V.R.
Included
Voltage regulation
±1.0%
Insulation system
Class H
Protection
IP23
Rated power factor
0.8
Winding pitch
Two thirds
Winding leads
12
Frequency (Hz)
50
Voltage (V)
400
Phase
3
Output ratings (kVA/kW)

----------------Cont.H-40°C
25/20
----------------Standby-27°C
27.5/22
THF
<5%
TIF
<50
Max. overspeed (Rev/Min)
2250
Bearing
Single

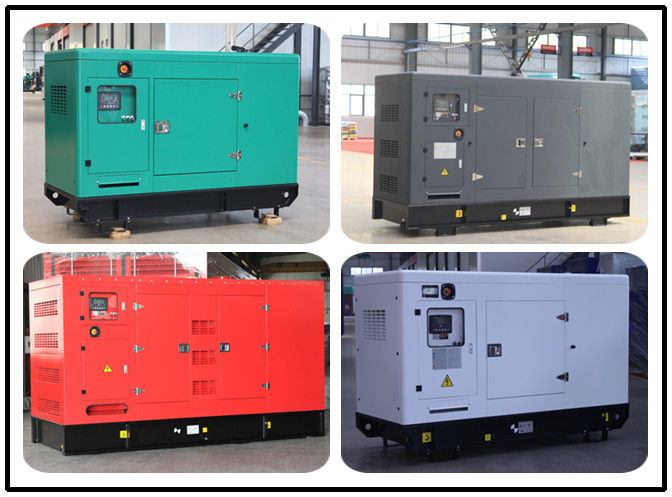

50kva silent generator set

Products Show

Open Diesel Generator:

1.Famous brand engine couple with high quality alternator

2.Large size cooling radiator

3.Heavy duty steel base frame
4.Strong anti-vibration mat
5.Standard free maintenance battery
6.AC alternator for battery charger
7. Heavy-duty air filter, oil filter, water filter
8.Famous brand controller and breaker
9.Optional fuel tank, silent canopy, ATS, synchronization panels.

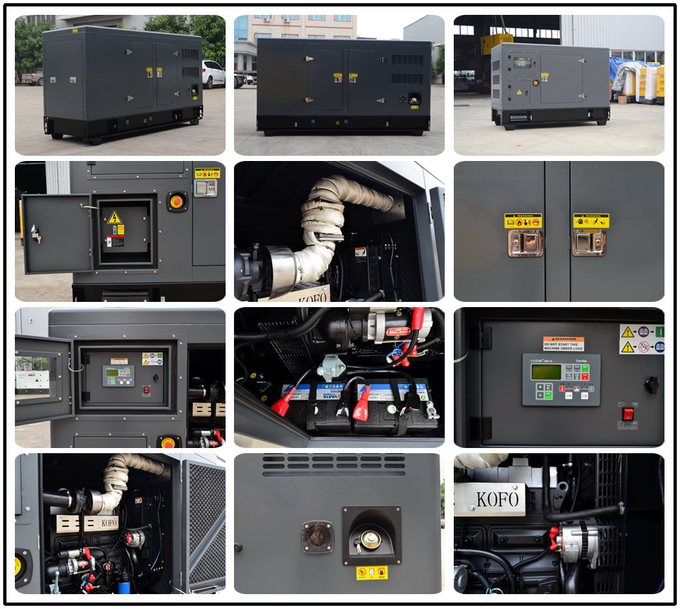

Silent Diesel Generator:

1. More than 2mm thick steel to make the canopy
2. High quality paint materials and strict powder paint
3. Impedance combined type silencer
4.Stainless steel door locks and hinges and 180° revolvable and disassemble door
5.High quality soundproof and insulation materials
6.Transparent viewing window
7. Lifting earis mounted in the base frame
8.Standard 20', 40' and 40HQ container canopy for option

Ai Power Company

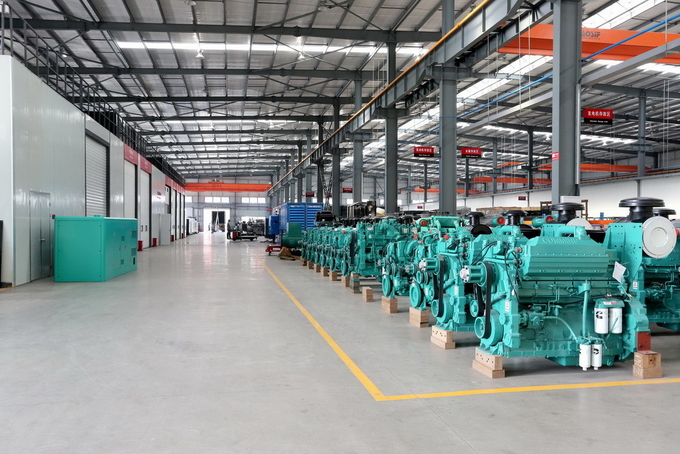

Company Profile

Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province.
Ai Power products adopts internationally and domestically reputed high-quality engines and alternators for our industrial diesel generator sets, gas diesel genset, marine generator, movable generator, lighting towers, generator spare parts and other high value-added electrical products, like ATS, synchronization system, transformer, switchgear, etc.

diesel generator manufacturer

FAQ

1.What's our power capacity range of generator?
Answer: We can offer the range from 10kva~3000kva genset, diesel generator, gas generator, marine generator.

2. Besides power generator, what's your other product?

Answer: We also provide lighting tower, air compressor, ATS, synchronization system, switchgear, transformer, engine spareparts.

3. What's kind of generator type you produce?

Answer: open generators, silent power generators, super silent genset, trailer genset, movable electric generator, reefer generator.
4.What's your warranty?
Answer: One year or 1000 hours, which one comes first.
5.Can you use our logo?
Answer: Yes, we can use customer's logo instead of ours.
6. Can you accept small order?
Answer: Yes, we can accept trial order.
7. What's your delivery time?
Answer: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
