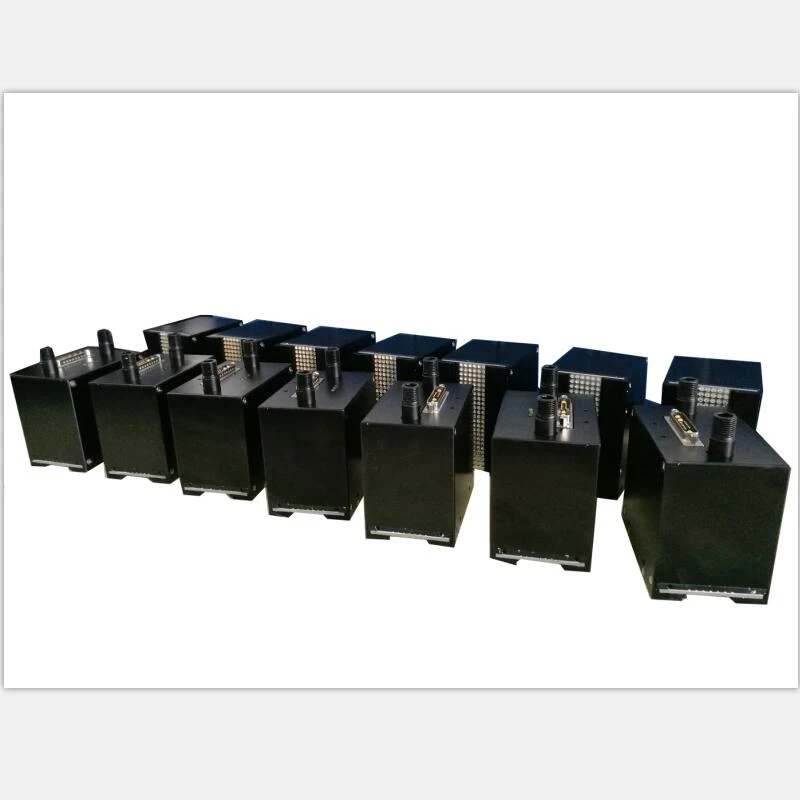

104*25mm Water Cooling UV LED Curing System

The WnnexCureTM EB168 UV Light Emitting Diode provides highest output power in an extremely medium mechanical package for high speed pinning and full cure applications. The EB168 UV LED Light Source is CE, RoHS, and REACH compliant.



The WnnexCureTM EB168  UV Curing Light Source provides highest output power in an extremely medium mechanical package for high speed pinning and full cure applications. The EB168 High Intensity UV Adhesive Curing Systems is CE, RoHS, and REACH compliant.


Performance of 104*25mm Customized LED UV Curing Light Source for UV Ink :

       wavelenth

365nm

  385nm  395nm  405nm

Peak Irradiance (Flat Glass)

     8w/cm2

  8w/cm2  ~  16w/cm2

Emitting Window

 104mmx25mm

       104 x25mm

 48VDC Power In (Typical)

    500w/10A

       500w/10A

48VDC Power In (Maximum)

    500w/10A

       1000w/20A

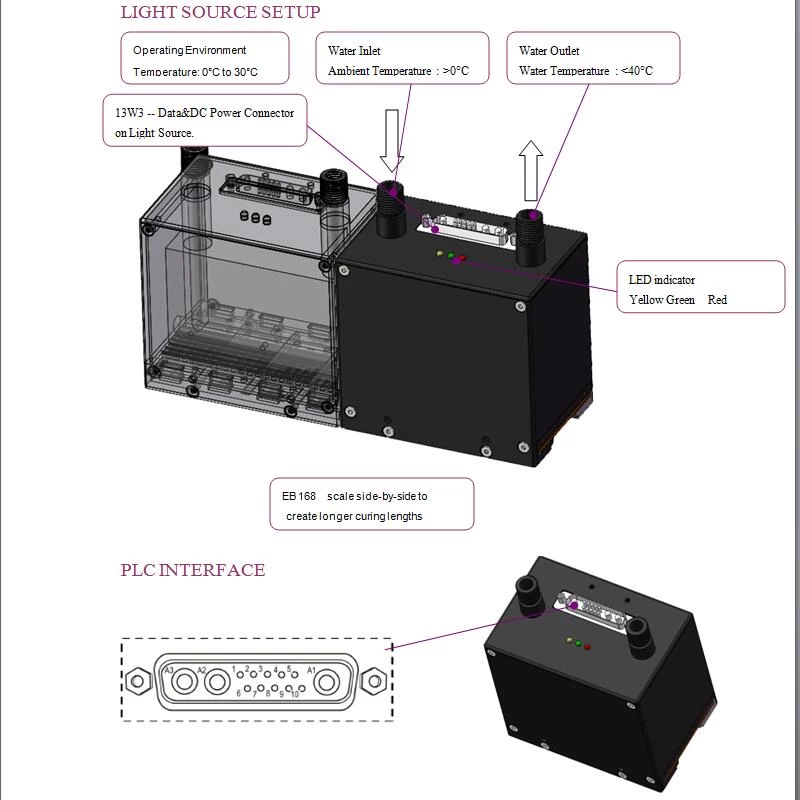

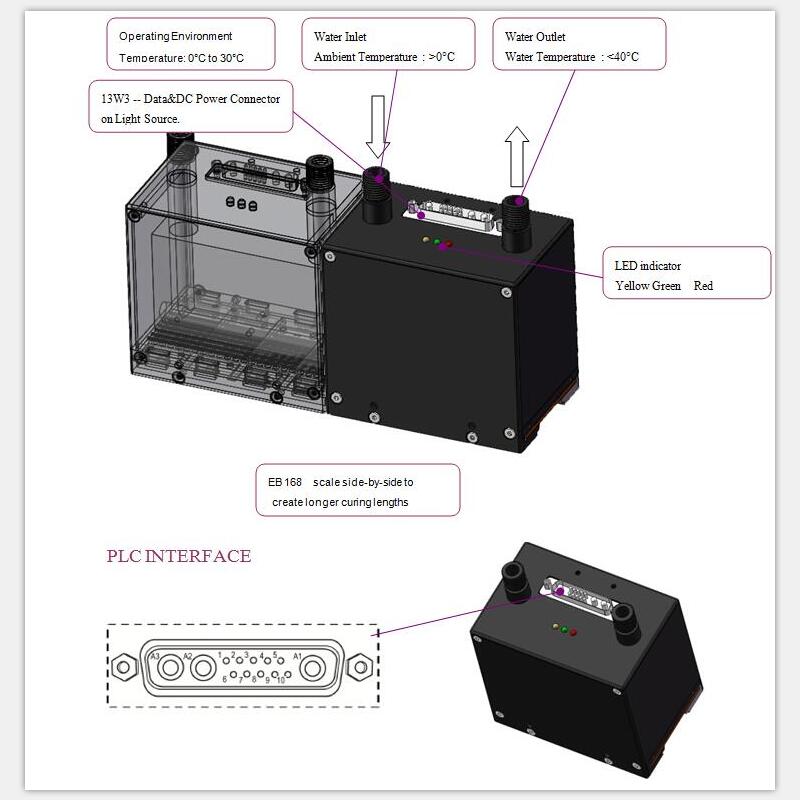

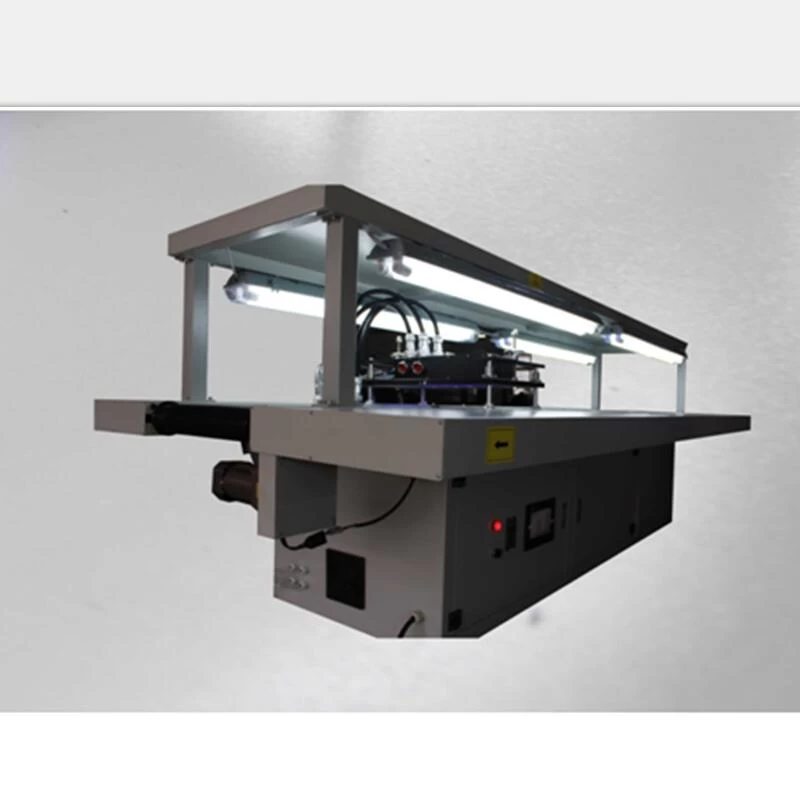

Light Source Set Up of Powerful Large Area UV LED Curing Equipment :

Water Cooling UV LED Curing System 104*25mm


DB13W3 Connector Pins of Professional UV LED Curing Technology :

 Pin

Fuction

Input/Output

Range(min/max)

Comments

4

5

Intensity

Control

Input



0~10V

Input voltage is converted to required current to achieve

desired intensity where 5V = 100% and 1.0V = 20%. A

minimum voltage of 1.0V is required for proper LightSource operation.

 Note: Aslo can be set to 0~5V by TP

  3

8

Enable

 signal

  Input

Dry Switch

.  ON= LED UVLampON

  OFF= LED UV Lamp OFF

2

  7

 Intensity

 Enable

Input

Dry Switch

  ON  =  Intensity Control valid

  OFF =   Intensity Control invalid

  1

  6

Alarm

 Output

Output

Dry Switch

   ON  =  Error

   OFF =   No Error

  Error including three types:

 1 Over temperature

 2 LED string open

 3 LED short Debugging

 9

10

Communication

lines

Input/Output

Modbus



A1

+48VDC Power

Input

Input

+47V to +49V

+48VDC Power Input to power Light Source

A2

Ground

---

    0.0V

  +48VDC Return, Ground

A3

PE



    0.0V

   Protective Earth, Ground

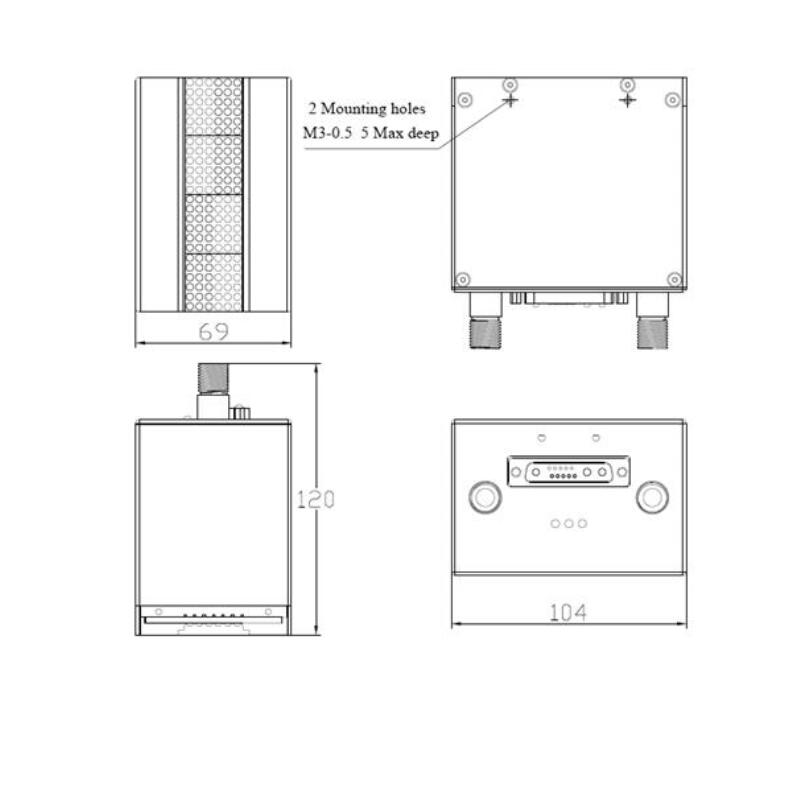

Dimension of LED UV Curing Lamps for Silk Screen Printing Machine (Units of measurement: mm)

   Dimensions

 104 x 25

L

       104

           H

       120

           W

        69

UV Emitting

 Area

       104 x 25

   Weight(kg)

       2.3


UV LED Curing System Emitting Window
