▶Intelligent Automated Operation, Truly Freeing Your Hands
Features:Equipped with a high-precision laser dust sensor, it can monitor real-time changes in the concentration of fine particulate matter such as PM2.5 and PM1.0 in the air.

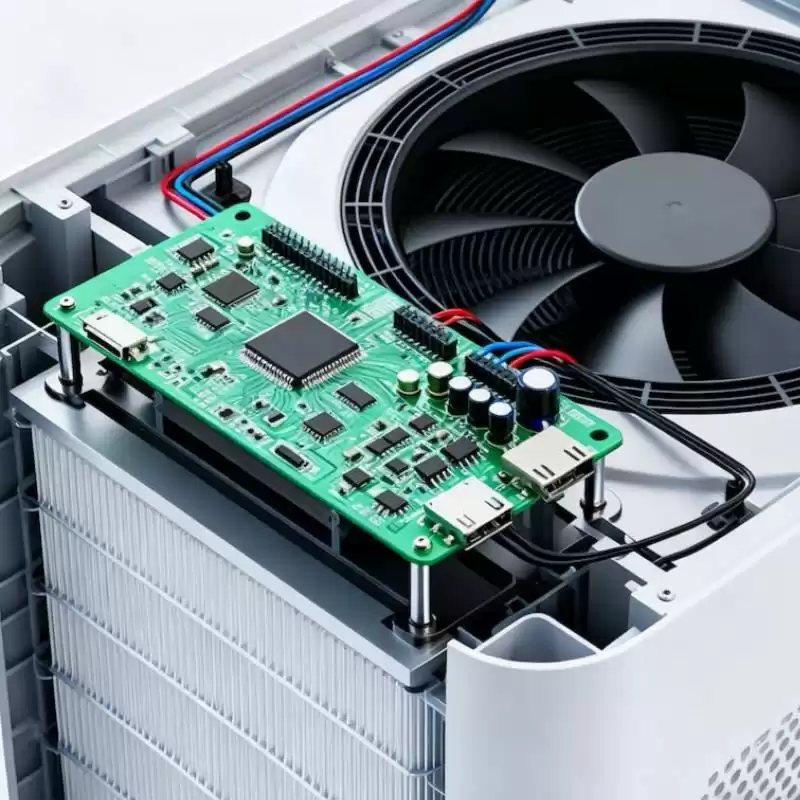

Customer Value:The PCB Control Board for Air Purifier automatically adjusts the fan to the optimal operating speed based on real-time air quality data. It automatically accelerates purification when pollution intensifies and quietly reduces speed when air quality meets standards, achieving fully unattended operation. It provides clean air while achieving extreme energy savings and quiet operation.
▶Ultimate Quiet Sleep Experience
Features:The Silent Air Purifier Control Board features a sleep mode designed specifically for nighttime use. In this mode, the system instructs the DC brushless motor to run at the lowest speed and turns off all panel indicator lights and alerts.
Customer Value:Creates an absolutely quiet sleep environment, ensuring a peaceful night's sleep without noise disturbance, while maintaining gentle background purification.
▶Comprehensive User Safety and Equipment Protection Mechanisms
Features:Built-in multiple hardware protection circuits, including motor overcurrent/overvoltage/short circuit protection, power surge protection, and filter compartment door open/close detection.
Customer Value:Effectively prevents equipment damage caused by circuit malfunctions, significantly extending the purifier's lifespan. The child lock function further prevents accidental activation by family members, ensuring that device settings are not altered, providing greater peace of mind.
▶Intuitive Human-Machine Interaction and Thoughtful Reminders
Features:Supports a variety of display interfaces (LED/LCD/OLED), clearly displaying real-time air quality index, temperature and humidity, filter lifespan percentage, and operating status.
Customer Value:Makes air quality visible, enhancing user trust. The intelligent filter replacement reminder function accurately calculates filter consumption and provides timely alerts, ensuring peak purification performance and preventing secondary pollution.
▶Seamless Integration into the Smart Home Ecosystem
Features:Features a reserved standardized Wi-Fi/Bluetooth module interface for easy connection to a mobile app, enabling remote control, timed on/off switching, and over-the-air (OTA) firmware upgrades.
Customer Value:Allows you to manage your home's air quality from anywhere. Compatible with mainstream voice assistants (such as Google Assistant and Amazon Alexa), allowing for simple voice commands and the convenience of whole-house smart home integration.
▶High-Efficiency and Energy-Saving DC Brushless Motor Drive
Features:Utilizes advanced BLDC motor drive technology, supporting stepless speed control or multi-level precise control. The motor's operating efficiency far exceeds that of traditional AC motors.
Customer Value:Provides the same airflow while significantly reducing energy consumption, operating more quietly, and extending motor lifespan, achieving a perfect balance between performance and energy saving.
▶Rugged and Durable Industrial-Grade Design
Features:Optimized PCB layout and industrial-grade components ensure long-term stable operation in complex environments.
Customer Value: It endorses the reliability and durability of your products, reduces after-sales maintenance costs, and establishes a high-quality market image for your brand.
Main Application Areas
▶Home Smart Air Purifiers
▶Commercial & Office Air Purification Systems
▶Integrated Fresh Air Systems (HVAC)
▶Vehicle-mounted Air Purification Devices
▶Other Smart Environmental Appliances
Technical Specifications
| Input Voltage |
DC 24V / 2.5A |
| Standby Power |
< 0.8W |
| Compatible Fan |
Brushless DC Motor (BLDC) |
| Sensor Interface |
Laser Dust (PM2.5), TVOC, Temp & Humidity |
| Communication Module |
Wi-Fi (2.4GHz) / Bluetooth 4.2 |
| Display Support |
LED Digital Tube / LCD / OLED (I2C) |
| PCB Dimensions |
110mm x 75mm |
| Operating Temperature |
-10°C to 60°C |
