Overview
Brand Name: Alcatel- Lucent
Product Number: 1AB196370006

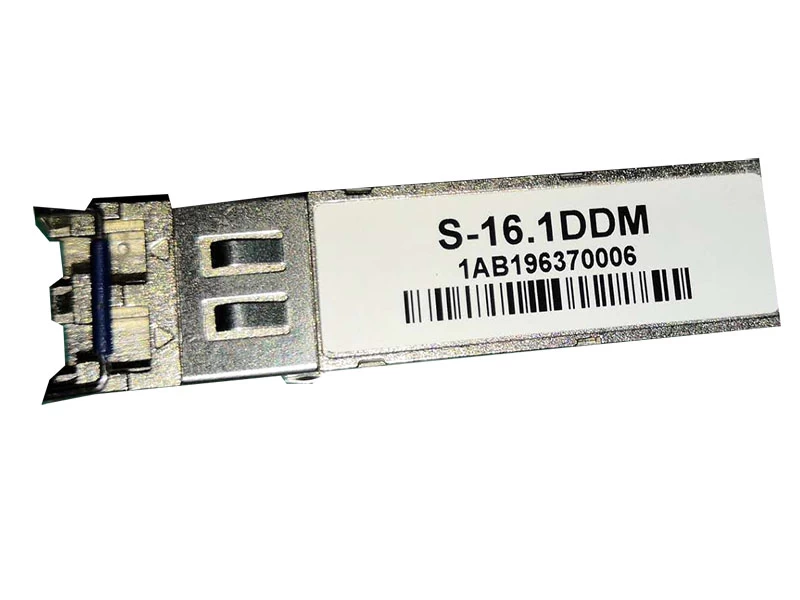

Discription: Alcatel 1AB196370006 is SFP Double Fiber Transceiver supporting 100-2.67Gbps data rate in 15 km distance over Single-Mode Fiber (SMF).
Specification
|
Media Type:
|
Single-Mode Fiber (SMF)
|
|
TX Wavelength:
|
1310 nm.
|
|
RX Wavelenght:
|
1310 nm.
|
|
Minimum Optical Budget:
|
13 dB
|
|
Maximum Distance:
|
15km
|
|
Supported Data Rate:
|
100-2.67Gbps
|
|
Supported Applications:
|
Gigabit Ethernet (1.25 Gbps), 100M Ethernet (100Mbps), 2G Fiber Channel (2.125 Gbps), 1G Fiber Channel (1.0625 Gbps), STM-1 (155Mbps), STM-4 (622Mbps), STM-16 (2.488 Gbps), ODU0 (1.244Gbps), ODU1 (2.498Gbps), OTU1 (2.66Gbps), CPRI option 2 (1228.8 Mbps), CPRI option 3 (2.458 Gbps)
|
|
DDM/DOM:
|
Support
|
|
Temperature Range:
|
Standard 0°-70°C
|
|
Connectors:
|
Double LC
|
|
Tx Wavelength Bandwidth:
|
100 nm (1260-1360 nm)
|
|
Rx Wavelength Bandwidth:
|
100 nm (1260-1360 nm)
|
|
Minimum Transmitting Power:
|
-5 dB
|
|
Maximum Transmitting Power:
|
0 dB
|
|
Receiver Sensitivity:
|
-18 dBm
|
|
Receiver Overload:
|
-3 dBm
|
|
Dispersion:
|
80-120 ps/nm
|
|
Transmitter Type:
|
DFB Laser
|
|
Receiver Type:
|
PIN photodiode
|
|
Power:
|
+3.3V single power supply
|
|
Chipset:
|
MAXIM, MINDSPEED, SEMTECH
|
|
Compliance:
|
CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA
|
|
Transceiver Type:
|
SFP
|
