Alcohol and Wine Refractometer ATC, Alcohol Meter for Brix and AbV

The RHW-25bA handheld alcohol and wine refractometer measures the sugar concentration and alcohol percentage in liquids, with a measurement range of 0-25% Brix and 0-25% Alcohol.



  • This model can be used in the wine-making process for grape maturity and wine quality control.
  • The main body of the instrument is made of copper materials to maximize measurement accuracy and durability.
  • This model has Automatic Temperature Compensation (ATC). Models without ATC are also available for a lower price.



Measurement Specifications

Scale(s) Ranges Resolution Accuracy
Alcohol
0 to 25%
0.2%
±0.2%
Brix
0 to 40%
0.2%
±0.2%



Facebook Twitter Pinterest LinkedIn 分享
Product Description
The RHW-25bA Alcohol Refractometer is used to detect the sugar content of grape must during the wine-making process, so as to infer the alcohol content of the wine. The wine refractometer can detect the sugar content of the original grape juice and the alcohol content of the wine brewed from the original grape juice. It also helps to control the maturity period of the grapes. It is the first choice for scientific research, food industry production, and the purchase and operation of alcoholic beverages.


Product Features

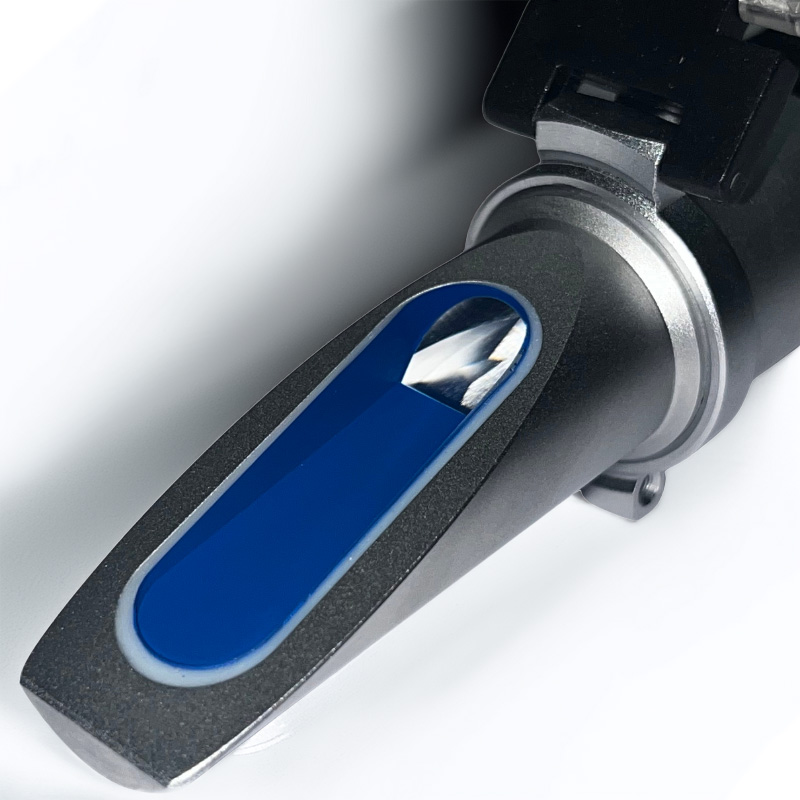

Refractometer Prism

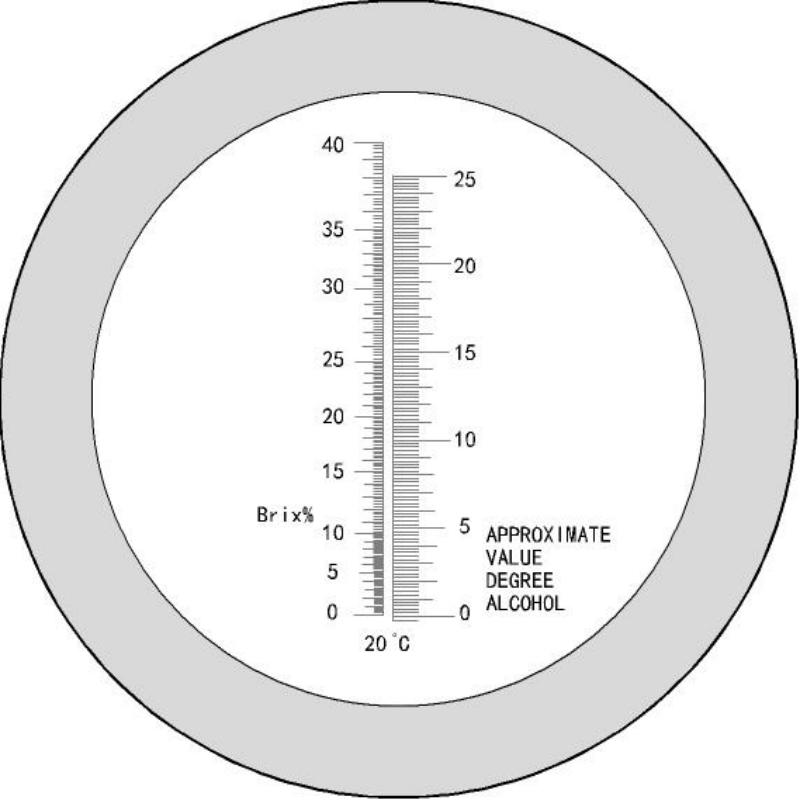

Dual Scale: Brix & Alcohol

Enables simultaneous measurement of sugar content and estimated alcohol percentage—ideal for wine and fermentation monitoring.



Temperature Compensation (ATC)

Ensures consistent and reliable readings without manual correction due to temperature changes.



Copper Body

Offers superior durability and thermal stability for accurate, long-term performance in winemaking environments.



Crown Glass Prism

Provides clear, high-resolution optical readings for precise measurement in grape juice and wine.



Typical Applications

- Winemaking and Fermentation Monitoring

Measure grape juice sugar content (Brix) and estimate potential alcohol levels during fermentation stages.

- Grape Maturity Assessment

Determine optimal harvest timing by evaluating sugar levels in fresh grapes in the field or vineyard.

- Blending and Adjustment

Assist in adjusting sugar or alcohol levels during blending or dilution in small-batch wine production.







Product Parameters
Model RHW-25bA
Net Weight 0.23kg
Length 160mm
Diameter 29mm
Temperature Range

10℃ to 30℃ with ATC

20℃ without ATC

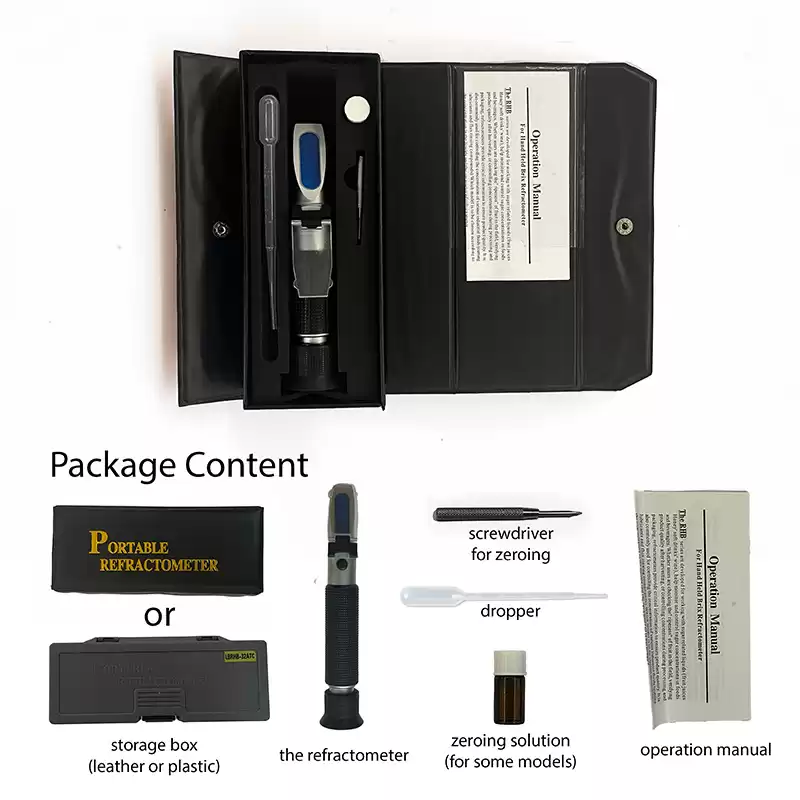

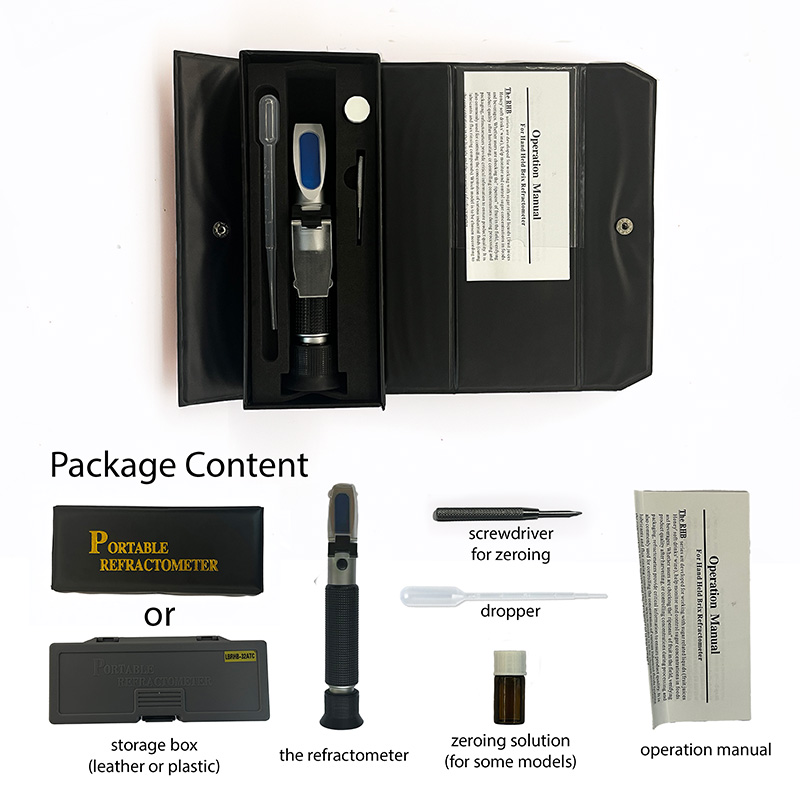

Packaging

We have three packaging options: leather, plastic, or cardboard. The cost per unit vary with different packaging.

If you have a preferred packaging option or require customized packaging with your own text or logo, please feel free to send us an inquiry.

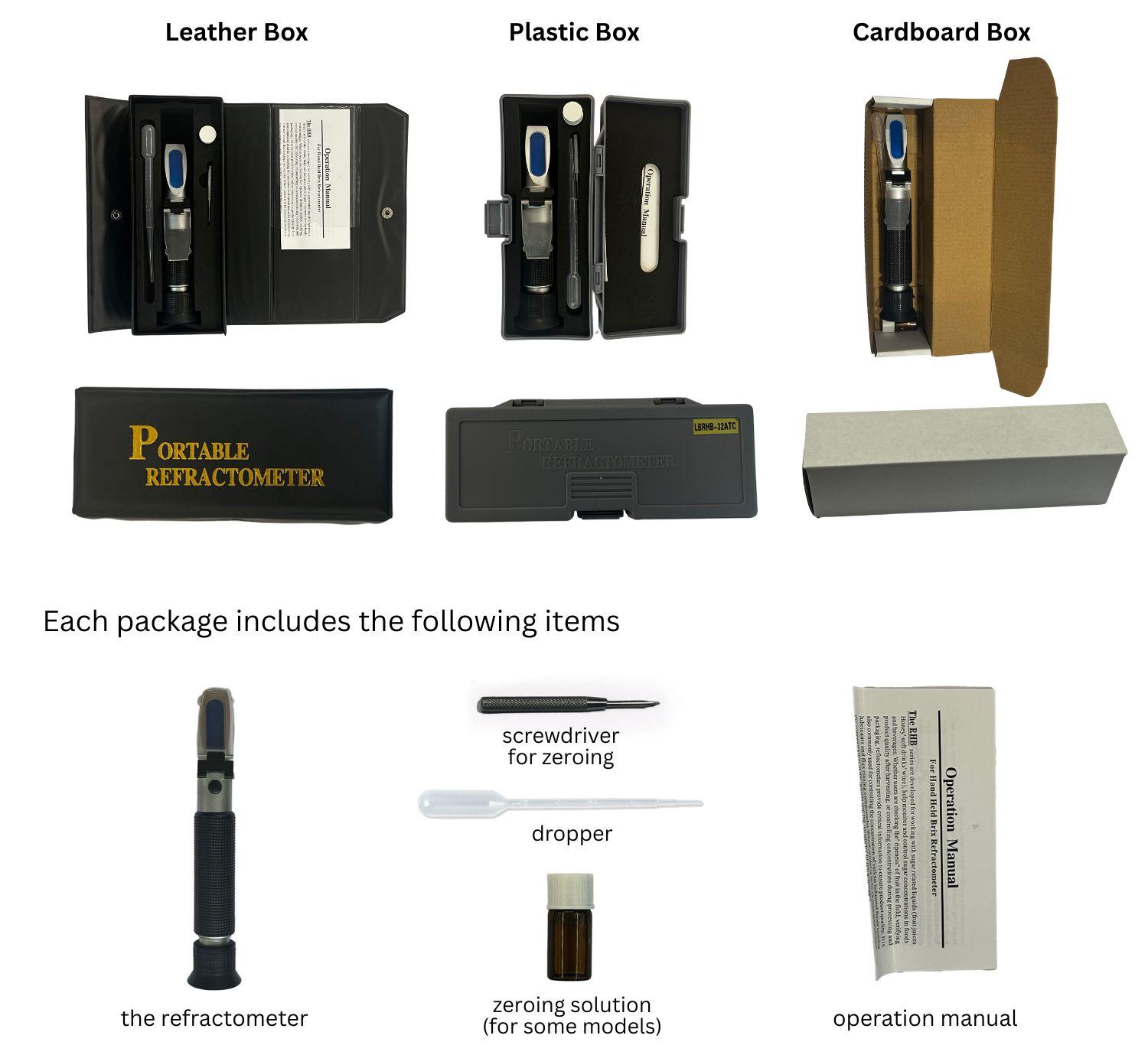

Handheld Refractometer Packaging Options and Content







Instruction of Use

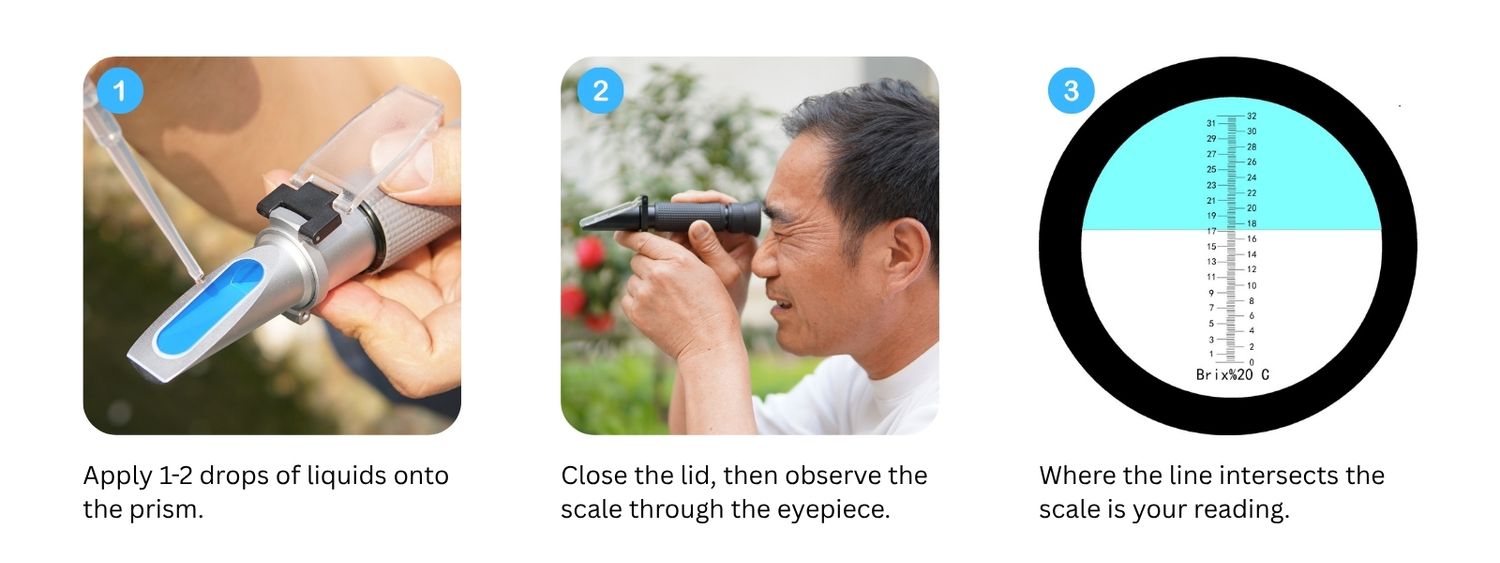

Handheld Refractometer Instruction of Use

After-Sale Services

At Lindian Technology, we take pride in providing only premium-quality refractometers. If any of our products is found to be defective upon arrival, we will replace the defective unit free of charge.

In addition, we offer a free replacement warranty for a period of three years, along with free lifetime maintenance and calibration services.
