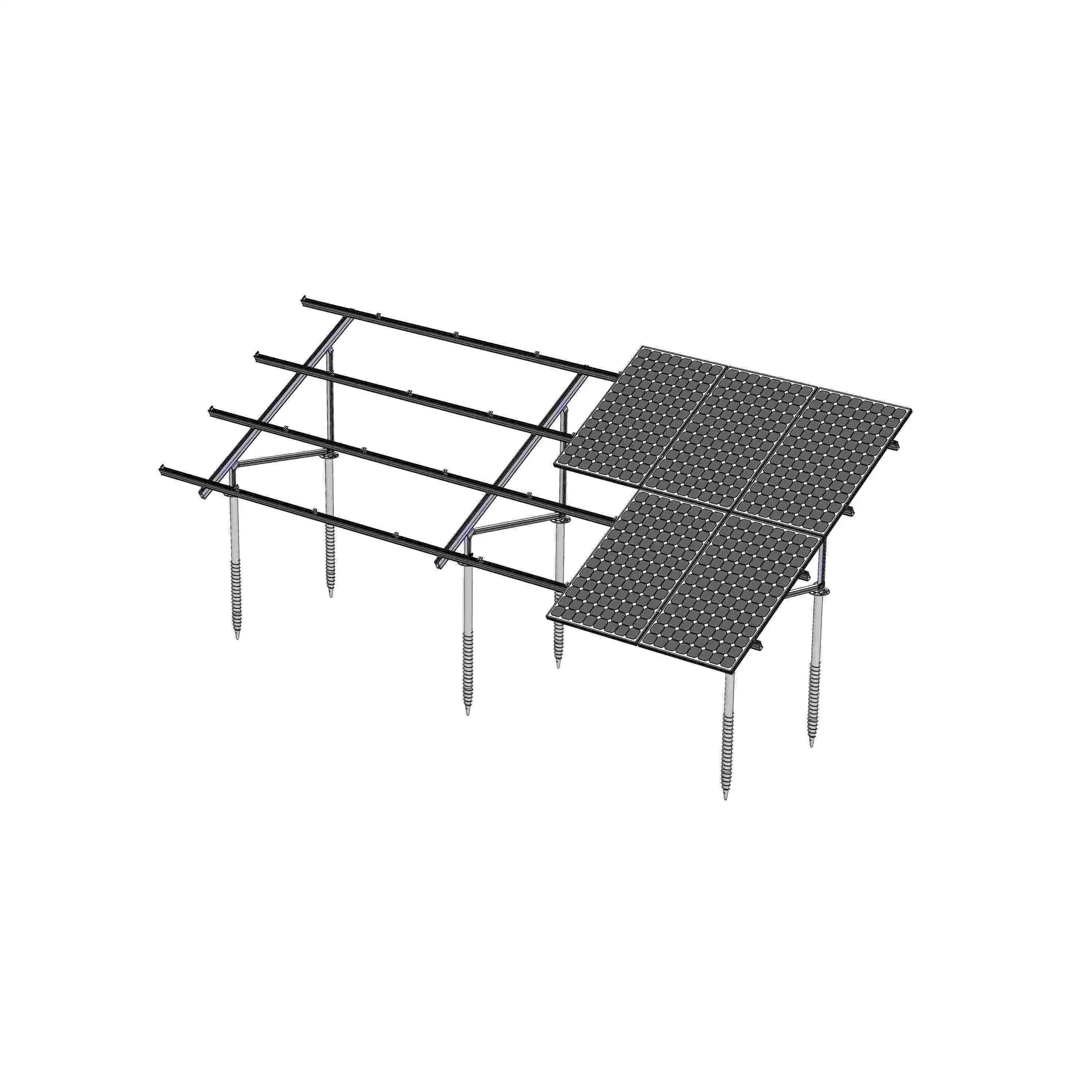

All-aluminum standard ground solar mounting system

Powerack all-aluminium standard ground mounting system applicable to installation systems in medium or large ground power station.Each component of the system is pre-assembled.And it features an innovative modular design, allowing for easy installation and reconfiguration of the mounting structure.





The system features an all-aluminum construction that provides superior strength and durability compared to traditional steel systems.And the entire system durable, light-weight, recyclable and highly strong.We can provide an economic and effective solution tailored to the wind and snow load of the project.

Technical features:

Product name Standard ground mounting system
Application Flat concrete roof, open terrain
Inclination
Customized
Material AL6005-T5, SUS304, Q235
Finish AL 6005-T5 Anodized, Q235 Hot-dip galvanizing
Module orientation Landscape or Portrait

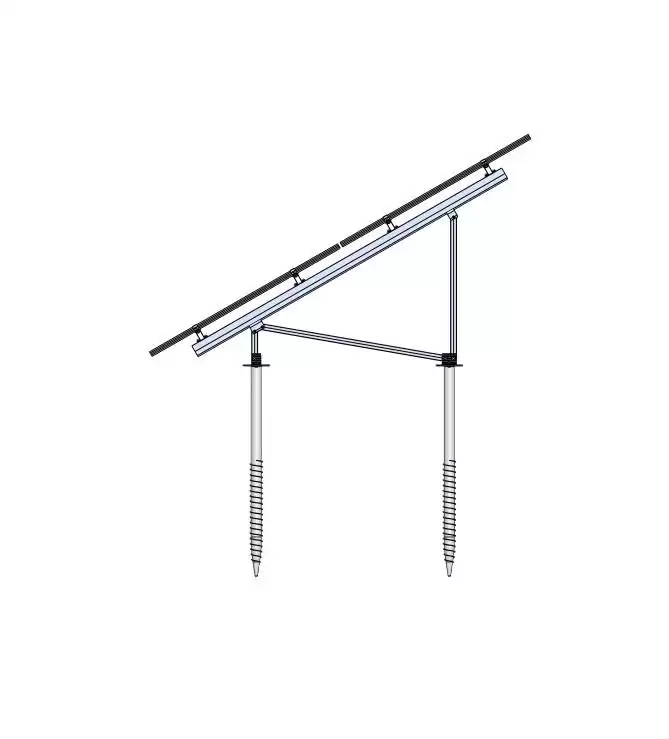

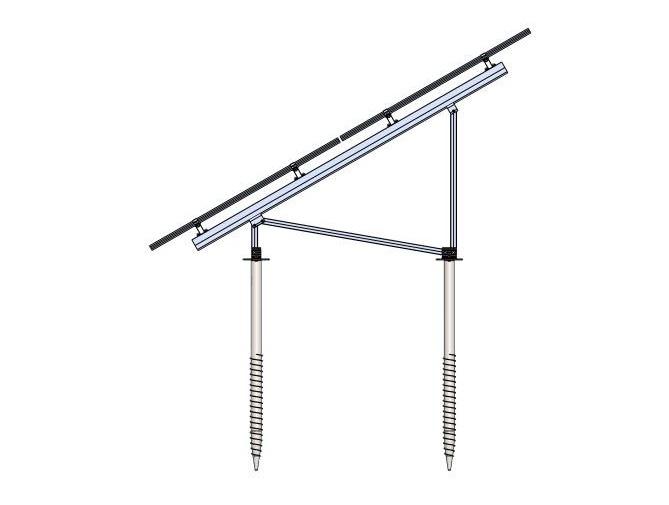

Depending on the different design conditions, pre-assembly support is generally designed into the following two shapes:

All-aluminum standard ground solar mounting system

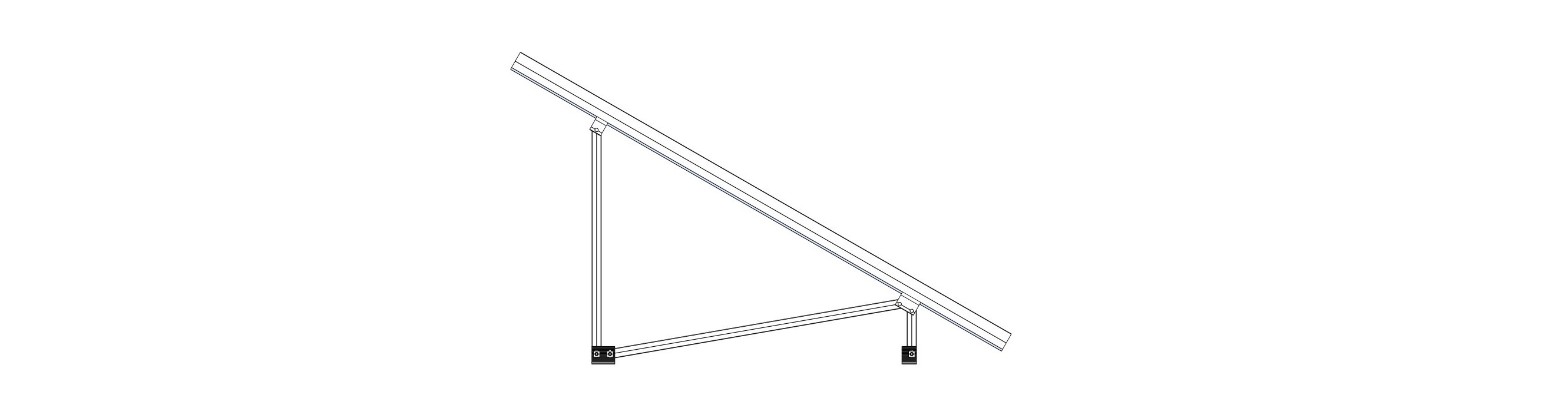

The N-Type pre-assembly support is mainly used for the small wind & snow load condition projects. (2-4 columns)

ground solar mounting system

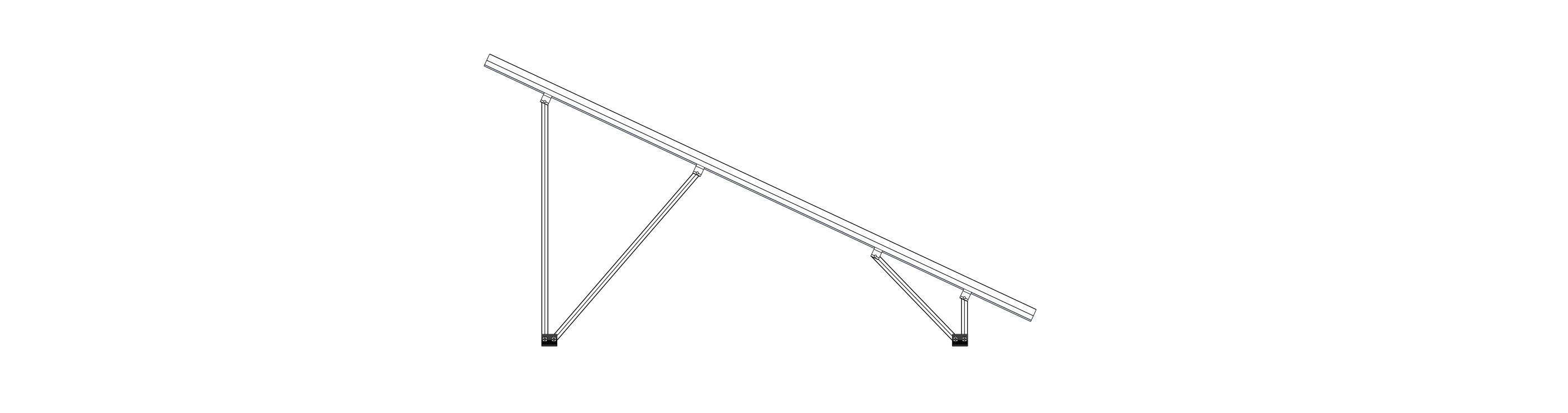

The W-type pre-assembly support is mainly for the 4-5 columns wind & snow load condition projects. We will add cross support to make the structure stronger if the ground height is higher or wind & snow load is larger.

ground solar mounting system

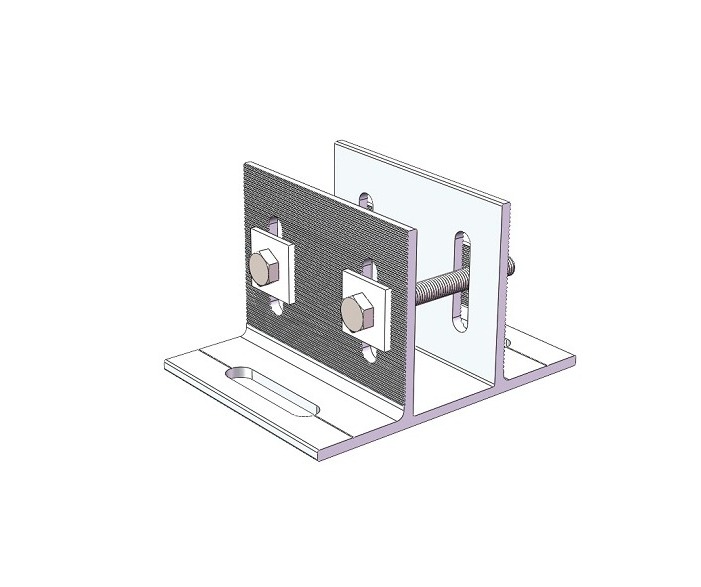

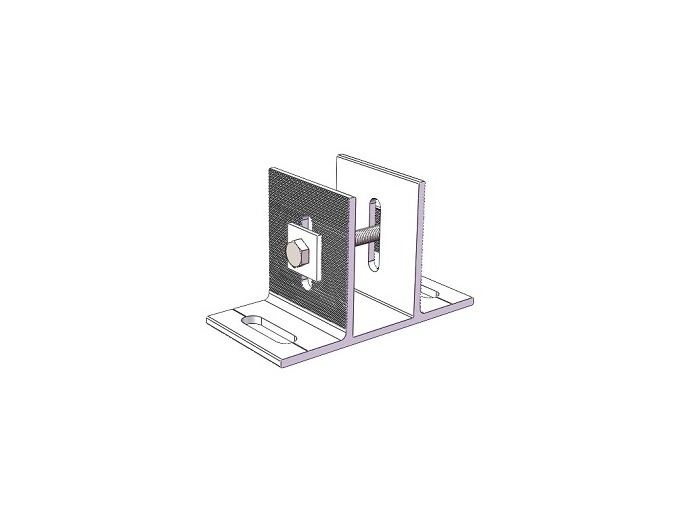

Ground mounting 60mm H support (POW-CH2-01)

Solar ground mounting 70mm base

Ground mounting 70mm base (POW-GB2-01)

  Ground mounting 110mm base (POW-GB2-02)

Ground mounting 110mm base (POW-GB2-02)

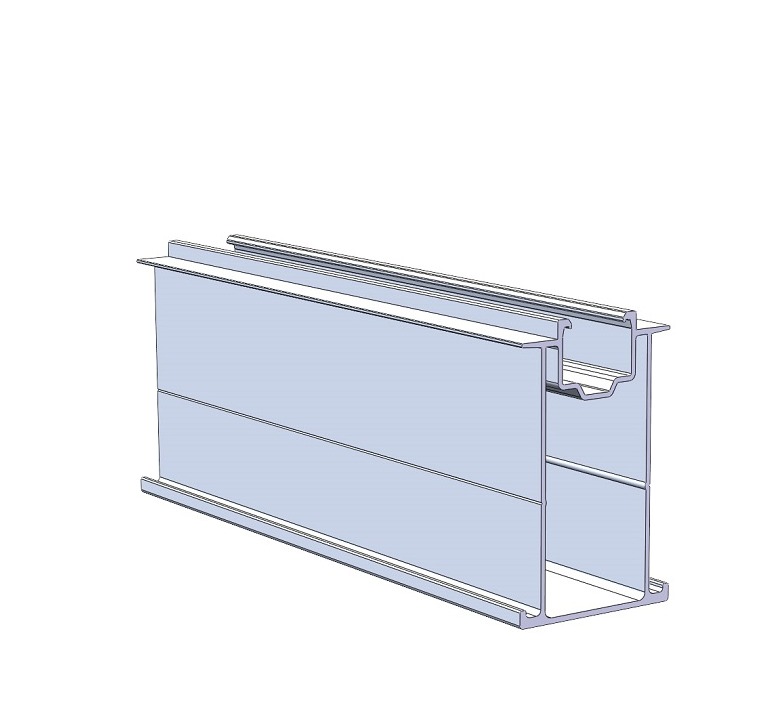

 Ground mounting 80mm rail (POW-R80)

Ground mounting 80mm rail (POW-R80)

Rail clamp (POW-GRC)

Rail clamp (POW-GRC)

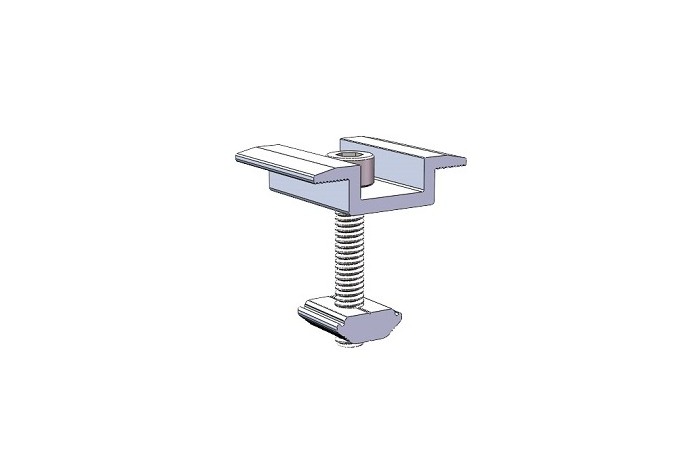

Solar mid clamp (POW-GIC)

Mid clamp (POW-GIC)

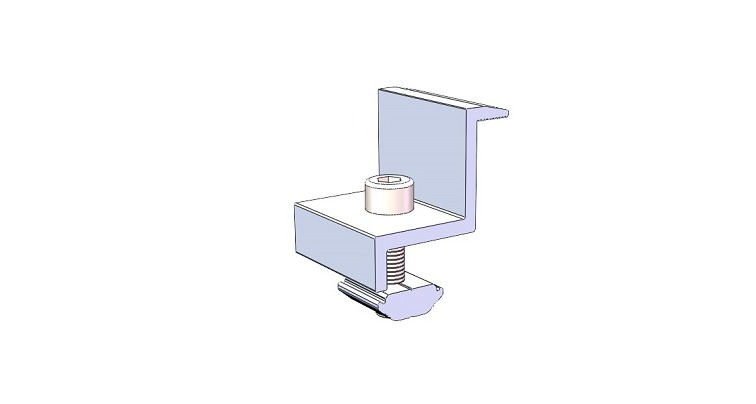

End clamp (POW-GEC)

End clamp (POW-GEC)
