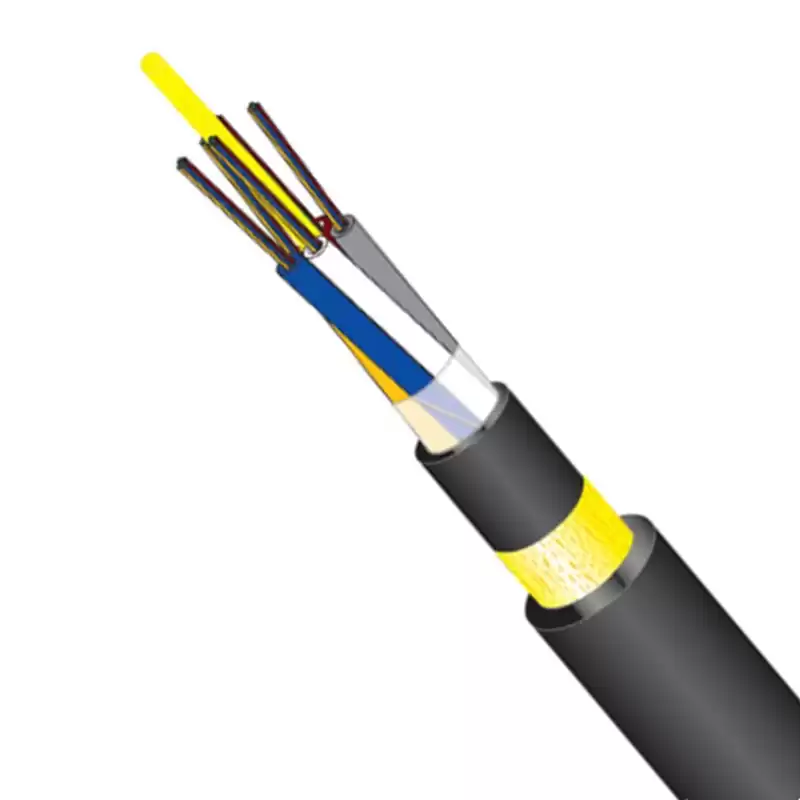

All-dielectric Self-supporting ADSS cable up to 144C
The

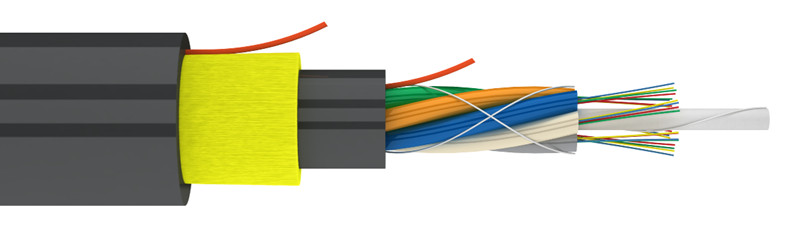

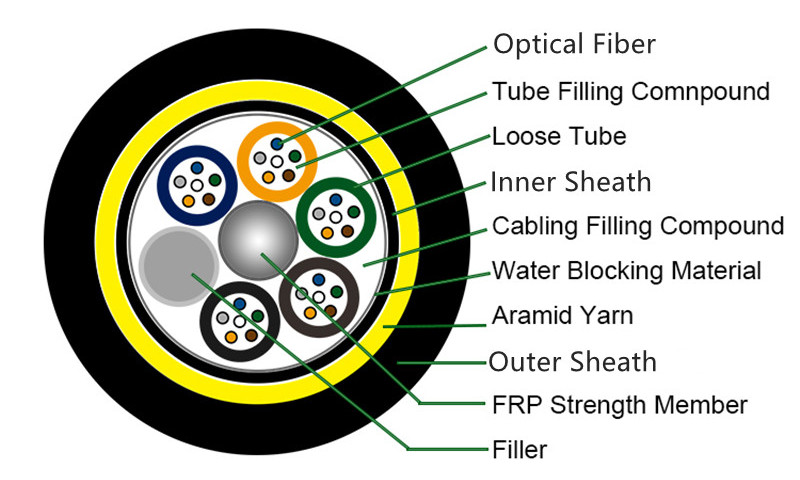

structure of ADSS cable can be divided into two categories—central tube
structure and stranded structure. In a central tube design, the fibers are
placed in a PBT loose tube filled with water-blocking material within a certain
length. Then they are wrapped with aramid yarn according to the desired tensile
strength and extruded with PE (≤110KV electric field strength) or AT (≥100KV
electric field strength) sheath. This structure features with small diameter
and light weight but has limited lengths.SZOPT’s ADSS cables are widely
used in many countries,please contact us for further information.
Application:
Indoor FTTH;
For patch cords and pigtails;
For communication equipment.
Feature:
Good mechanical and environmental characteristics;
Flame retardant characteristics;
Cable jacket options:PVC,LSZH
Strength Member options:Steel,FRP,KFRP.
Package:

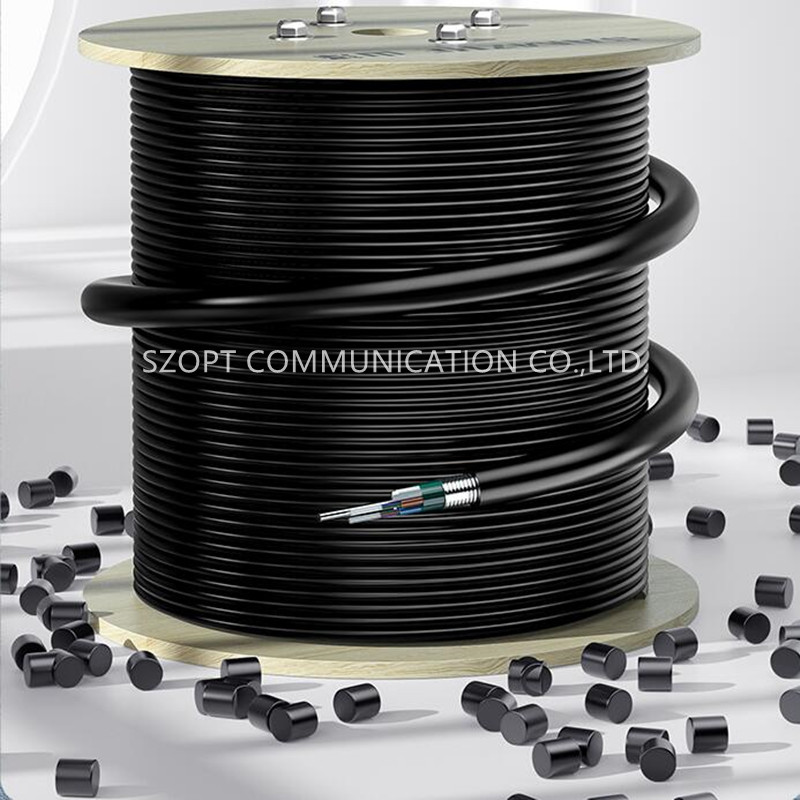

1km/2km/3km per roll or custom,then put into a carton box.
Mechanical
Characteristics:
|
Tensile Strength
|
Long Term
|
600N
|
|
Short Term
|
1500N
|
|
Crush Resistance
|
Long Term
|
300N/100mm
|
|
Short Term
|
1000N/100mm
|
|
Bending Radius
|
Dynamic
|
20D
|
|
Static
|
10D
|
Optical Characteristics:
|
|
|
G652D
|
G657A1
|
G657A2
|
G657B3
|
G.655
|
62.5/125
|
50/125
|
|
Attenuation
(+20℃)
|
@850nm
|
|
|
|
|
|
≤3.5dB/km
|
|
@1300nm
|
|
|
|
|
|
≤1.5dB/km
|
|
@1310nm
|
≤0.45dB/km
|
≤0.40dB/km
|
≤0.45dB/km
|
≤0.50dB/km
|
|
|
|
@1550nm
|
≤0.30dB/km
|
≤0.50dB/km
|
|
|
|
Bandwidth
（Class A）
|
@850
|
|
|
|
|
|
≥200MHZ·km
|
≥500MHZ·km
|
|
@1300
|
|
|
|
|
|
≥500MHZ·km
|
≥500MHZ·km
|
|
Numerical Aperture
|
|
|
|
|
|
|
0.275±0.015NA
|
0.200±0.015NA
|
|
Cut-off Wavelength
|
|
≤1260nm
|
|
≤1480nm
|
|
|
