Unit No.
|
Shaft Dia
|

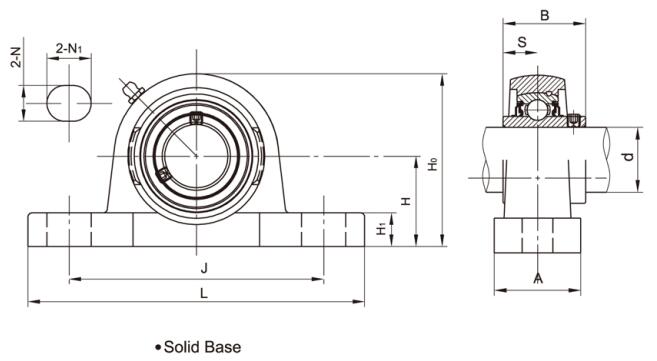

Dimensions(mm)
|
Bolt Size (mm)
|
Weight (kg)
|
|
Solid base
housing
|
d
|
H
|
L
|
J
|
A
|
N
|
N1
|
H1
|
Ho
|
B
|
S
|
|
(in)
|
(mm)
|
|
SSUCP204A
|
|
20
|
33.3
|
127
|
95
|
30
|
13
|
19
|
14
|
64
|
31
|
12.7
|
M10
|
0.71
|
|
SSUCP204-12A
|
3/4
|
|
33.3
|
127
|
95
|
30
|
13
|
19
|
14
|
64
|
31
|
12.7
|
M10
|
0.71
|
|
SSUCP205A
|
|
25
|
36.5
|
140
|
105
|
30
|
13
|
19
|
15
|
70
|
34.1
|
14.3
|
M10
|
0.82
|
|
SSUCP205-14A
|
7/8
|
|
36.5
|
140
|
105
|
30
|
13
|
19
|
15
|
70
|
34.1
|
14.3
|
M10
|
0.82
|
|
SSUCP205-15A
|
15/16
|
|
36.5
|
140
|
105
|
30
|
13
|
19
|
15
|
70
|
34.1
|
14.3
|
M10
|
0.82
|
|
SSUCP205-16A
|
1
|
|
36.5
|
140
|
105
|
30
|
13
|
19
|
15
|
70
|
34.1
|
14.3
|
M10
|
0.82
|
|
SSUCP206A
|
|
30
|
42.9
|
165
|
121
|
36
|
17
|
21
|
16
|
82
|
38.1
|
15.9
|
M12
|
1.31
|
|
SSUCP206-17A
|
1-1/16
|
|
42.9
|
165
|
121
|
36
|
17
|
21
|
16
|
82
|
38.1
|
15.9
|
M12
|
1.31
|
|
SSUCP206-18A
|
1-1/8
|
|
42.9
|
165
|
121
|
36
|
17
|
21
|
16
|
82
|
38.1
|
15.9
|
M12
|
1.31
|
|
SSUCP206-19A
|
1-3/16
|
|
42.9
|
165
|
121
|
36
|
17
|
21
|
16
|
82
|
38.1
|
15.9
|
M12
|
1.31
|
|
SSUCP206-20A
|
1-1/4
|
|
42.9
|
165
|
121
|
36
|
17
|
21
|
16
|
82
|
38.1
|
15.9
|
M12
|
1.31
|
|
SSUCP207A
|
|
35
|
47.6
|
167
|
127
|
38
|
17
|
21
|
17
|
92
|
42.9
|
17.5
|
M12
|
1.65
|
|
SSUCP207-20A
|
1-1/4
|
|
47.6
|
167
|
127
|
38
|
17
|
21
|
17
|
92
|
42.9
|
17.5
|
M12
|
1.65
|
|
SSUCP207-21A
|
1-5/16
|
|
47.6
|
167
|
127
|
38
|
17
|
21
|
17
|
92
|
42.9
|
17.5
|
M12
|
1.65
|
|
SSUCP207-22A
|
1-3/8
|
|
47.6
|
167
|
127
|
38
|
17
|
21
|
17
|
92
|
42.9
|
17.5
|
M12
|
1.65
|
|
SSUCP207-23A
|
1-7/16
|
|
47.6
|
167
|
127
|
38
|
17
|
21
|
17
|
92
|
42.9
|
17.5
|
M12
|
1.65
|
|
SSUCP208A
|
|
40
|
49.2
|
184
|
137
|
40
|
17
|
21
|
18
|
98
|
49.2
|
19
|
M12
|
2.00
|
|
SSUCP208-24A
|
1-1/2
|
|
49.2
|
184
|
137
|
40
|
17
|
21
|
18
|
98
|
49.2
|
19
|
M12
|
2.00
|
|
SSUCP208-25A
|
1-9/16
|
|
49.2
|
184
|
137
|
40
|
17
|
21
|
18
|
98
|
49.2
|
19
|
M12
|
2.00
|
|
SSUCP209A
|
|
45
|
54
|
190
|
146
|
40
|
17
|
21
|
20
|
105
|
49.2
|
19
|
M12
|
2.26
|
|
SSUCP209-26A
|
1-5/8
|
|
54
|
190
|
146
|
40
|
17
|
21
|
20
|
105
|
49.2
|
19
|
M12
|
2.26
|
|
SSUCP209-27A
|
1-11/16
|
|
54
|
190
|
146
|
40
|
17
|
21
|
20
|
105
|
49.2
|
19
|
M12
|
2.26
|
|
SSUCP209-28A
|
1-3/4
|
|
54
|
190
|
146
|
40
|
17
|
21
|
20
|
105
|
49.2
|
19
|
M12
|
2.26
|
|
SSUCP210A
|
|
50
|
57.2
|
206
|
159
|
45
|
20
|
22
|
22
|
112
|
51.6
|
19
|
M16
|
2.80
|
|
SSUCP210-30A
|
1-7/8
|
|
57.2
|
206
|
159
|
45
|
20
|
22
|
22
|
112
|
51.6
|
19
|
M16
|
2.80
|
|
SSUCP210-31A
|
1-15/16
|
|
57.2
|
206
|
159
|
45
|
20
|
22
|
22
|
112
|
51.6
|
19
|
M16
|
2.80
|
|
SSUCP210-32A
|
2
|
|
57.2
|
206
|
159
|
45
|
20
|
22
|
22
|
112
|
51.6
|
19
|
M16
|
2.80
|
|
SSUCP211A
|
|
55
|
63.5
|
218
|
171
|
50
|
20
|
22
|
22
|
126
|
55.6
|
22.2
|
M16
|
3.83
|
|
SSUCP211-32A
|
2
|
|
63.5
|
218
|
171
|
50
|
20
|
22
|
22
|
126
|
55.6
|
22.2
|
M16
|
3.83
|
|
SSUCP211-34A
|
2-1/8
|
|
63.5
|
218
|
171
|
50
|
20
|
22
|
22
|
126
|
55.6
|
22.2
|
M16
|
3.83
|
|
SSUCP211-35A
|
2-3/16
|
|
63.5
|
218
|
171
|
50
|
20
|
22
|
22
|
126
|
55.6
|
22.2
|
M16
|
3.83
|
|
SSUCP212A
|
|
60
|
69.9
|
238
|
184
|
60
|
20
|
25
|
25
|
137
|
65.1
|
25.4
|
M16
|
5.33
|
|
SSUCP212-36 A
|
2-1/4
|
|
69.9
|
238
|
184
|
60
|
20
|
25
|
25
|
137
|
65.1
|
25.4
|
M16
|
5.33
|
|
SSUCP212-38
A
|
2-3/8
|
|
69.9
|
238
|
184
|
60
|
20
|
25
|
25
|
137
|
65.1
|
25.4
|
M16
|
5.33
|
|
SSUCP212-39A
|
2-7/16
|
|
69.9
|
238
|
184
|
60
|
20
|
25
|
25
|
137
|
65.1
|
25.4
|
M16
|
5.33
|
Notes:1.Grease fittings also available at 90° positions.
2.Upon request,available with plastic close cap(CC) or open cap(OC) at one end. Ordering example: SSUCP204-12A CC.
3.Hand polishing surface housing available upon request. Ordering example: SSUCP204-12A HP.
4.Lubricated with food grade grease.
