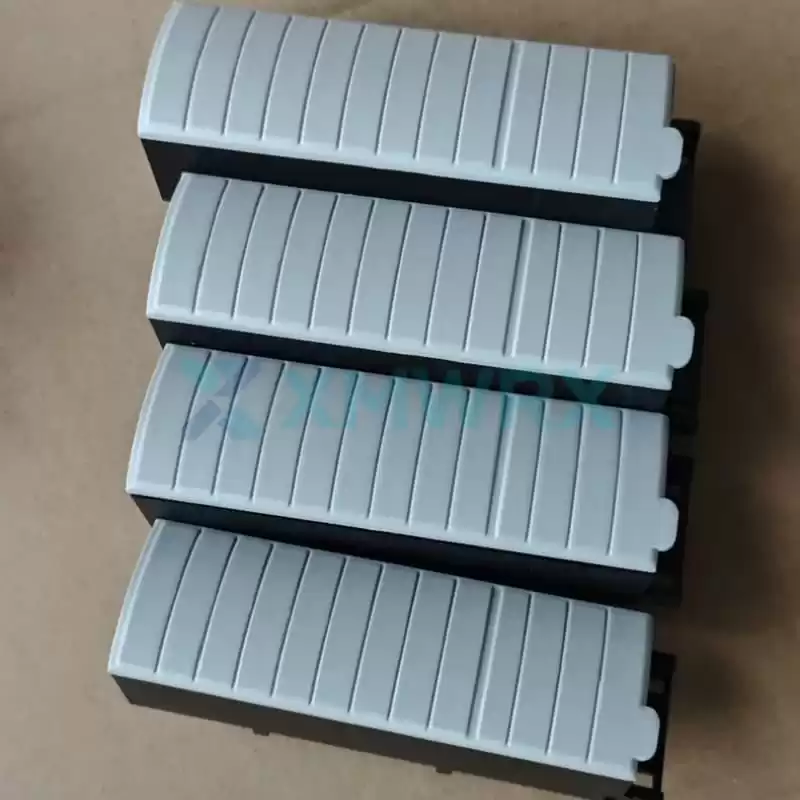

Q: What are the differences between 1756-TBCH and 1756-TBS6H? How to choose between them?
A: Both are 36-pin detachable terminal blocks. The main difference lies in the wiring method: 1756-TBCH uses a screw-type (cage clamp) connection, requiring a screwdriver to tighten the wires, suitable for applications requiring high vibration resistance or where screw wiring is preferred; 1756-TBS6H uses a spring-loaded connection, requiring only wire insertion, resulting in faster wiring and suitability for scenarios with frequent wiring changes. Both are essentially the same in terms of electrical specifications and compatibility.
Q: When using 1756-TBCH, can it be plugged and unplugged while the system is powered on?
A: Hot-swapping is supported, but environmental conditions must be considered. In non-hazardous locations, the terminal block can be plugged and unplugged directly while the system is powered on without disconnecting the power or stopping the controller, significantly reducing maintenance downtime. However, in hazardous locations (such as those containing explosive gases), hot-swapping may generate an electric arc, posing a hazard, and must be performed after power is disconnected or the environment is confirmed to be safe.
Q: Which I/O modules can the 1756-TBCH be used with?
A: It has wide compatibility and can be used with all 1756 series I/O modules that use a 36-pin interface, including digital input modules (such as 1756-IB32), digital output modules (such as 1756-OB32), analog modules, and high-speed counter modules (such as 1756-HSC). It is recommended to check the module's RTB compatibility specifications when purchasing.
