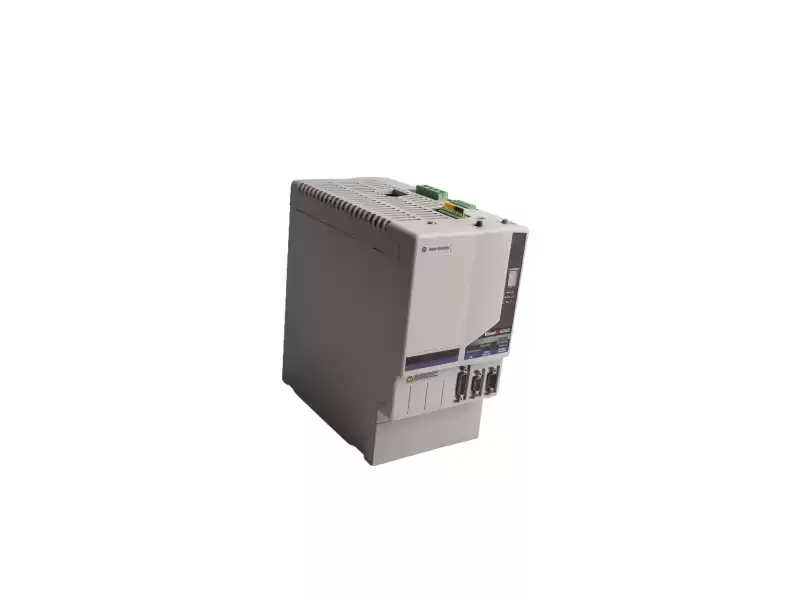

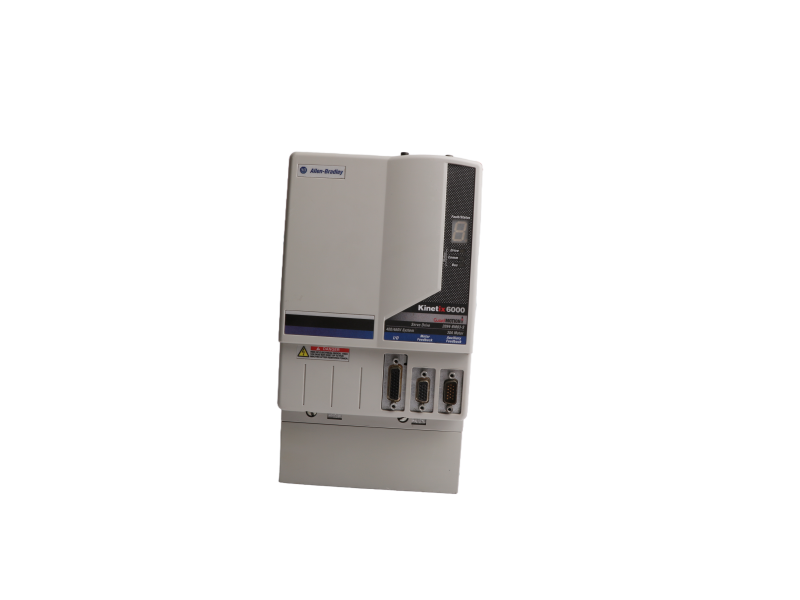

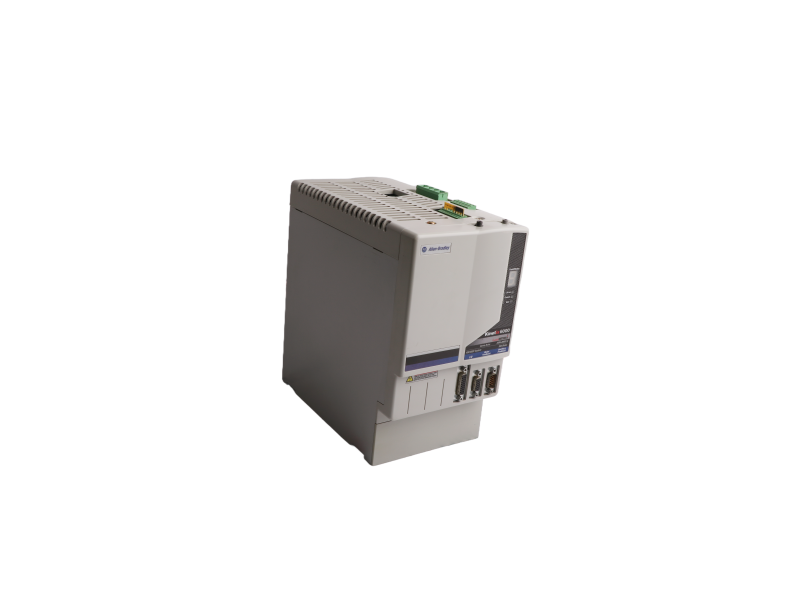

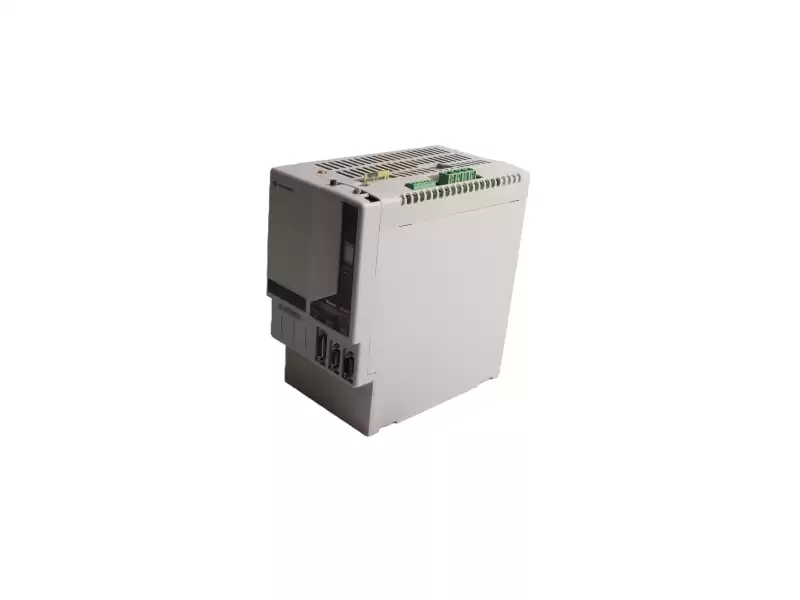

Allen-Bradley 2094-BM03-S Kinetix 6000 Axis Module
30 A book-slice for high-dynamic, multi-axis lines
May | ab@mooreplc.com | +86-18106909650 | WeChat: dcsfcs
① Core Positioning
The BM03-S is the highest-current-density 50 mm Axis Module in the Kinetix 6000 line.
Rated 15 A continuous / 30 A peak, it drives 7.5 kW-class servo motors without widening the cabinet—ideal for:
High-speed index tables (≤ 120 rpm change-over)
High-inertia conveyor rollers
Spindle orientation or tapping units
② Key Data at a Glance
DC-bus: 650-750 V (shared with IAM)
Continuous output: 15 A rms @ 45 °C
Peak output: 30 A (2 s, 200 %)
PWM frequency: 8 kHz std. (4 kHz high-torque option)
STO: SIL 3 / PLe, embedded in rail
Feedback: auto-detect Hiperface, incremental, resolver
③ Dynamic Advantages
Peak-Enhance firmware – 30 A for 2 s eliminates the need to oversize the power supply for rapid acceleration.
DC-bus energy recycling – braking power is instantly reused by adjacent axes, cutting external resistor sizing by 30-50 %.
Optimized thermal design – aluminum baseplate couples to the rail; no additional fan required up to 50 °C.
④ Compatible & Upgrade Paths (50 mm Family)
|
Type
|
Part Number
|
Cont. A
|
Peak A
|
Features
|
Upgrade Note
|
|
Low current
|
2094-BM01-S
|
4.5
|
9
|
≤ 2.2 kW
|
Drop-in replacement, no parameter change
|
|
Mid current
|
2094-BM02-S
|
10.3
|
15
|
2.2-5 kW
|
45 % current boost, same mechanical width
|
|
High current
|
2094-BM03-S
|
15
|
30
|
5-7.5 kW
|
Double peak, ideal for high inertia
|
|
Higher power
|
2094-BM05-S
|
25
|
49
|
11 kW
|
Requires 75 mm width & longer rail
|
|
230 V system
|
2094-AM03-S
|
15
|
30
|
3-5 kW 200 V
|
Same mechanics, different voltage class
|
All B/C series support Peak-Enhance—activate 250 % peak with one click in Logix Designer.
20 years of Allen-Bradley motion know-how — packing 30 A into a 50 mm slice.
